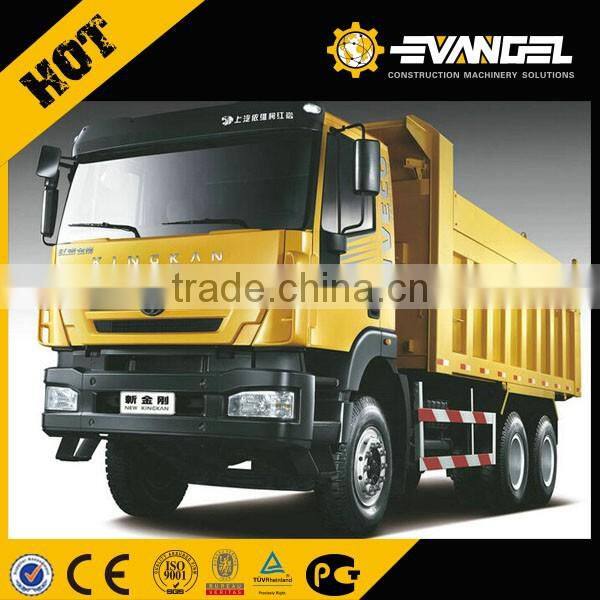

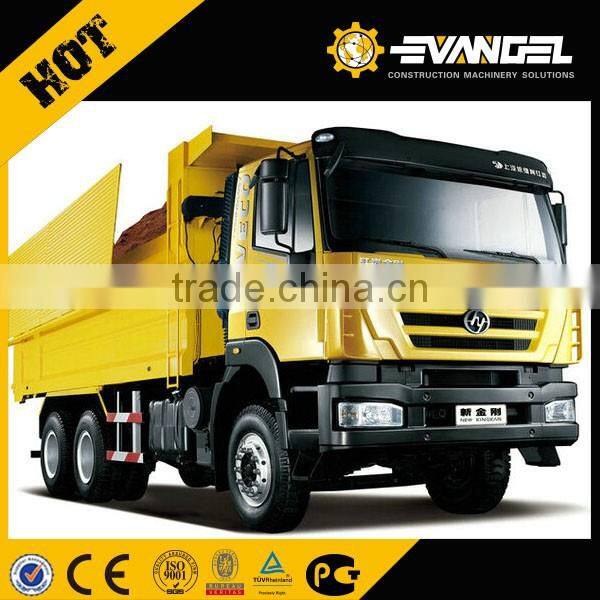

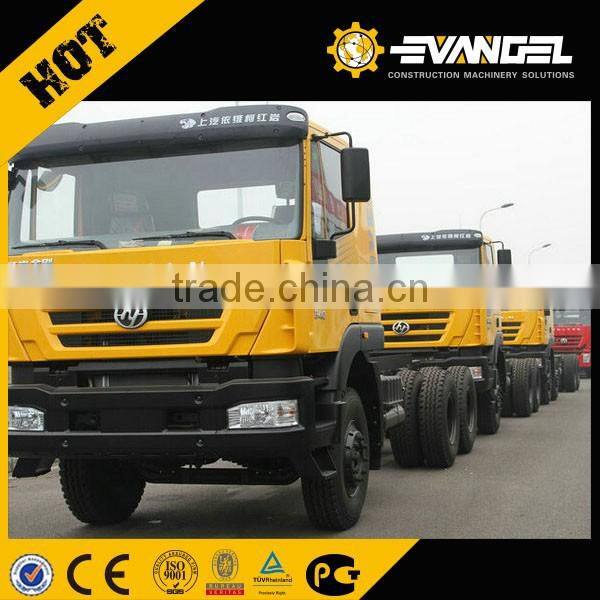

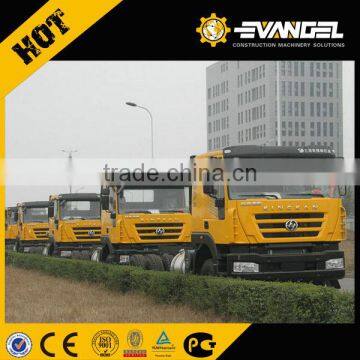

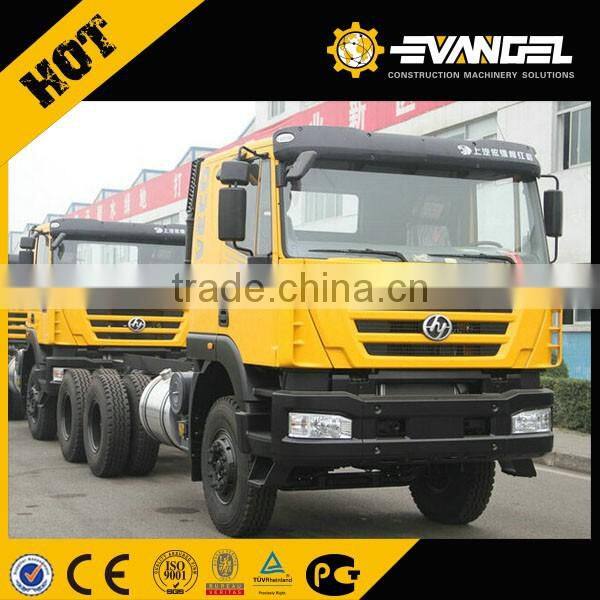

IVECO 430hp 50T Capacity Dump Tipper Iveco Tipper Truck Hongyan

IVECO 430hp 50T Capacity Dump Tipper Iveco Tipper Truck Hongyan

Brand

IVECO-HONGYAN

Model

KS1254Q

Model year

2015

SIZE L*W*H

9573×2560×3090 mm(main truck)

AXEL DISTANCE

4325+1350mm

ENGINE

 Manufacturer: saic IVECO

Engine model: IVECO CURSOR9,EUR3

emission standard, BOSCH oil pump

4 stroke direct injection diesel engine

6cylinder in-line with water cooling,

MAX output:380hp(280kw)at 2100 rpm according to DIN

Bore*stroke:117mm*135mm

Displacement:8.709LCompression ratio:15.9:1

Engine oil filling quantity:23L

Cooling system filling quantity(long term filling):40L

Thermostat opening temperature:80°C

Single-cylinder air compressor fan silicone oil

GEAR BOX MODEL

RT11509C

Fuller technology Faster:9gear gear box

CLUTCH

Single-plate dry diaphragm spring clutch, diameter 430(b)mm, hydraulically operating with air assistance

CABIN

Iveco low roof one bed

color : OPTIONAL

TIRE

12:00R20

AXEL

3

KERB MASS

12500kg

FRONT AXEL LOAD

6500KG

REAR AXEL LOAD

13000X2KG

REAR AXEL SPEED RATIO

4.8

STEERING

GERMAN ZF changeable speed ratio hydraulic boost imported steering

IVECO Dump Truck Tipper Dumpping 290-430hp Tipper Tuck

 engine

 CURSOR

 type

 iveco tractor truck , iveco dump tipper truck

 power

 290-430hp

 delivery
