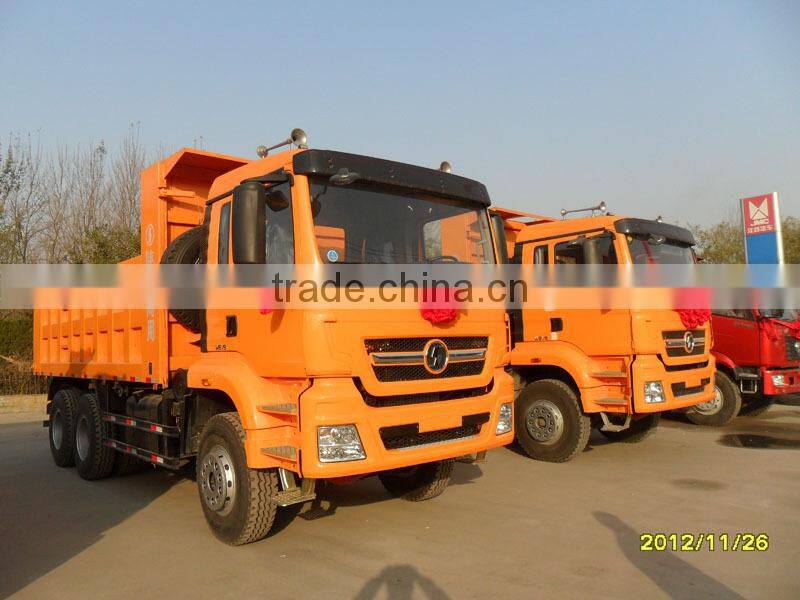

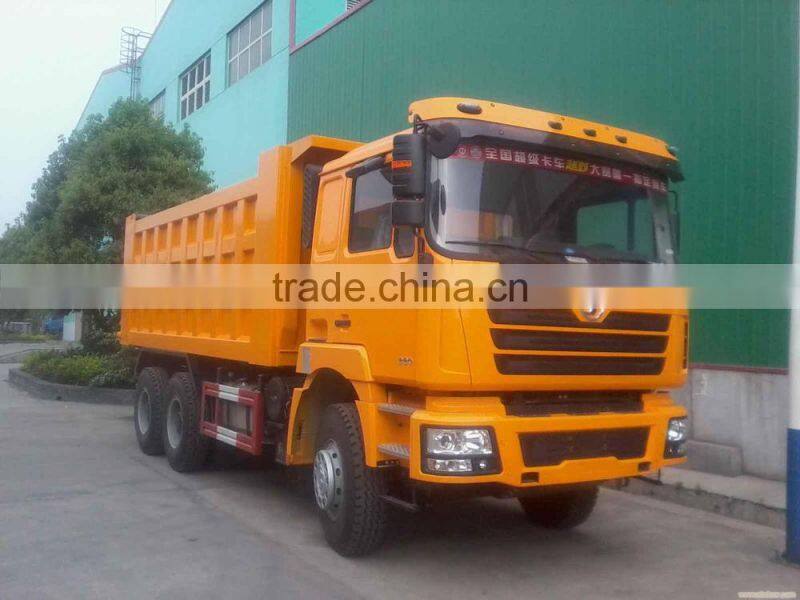

Shacman 6x4 10wheels Heavy Duty Dump Truck by Shacman Manufuture

Name: Shacman 6x4 10wheels Heavy Duty Dump Truck by Shacman Manufuture
Brand: SHACMAN
SKU: 140723550
Availability: InStock

Evangel Industrial (Shanghai) Co., Ltd.

US$ 35,000 - 52,000 MOQ: 1 Unit

Key Specifications

Drive Wheel:

6x4

Capacity (Load):

21 - 30t

Horsepower:

351 - 450hp

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 6x4

Capacity (Load) 21 - 30t

Horsepower 351 - 450hp

Condition New

Transmission Type Automatic

Emission Standard Euro 2

Fuel Type Diesel

Gross Vehicle Weight 25

Place of Origin Shaanxi, China

Brand Name SHACMAN

Model Number SX3254JT384

Dimensions (L x W x H) (mm) 8214x2496x3386, 8550x2490x3450

Shacman 6x4 10wheels heavy duty dump truck by shacman manufutureump truck sale

1. All the trucks will be made antirust before shipment

2. Different shipping method for different port, Ro-Ro Vessel, Bulk Vessel, Flat-Rack, Container, etc
3. Shipment tracking

shacman dump / Dump Truck / 6x4 Dump Truck

Model:	SX3255DR384
Traction type:	6×4
Driving type:	LHD (RHD is optioned)
Cabin:	F3000 middle length Cabin, one sleeper, air conditioning, double doors, tippable; Sun protection on cabin, Radio player(with USB link), Electric glass lifter
Engine brand:	WEICHAI
Engine model:	WP10.336N 336hp EURIII
Engine type:	Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter cooling
Displacement:	9.726 liters
Max. Output:	336hp@1900rpm
Max torque:	1500NM@1350-1500rpm
Bore/Stroke (mm):	126/130
Compression ratio:	17:01
Specific fuel consumption:	195g/Kwh
Gear box:	Fuller 10 Speeds (10JSD140)
Clutch:	430 diaphragm type
Steering:	ZF technology
Front axle:	7.5t MAN technology front axle
Rear axle:	16t MAN, ratio:5.92(double reduction driving axle, inter-wheel differential and differential lock)
Tyre:	12.00R20 (Option 12.00-20 -USD670)
Fuel tank capacity (L):	300
Max. Speed (km/h):	77
Kerb. Mass:	12500kg
Total mass:	25000kg
Wheel base (mm):	3800+1350
Front overhang (mm):	1525
Rear overhang (mm):	1654
Front track (mm):	1939
Rear track (mm):	1860
Approach angle:	28 degree
Departure angle:	30 degree
Dimension (mm):	8550x2490x3450
Body Capacity:	19.32m3
Inner size(mm):	5600x2300x1500
Thickness of body:	floor 8mm; front 6mm,side & back 4mm (steel)
Tipping type:	Middle tipping type. If option Front tipping type +USD810
