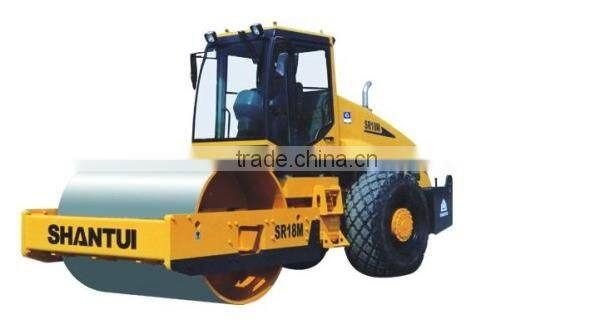

18t Shantui single drum road roller SR18 with cheap price
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
- China hydraulic vibrating road roller compactor machine
- Volvo Vibration Roller DD146HF
- Many small rollers sell cheap and durable second-hand vibrating rollers
- Cheap and fine used XCMG Dynapac, Ingeresoll, BOMAG, HAMM rollers for sale
- Used Shantui, Dynapac, Ingeresoll, HAMM, KOTAI, BOMAG rollers with good performance for sale
- The used XCMG, SANY, Changlin, Shantui, rollers with excellent control performance is for sale
Product Details
Condition: | New | Type: | Single Drum Roller | Static Linear Pressure: | 322N/CM |
Travel Speed: | 0-10KM/H | Grade Ability: | 30% | Place of Origin: | Jiangsu, China |
Brand Name: | shantui | Model Number: | SR18 | Power(W): | 12KW |
Dimension(L*W*H): | 6010x2350x3160mm | Weight: | 18t | Certification: | ISO |
After-sales Service Provided: | Overseas service center available |
Product Description
18t Shantui single drum road roller SR18 with cheap price
Main Features:
1. Power system: Cums extra-pressure diesel engine, huge coefficient of power reserve, suited for the operating condition above 4000 meters altitude.
2. Total hydraulic, single drive, frequency and radiation conversion, articulated steering, advanced stepless speed changes, block the oil supply to brake the vehicle, safe and reliable.
3. Streamline outline, circular windshield glass and curvy hood form a unique style.
4. Hydraulic parts made by American manufacturer SAUER or Germany REXROTH.
Main Technical Parameters:
ITEM | SR18 | ||
---|---|---|---|
Weights | Operating weight(Kg) | 18050 | |
Axle load,drum(Kg) | 11350 | ||
Axle load,wheel(Kg) | 6700 | ||
Static linear load,(at drum)(N/cm) | 530 | ||
Drum and Tires | Max.Working width(mm) | 2140 | |
Drum diameter(mm) | 1550 | ||
Drum shell thickness(mm) | 40 | ||
Number of padfeet | - | ||
Height of the padfoot(mm) | - | ||
Tire size | 23.1-26-12PR | ||
Vibratory System | Frequency,(HZ) | - | |
High amplitude | 29 | ||
Low amplitude | 33 | ||
Nominal amplitude(mm) | - | ||
High | 1.8 | ||
Low | 0.95 | ||
Centrifugal force(KN) | - | ||
Maximum | 310 | ||
Minumum | 215 | ||
Drive Train | Forward speed(km/h) | Ⅰ | 0-5.6 |
Ⅱ | 0-7.1 | ||
Ⅲ | 0-8.7 | ||
IV | 0-13.5 | ||
Reverse speed(km/h) | Ⅰ | 0-5.6 | |
Ⅱ | 0-7.1 | ||
Ⅲ | 0-8.7 | ||
IV | 0-13.5 | ||
Max. Climbing ability(%) | 45 | ||
Drive system | Hydrostatic | ||
Batteries | - | ||
Brakes | Service brake | Hydrostatic | |
Parking brake | spring-loaded/mechanical | ||
Steering | Steering system | Oscillatiing, articulating | |
Steering method | Hydrostatic | ||
Steering angle(Grad) | ±36° | ||
Oscillating angle(Grad) | ±12° | ||
Machine Dimensions | Overall length(mm) | 6093 | |
Overall width(mm) | 2450 | ||
Overall height(mm) | 3232 | ||
Miscellaneous | Min. Turning radius(mm) | 5800 | |
Fuel capacity(L) | 350 |
Photos of 18t Shantui single drum road roller SR18 with cheap price
