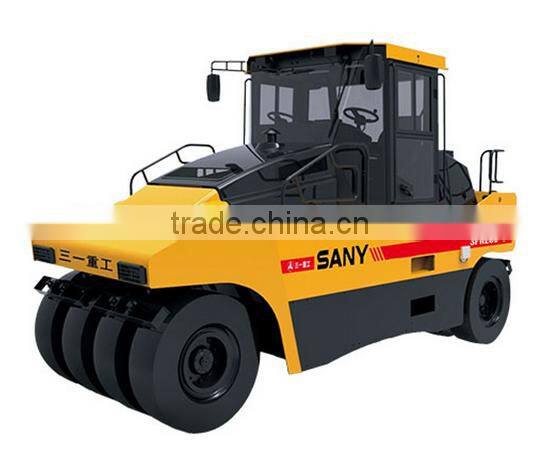

Sany 15-26 Ton Pneumatic Vibratory Roller SPR260

Sany 15-26 Ton Pneumatic Vibratory Roller SPR260 photo-1
Sany 15-26 Ton Pneumatic Vibratory Roller SPR260 photo-2
Sany 15-26 Ton Pneumatic Vibratory Roller SPR260 photo-3
Sany 15-26 Ton Pneumatic Vibratory Roller SPR260 photo-4
Sany 15-26 Ton Pneumatic Vibratory Roller SPR260 photo-5
Sany 15-26 Ton Pneumatic Vibratory Roller SPR260 photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Single Drum Roller
Static Linear Pressure:
40~70kN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Single Drum Roller
Static Linear Pressure 40~70kN
Travel Speed 0-10KM/H
Grade Ability 30%
Place of Origin Henan, China
Brand Name SANY
Model Number SPR260
Power(W) 75kw
Dimension(L*W*H) 4558*1840*2830mm
Weight 26 ton
Certification ISO
After-sales Service Provided Overseas service center available



Sany 15-26 ton pneumatic vibratory roller SPR260

Sany SPR260C-6 pneumatic tyre roller's hydraulic all-wheel braking is engaged upon engine or transmission failure. The braking distance of the 260hp pneumatic tyre roller is 50% less than similar equipment.

Automatic Oil-spraying Technology

Pneumatic powered automatic oil-spraying prevents asphalt from sticking to the tires

Two minute suction refill of oil tank eliminates the manual refilling

Eliminates the safety hazard of manually applying oil

Full Hydraulic Drive System

Continuously variable drive system provides smooth starting and stopping

Controls are easy to learn and easy to operate

Automatic Inflation System

Tire pressure is adjustable from within the cab

Even and consistent air pressure ensures compaction quality

Air pressure is maintained even when a tire has a slow leak

Hydraulic Brake System

Hydraulic all-wheel braking is engaged upon engine or transmission failure

Braking distance is 50% less than similar equipment

Transaxle brake is applied when the equipment stops without the need for hand brake



Main   Technical   Parameters:

Max.operating weight
26000 kg
Min.operating weight
11000 kg

Ground pressure
200~520 Kpa
Single tire load
2.89 t
Tire inflation pressure
200~800 Kpa
Compation width
2368 mm
Tire overlapping
63 mm

Working speed
0~6.4 / 0~9.8 km/h
Travel speed
0~14.4 km/h
Theoretical gradeability
25 %
Ground clearance
380 mm
Wheelbase
4170 mm
Steering angle
30°
Swing distance
50 mm
Min. turning outside diameter
19000 mm

Model
Cummins QSB5.9-C180
Emissions
Tier III
Rated power
132 kW

Battery
24V×120Ah
Water tank
500 L
Fuel tank
200 L
Hydraulic oil tank
100 L













Sany 15-26 ton pneumatic vibratory roller SPR260
