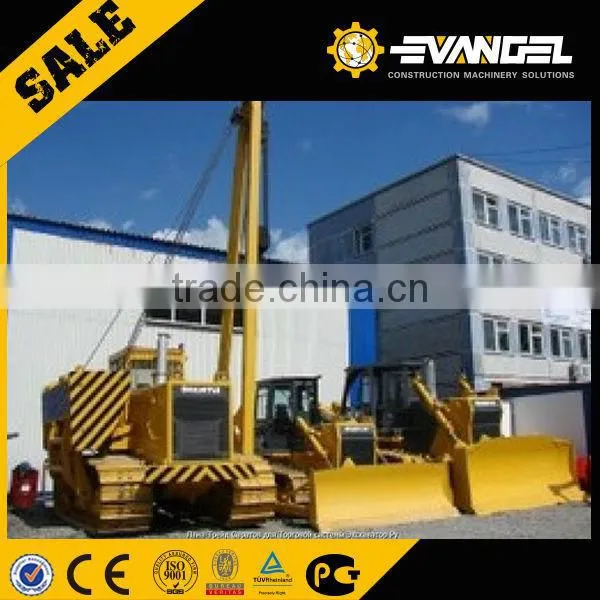

Chinese 70 tons pipe layer SHANTUI SP70Y
oil pipe layer sell factory good price email:martin at
Pipe layer Shantui sell mobile:+86-18202126581
The SP70Y pipe layer is equipped with advanced international technology to provide load feedback and prevent overloading while working on pipe laying projects. With a hydraulic pilot control system, the operations of working devices such as the hook and lifting arm are integrated into a single lever, which is capable of precise, sensitive performance. The machine has been designed to specially measure operating functions in order to prevent overturning or rolling over.
Engine | NTA855-C360S10 | |
Rated power | kW/rpm | 235/2000 |
Ma×imum lifting weight | t | 70 |
Operating weight | kg | 47500 |
L×W×H | mm | 5560×3700×3395 |
Minimum turning radius | mm | 3950 |
Track gauge | mm | 2380 |
Ground length | - | 3620 |
Track shoe width | mm | 760 |
Ground pressure | MPa | 0.086 |
Ma×imum lifting height | mm | 6550 |
Boom swing amplitude | m | 1.2–7.2 |
Hook speed | m/min | 0–6.0 |
Boom length | m | 7.3(9.0 Optional) |
