Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Concrete Machinery > SANY SR150C Full Hydraulic Rotary Drilling Rig Machine for Hot Sale

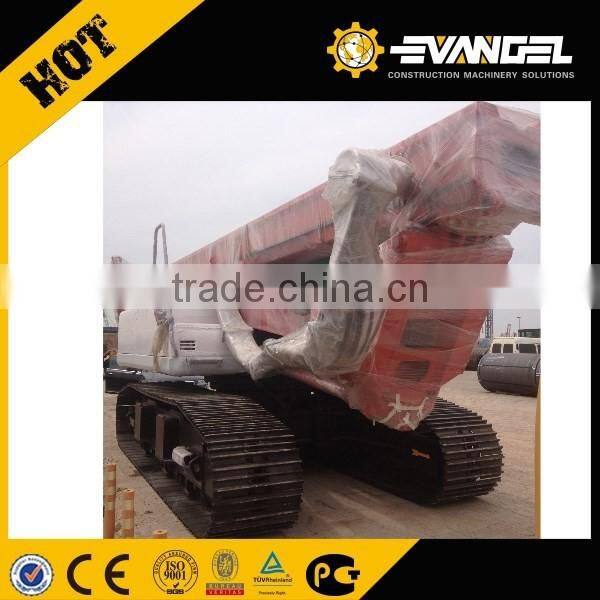

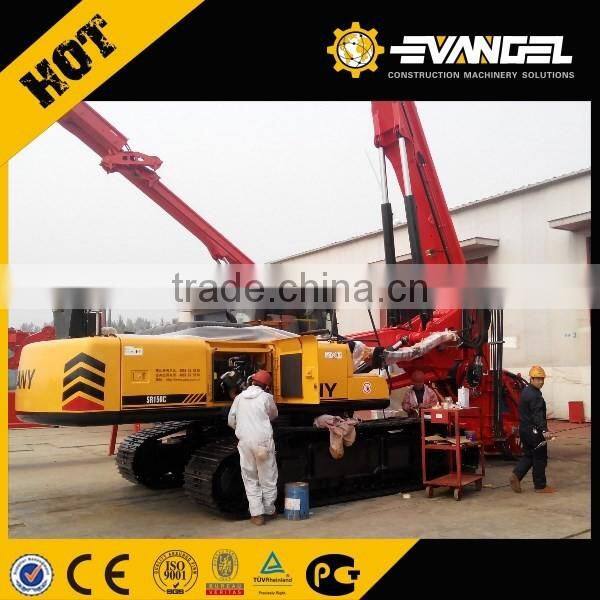

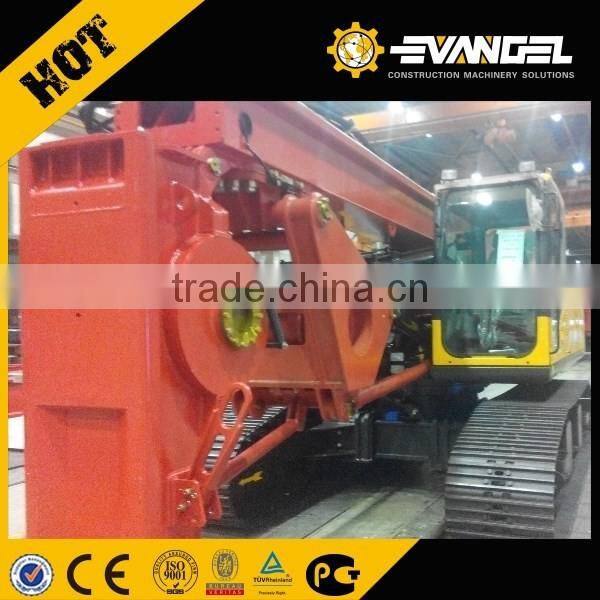

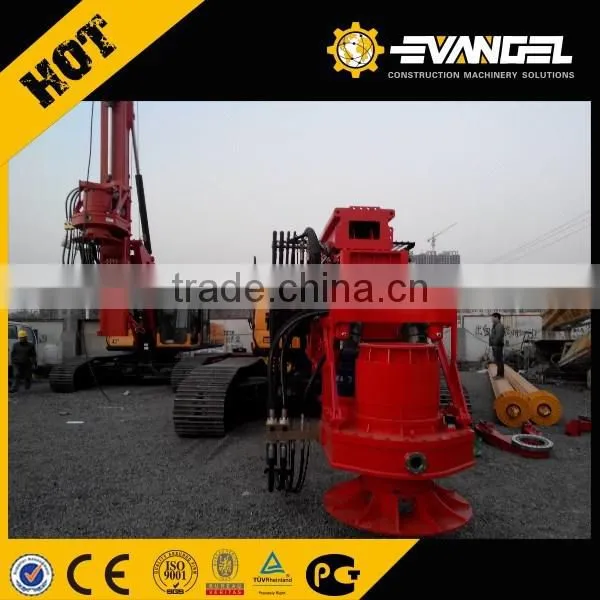

SANY SR150C Full Hydraulic Rotary Drilling Rig Machine for Hot Sale
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SANY
Model Number:
SR150C
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SANY SR180M Hydraulic Crawler Portable Rotary Drilling Rig Machine With CE CertificationNegotiableMOQ: 1 Set -
SANY SR200C 62ton Crawler Rotary Drilling Rig Machine With CE CertificationNegotiableMOQ: 1 Unit
-
SANY SR250 74ton 54m Depth Crawler Hydraulic Rotary Drilling Rig With ISO CertificationNegotiableMOQ: 1 Unit
-
SANY SR285RC8 98 Ton 57m Crawler Rocking Rotary Drilling Rig MachineNegotiableMOQ: 1 Unit
-
SANY SR360III 120 Ton Crawler Hydraulic Rocking Rotary Drilling Rig With CE CertificationNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
SANY
Model Number
SR150C
After-sales Service Provided
Engineers available to service machinery overseas
SANY SR150C Full Hydraulic Rotary Drilling Rig Machine for Hot Sale
Feasures
Sany rotary drilling rig SR150C
It is economical and efficient, mainly used in media and small-diameter pile civil construction;
Diesel engine has load induction and output power auto-control; the fuel consumption drops 5-10%;
5-level anti-vibration technology absorbs drilling vibrational frequency all-directionally to guarantee high stability;
The special lubricating system makes sure that it can work under high-temperature environment;
The removable and symmetrical structure design doubles the service life of rotary drive key;
Crowd cylinder has two operation modes-normal lifting and fast lifting to improve push efficiency;
Mast verticality auto-adjusting technology promises the pile accuracy.
Parameters
| Main performances | Unit | Parameters |
| Overall height | mm | 18,432 |
| Operating weight | t | 46 |
| Max. pile diameter | mm | 1,500 |
| Max. pile depth(friction Kelly/inter-locking Kelly) | m | 56/44 |
| Rotary Drive | ||
| Max. output torque | kN.m | 150 |
| Speed of rotation | rpm | 6.5~40 |
| Crowd system | ||
| Crowd force | kN | 160 |
| Line pull | kN | 160 |
| Stroke | mm | 4,250 |
| Main winch | ||
| Line pull(1st layer) | kN | 160 |
| Rope diameter | mm | 28 |
| Max. line speed | m/min | 70 |
| Auxiliary winch | ||
| Line pull(1st layer) | kN | 60 |
| Rope diameter | mm | 14 |
| Max. line speed | m/min | 60 |
| Mast inclination | ||
| Forward | ° | 5 |
| Lateral | ° | ±5 |
