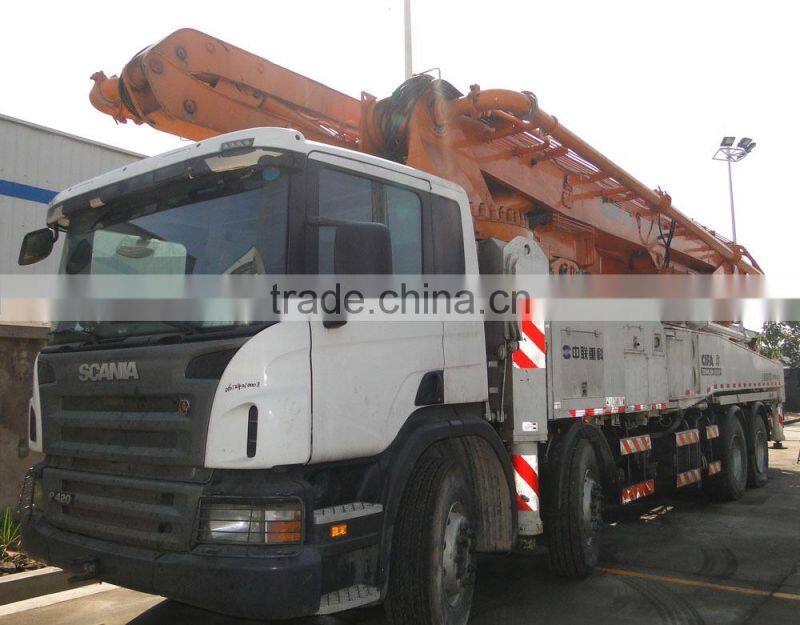

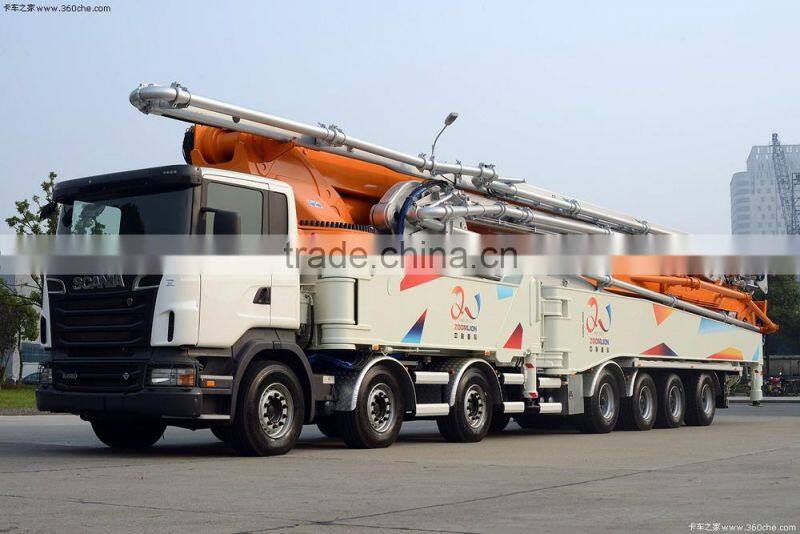

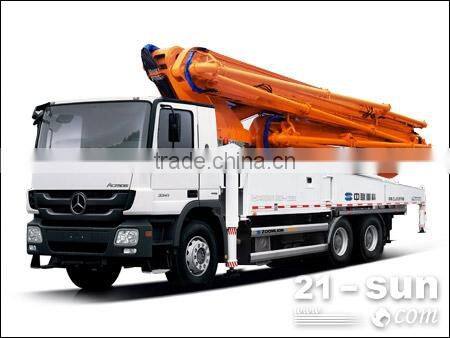

ZOOMLION 22m CONCRETE PUMP for sale
•
Model | ZLJ5160THB 22H-3Z | |||
Pumping system | Max. Theor. output(high/low pressure) | m3/h | 60/100 | |
Max. Theor. concrete output Pressure(high/low pressure) | MPa | 12/8 | ||
Rated working pressure | MPa | 35 | ||
Pumping frequency(high/low pressure) | min-1 | 14/23 | ||
Hopper capacity | L | 550 | ||
Filling height | mm | 1540 | ||
Hydraulic system type |
| Open loop | ||
Distribution valve |
| valve | ||
Oil cylinder dia.×stroke | m | φ140×1700 | ||
Concrete cylinder dia.×stroke | mm | φ230×1700 | ||
Hydraulic oil cooling |
| Air cooling | ||
Recommended concrete slump | cm | 12~23 | ||
Max. aggregate dimension | mm | 40 | ||
Placing boom | Structure type |
| 22H-3Z | |
Placing depth | m | 21.6 | ||
Horizontal distance | m | 18.2 | ||
Placing depth | m | 11.5 | ||
Slewing angle |
| 365° | ||
Boom number |
| 3 | ||
The length of boom section | mm | 6900/5700/5600 | ||
Sections folding angle |
| 90°/180°/250° | ||
Pipe diameter | mm | 125 | ||
End hose length | mm | 3000 | ||
Min. height of opening placing boom | mm | 8000 | ||
Outriggers span (front×rear×side) | mm | 3500×2290×5300 | ||
