SANY SYG5418THB C8 Series Truck Mounted Concrete Pump 56m

Benefits & features

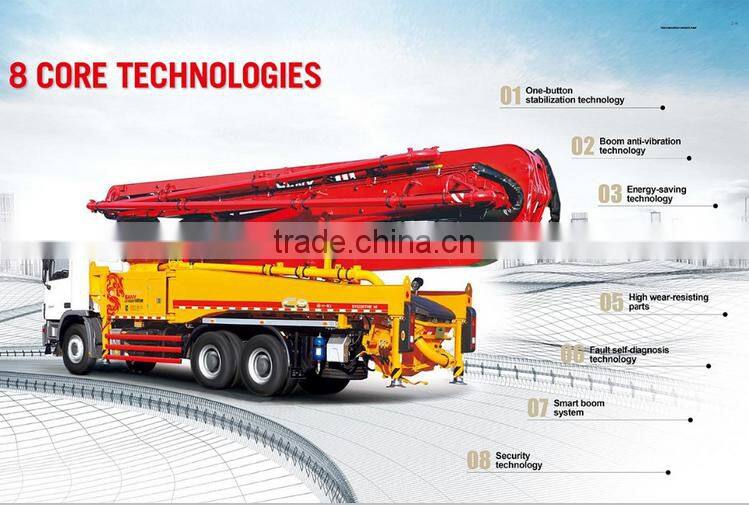

 SANY SYG5418THB  C8 Series Truck Mounted Concrete Pump 56m One button stabilization technology

No matter how much vibration the boom incurs after being moved, only one button can make the boom stop steadily and immediately. Meanwhile, the terminal hose will exercise

quick and precise positioning.

 SANY SYG5418THB  C8 Series Truck Mounted Concrete Pump 56m Boom anti-vibration technology

Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.

 SANY SYG5418THB   C8 Series Truck Mounted Concrete Pump 56m Anti-swing control technology

Adopt the brand-new rotary braking technology, and the boom’s rotary swing amplitude decreases by 60%, which helps realize unprecedented precise braking.

 SANY SYG5418THB  C8 Series Truck Mounted Concrete Pump 56m Energy-saving technology

With reversing times hitting 29 times/minute (when the system pressure is 12MPa). Pumping efficiency, an increase of up to 25%, and fuel consumption, a decline of up to 10%.

SANY SYG5418THB  C8 Series Truck Mounted Concrete Pump 56m Energy-saving technology High wear-resisting parts

Greatly improve the performance, create more values for you.

Delivery pipe
Straight tube, hinged elbow, and, large elbow, and small elbow all adopt the double-layer compound structure. Inner layer is extremely wear resistant, with service life hitting 50,000 m 3.
Discharge port / transition bushing
Adopt the double-layer compound structure, of which, the inner bushingis made of special steel whose wear resistance is 15 times that of ordinary steel, with service life hitting 60,000 to 80,000 m 3.
Concrete piston
Ttakes rubber as the substrate, and on its exterior layer there is compound wear-resisting fabric, which is extremely resistant to pressure, heat, and abrasion, and applicable to different severe working conditions, with service life hitting 25,000 to 30,000 m 3 .
Wear plate/cutting ring
Adopt special inlaying process, with connecting strength surpassing 100MPa. Of which, the wear plate’s service life is up to 50,000 to 60,000 m 3 , and the cutting ring’s service life hits 20,000 to 30,000 m 3 .
Delivery cylinder
The inner layer is plated with chrome with thickness of above 0.3mm, and so its hardness exceeds HV900, with service life hitting 100,000 to 140,000 m 3 .

SANY SYG5271THB C8 Series Truck Mounted Concrete Pump 56m Fault self-diagnosis technology

 Monitor the equipment status at any time, and monitor and diagnose more than 200 faults in real time, shorten the troubleshooting time by 70%, and save the time and trouble for you.

SANY SYG5418THB  C8 Series Truck Mounted Concrete Pump 56m Smart boom system

 People-oriented intelligence and sophisticated technology make the truck-mounted concrete pump operation more human-centric and convenient.

One-button boom extension and retraction
One-button extendable arm pushes upwards or downwards the automatic arm switch to extend or retractthe boom automatically.
Limit the operation height
In the event of indoor construction or outdoor construction with upper obstacle, this function can effectively prevent the boom from touching the top and suffering damage.
Locate the boom posture
Easily locate the first and second section’s position, and greatly simplify the boom operation.

SANY SYG5418THB  C8 Series Truck Mounted Concrete Pump 56m Security technology

C8 Series Truck-mounted Concrete Pump perfectly construes the precise and rigorous manufacturing philosophy and uncompromising safety standard.

Boom overload protection technology
Safety valve device is additionally mounted in the boom cylinder balance valve. In the event of excessive boom load, overload oil pressure will be automatically released, in order to prevent the boom from suffering damage.
Hopper sifter linkage protection technology
When the hopper screen is opened, the operating device in the hopper will automatically stop, so as to ensure the operation safety.
Hydraulic oil level automatic inspection and protection technology
Monitor the hydraulic oil’s reserve in real time. In the event of insufficient oil volume, alarm will beautomatically sent or pumping will be stopped, as a way to prevent the hydraulic system from suffering damage.

 Specification of  SANY SYG5418THB C8 Series Truck Mounted Concrete Pump 56m
