HOWO 6x4 Chassis 336hp 56m Concrete Pump Truck for Sale

Evangel Industrial (Shanghai) Co., Ltd.

US$ 258,000 - 365,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Power Type:

Diesel

Model Number:

HB56

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Power Type Diesel

Model Number HB56

Power(W) 324kw

Weight 49750kg

Dimension(L*W*H) 14885*2500*3990mm

Certification CE,ISO,GOST

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

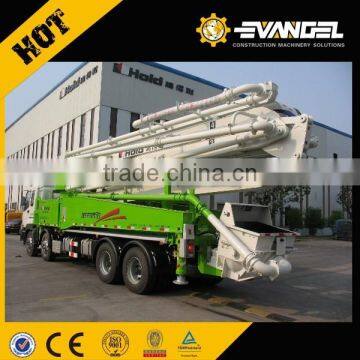

HOWO 6x4 chassis 336hp 56m concrete pump truck for sale


Engine	Model		D13
	Output power	kw/(r/min)	324/1400~1800
	Max. torque	N.m/(r/min)	2200/1050~1400
	Displacement	l	12.8
	Emission Standard		Nation III GBⅢ
Others	Dimension (Length×Width×Height)	mm	14885×2500×3990
	Total vehicle weight	kg	49750
	Fuel tank capacity	l	410
	Fuel consumption per 100km	l/100km	50
Pumping operation
Pumping system	Theoretical output(high pressure/low pressure)	m³/h	100/163
	Concrete pumping pressure(high pressure/low pressure)	Mpa	13/8
	Theoretical pumping times(high pressure/low pressure)	times/min	13/21
	Max. diameter of pumping concrete aggregate		40
	Feeding height		1530
Placing boom	Pumping slump range		12-23
	Reach height		55.7
	Reach depth		44
	Slewing radius		51.7
	Slewing angle		364
	1st boom stretch angle		96
	2nd boom stretch angle		180
	3rd boom stretch angle		180
	4th boom stretch angle		180
	5th boom stretch angle		260
	Outrigger span	Overall outrigger span	11250±50
		Front outrigger transverse span	11400±50
		Rear outrigger transverse span	11300±50
Others	Dosing type		S valve
	Lubricating method		Automatic lubrication
	Controlling method		Manual/remote control
	Water tank capacity		700
	Max. pressure of water pump		2
