SYG5418THB 53m Truck-mounted Concrete Pump SANY New

SYG5418THB 53m Truck-mounted Concrete Pump SANY new

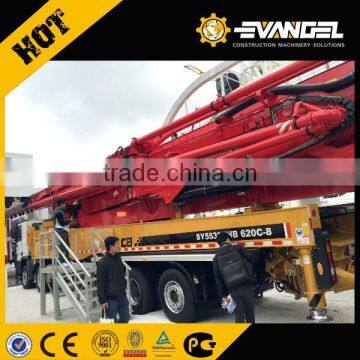

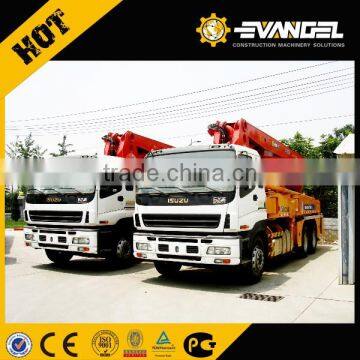

Sany SYG5530THB 53 truck-mounted concrete pump has 53m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 53m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.

One Button Stabilization Technology

The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.

Boom Anti Vibration Technology

The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.

Energy Saving Technology

With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.

Anti Overswing Technology

By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%

Fault Self Diagnostic Technology

Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.

Smart Boom System

• One Button Boom Extend/Retract

Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.

• Coordinated Section Operation

The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections

Safety Technology

• Boom Overload Protection Technology

Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.

• Hopper Screen Interlock Technology

As an operator protection measure, the pump will automatically stop when the hopper screen is opened.

• Hydraulic Oil Level Monitoring

The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.
