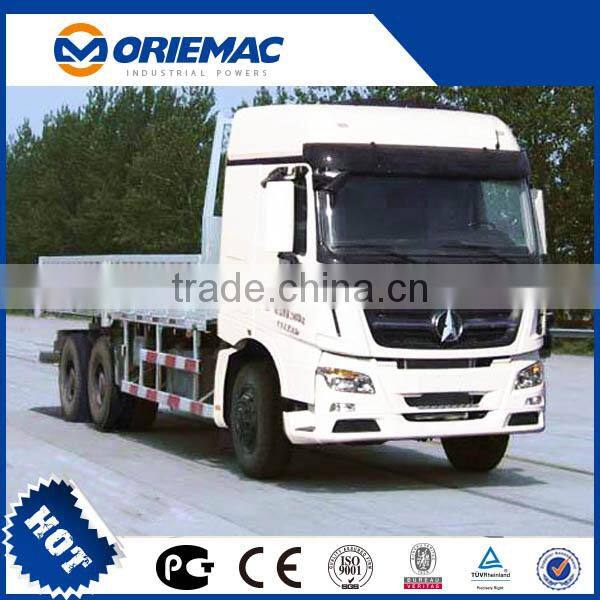

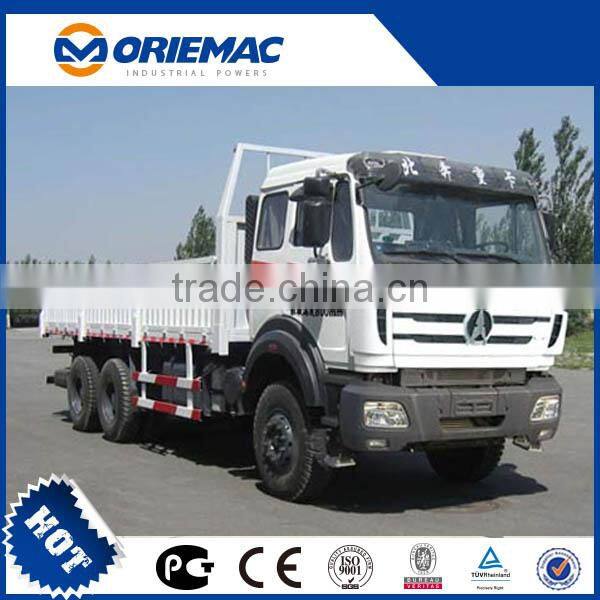

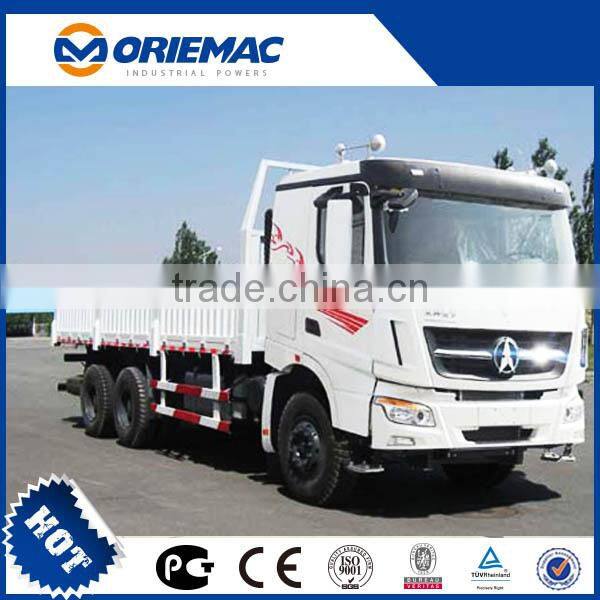

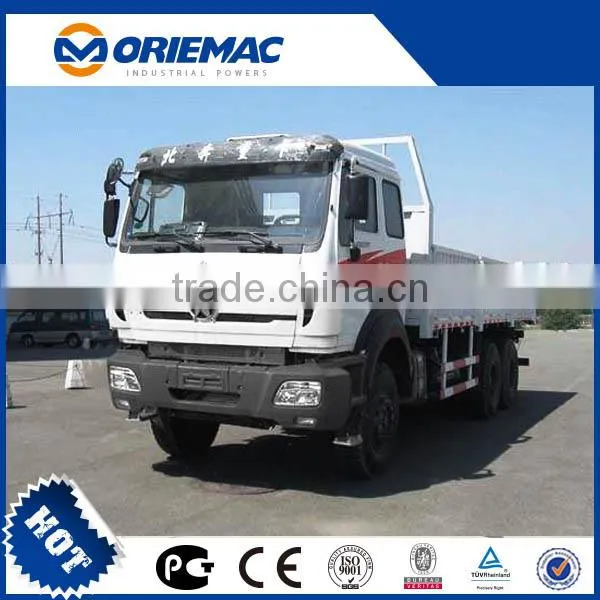

Beiben Cargo Truck ND11601A48J Dump Truck Price

Name: Beiben Cargo Truck ND11601A48J Dump Truck Price
Brand: Beiben
SKU: 140721586
Availability: InStock

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

US$ 15,000 - 50,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Capacity (Load):

21 - 30t

Drive Wheel:

6x2

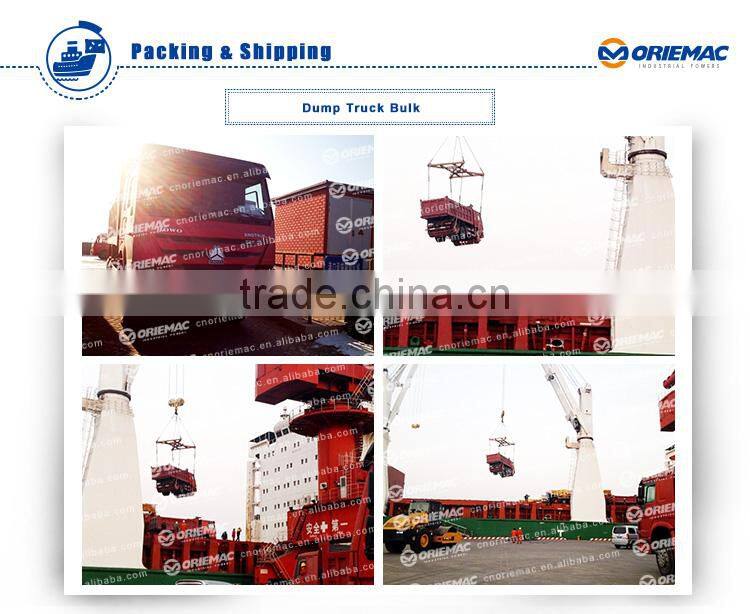

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 21 - 30t

Drive Wheel 6x2

Horsepower 251 - 350hp

Transmission Type Automatic

Fuel Type Diesel

Size 8826x2500x3140mm

Gross Vehicle Weight 12870

Place of Origin Inner Mongolia, China

Brand Name Beiben

Model Number ND11601A48J

Beiben Cargo Truck ND11601A48J dump truck Price

Product Description

Driving type					6x2
Dimension(Lx W x H)(unloaded)					8826x2500x3140
Approaching angle/Departure angle(°)					26/22
Overhang(front/rear) (mm)					1410/2616
Wheel base (mm)					4800
Max speed (km/h)					90
Curb weight (kg)					7960
Loading capacity (kg)					15000
Engine Styr technology, made in China	Model ( WP10.290NE31 )				WEICHAI Diesel engine,water-cooled,four strokes,6 cylinders in line,turb ocharged, directly injection
	Displacement (L)				9.726/Diesel
	Bore X stroke (mm)				126/130
	Max power (kw/rpm)				247/2200
	Max torque (Nm/rpm)				1500/1200-1500
	Emission				EURO III
Fuel tanker (L)				300
Clutch	Model		Single dry frictional disc,Hydraulic boosting
Gearbox	Model		9JS135, mechanism,9gears, 1reverse gear, manual, synchronization
Brake system	Service brake		Brake gap can be adjusted automatically, double circulation air brake system
	Assistant brake		Engine exhaust brake
	Park brake		Potential springs pressing on middle and rear wheels
Steering system	Model		TAS85,whole circulation in ball, hydraulic booster
Frame	Fish belly, shape, variable width, variable sections, side beam structure
Front axle	Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle	Double-shoe pneumatic brake, casting, double reduction driving axle
Tyre	12.00-20
Electrical system	Battery	2X12V/135Ah
	Generator	28V-35A
	Starter	5.4Kw/24V
Cab	NG80 Full steel skeleton structure, cove red with double layer steel plate; Can be tipped forward
