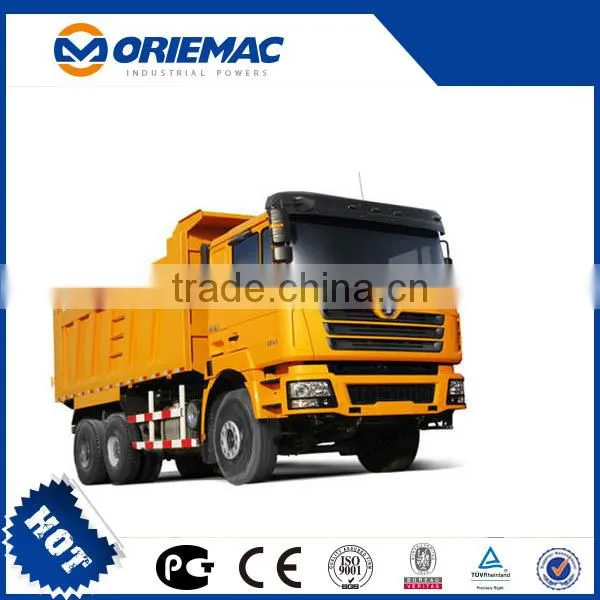

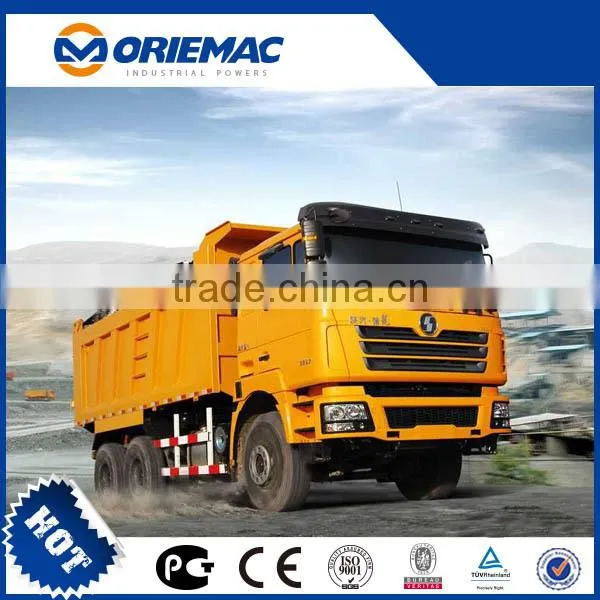

SHACMAN Dump Truck 16 Cubic Meter 10 Wheel Dump Truck SX3315DT456TL1

Name: SHACMAN Dump Truck 16 Cubic Meter 10 Wheel Dump Truck SX3315DT456TL1
Brand: SHACMAN
SKU: 140721508
Availability: InStock

US$ 10,000 - 100,000 MOQ: 1 Unit

Key Specifications

Drive Wheel:

8x4

Capacity (Load):

31 - 40t

Horsepower:

251 - 350hp

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai tianjin qingdao

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 8x4

Capacity (Load) 31 - 40t

Horsepower 251 - 350hp

Condition New

Transmission Type Automatic

Emission Standard Euro 3

Fuel Type Diesel

Engine Capacity 6 - 8L

Gross Vehicle Weight 14600

Place of Origin Shanxi, China

Brand Name SHACMAN

Model Number SX3315DT456TL1

Dimensions (L x W x H) (mm) 9635x2490x3450

SHACMAN Dump Truck 16 cubic meter 10 wheel dump truck SX3315DT456TL1

Product Description

SHACMAN 8X4 DUMP TRUCK LHD DRIVE
Model:	SX3315DT456TL1 (31TONS)
Traction	8x4
Driving type	LHD (RHD is optional)
Cabin	SHACMAN, long flattened head (AC) with ONE BED
Vehicle Main Dimensions	L-W-H(mm)	11230,11335x2490×3450,3720
	Wheel base(mm)	1800+4500+1350
	Wheel track(front/rear)(mm)	Front track (mm): 1939,2036 Rear track (mm): 1860
	Approach/Departure angle(°)	28/20
	Overhang (front/rear)(mm)	1525/2000
	Tare Weight(kg)	14800
	Total mass(kg)	31000
Driving Speed(km/h)	88
Engine	Brand	WEICHAI
	Model	WP12NG380E40
	Emission	Euro III
	Engine type	Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & inter cooling
	Displacement	9.726 L /Diesel
	Max. output	340hp@2200rpm
	Max torque	1250NM@1400-1600rpm
	Bore/Stroke(mm)	126/130
GEAR BOX	Brand	FAST
	Model	9JS135
Clutch	Φ430 Diaphragm-spring
steering	ZF Technology from Germany
Tire	12.00R20 (rim: 8.5-20)
Fuel tank	300L Aluminum Tank
Front axle	6.5 TONS STR(steering axle)
Rear axle	16 TONS MAN(double Reduction driving axle, differential lock)
Spring	Heavy duty leaf Spring 13/13/12
Manufacture	SHANXI AUTOBOBILE GROUP CO.,LTD
Origin	P.R. CHINA
Body	Inner size(mm)		8300x2300x1000
	Thickness of body steel(mm)		floor 8 side & back 4
	Tipping type		HYVA front lifting type
