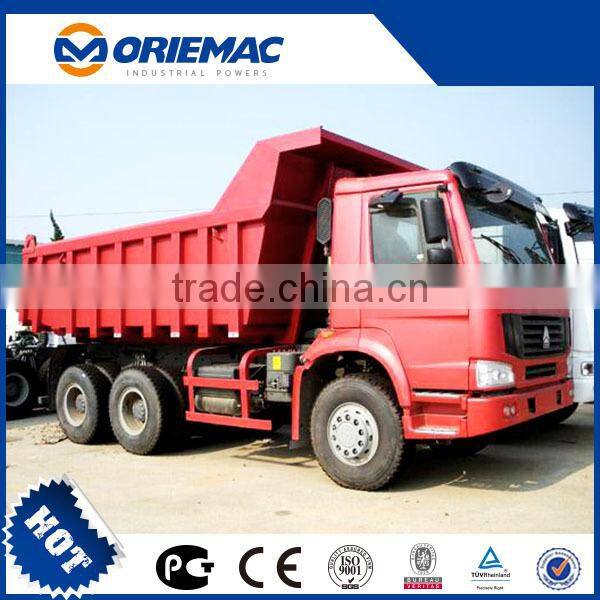

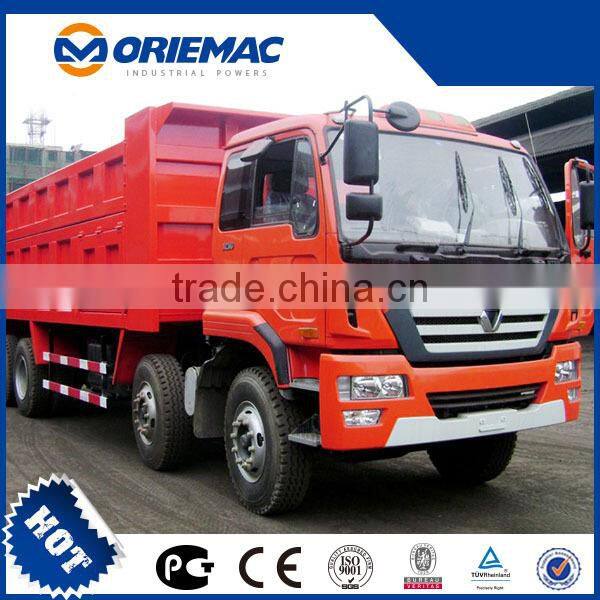

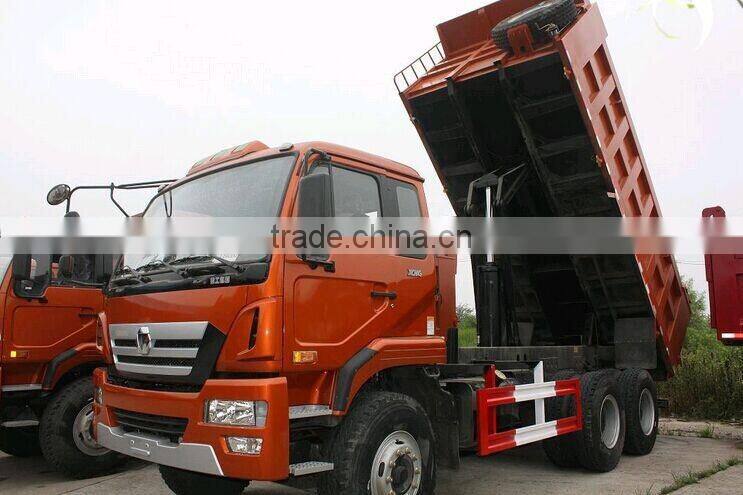

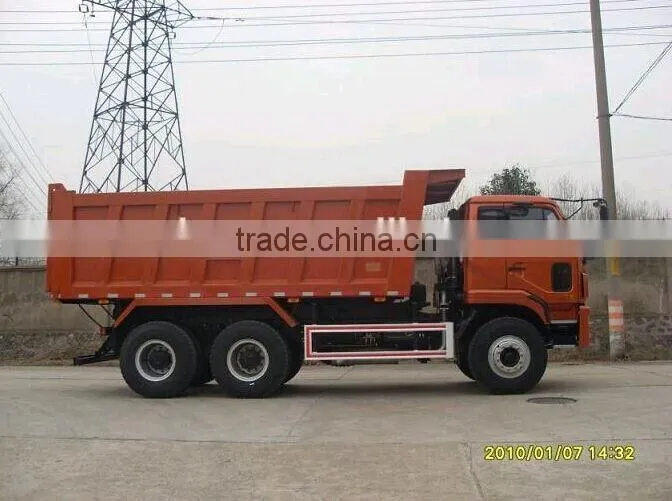

Heavy 21m3 8x4 Commercial Heavy dump Trucks
8*4 Dump Truck NXG3310D3ZEL
Powerful engine,reinforced axle, excellent performance
8x4 dump truck
The charateristics and advantages:
The lowest gravity center : The gravity center is 150-350mm lower than other present domestic dump trucks , it is the lowest gravity center dump truck at home .
The lightest self-weight :Comparing to the other domestic dump trucks with the same structures , its self-weight is the lightest.
Reformative body structure : The body is multilateral Ustructure with high rigidity. The rear hinge is 100-350mm wider than other domestic square bodys, and this structure can improve the lifting stability.
Model | NXG3310D3ZEL | NXG3310D3ZE | NXG3311D3ZEL | NXG3311D3AZE | ||
Drive type | 8×4 | |||||
Parameters | ||||||
Max.travel speed(km/h) | 80 | 80 | 80 | 80 | ||
Max.gradeability(%) | 20 | 20 | 20 | 20 | ||
Max.braking gradient(%) | 20 | 20 | 20 | 20 | ||
Min.turning diameter(m) | 23 | 23 | 23 | 23 | ||
Fuel Tank Capacity(L) | 240 | 240 | 240 | 240 | ||
Min.ground clearance [full load](mm) | 245 | 245 | 245 | 245 | ||
Electric system(v) | 24 | 24 | 24 | 24 | ||
Weight | ||||||
Curb weight(kg) | 14760 | 14780 | 14760 | 14780 | ||
Rated load(kg) | 16020 | 16040 | 16020 | 16040 | ||
Max.total weight(kg) | 30995 | 30995 | 30995 | 30995 | ||
Dimension | ||||||
Total length(mm) | 10510 10710 | 9510 9710 | 10510 10710 | 9510 9710 | ||
Total width(mm) | 2495 | 2495 | 2495 | 2495 | ||
Total height [no-load](mm) | 3300 | 3300 | 3300 | 3300 | ||
Wheel base(mm) | 1900+4100+1300 1900+4100+1350 | 1900+3450+1300 1900+3450+1350 | 1900+4100+1300 1900+4100+1350 | 1900+3450+1300 1900+3450+1350 | ||
Frame(mm) | 320 | 320 | 320 | 320 | ||
Leaf spring | 9/9/11 | 9/9/11 | 9/9/11 | 9/9/11 | ||
Main Parts | ||||||
Cab | Flat top | Flat top | Flat top | Flat top | ||
Engine | YC6A240-33 | YC6A240-33 | SC9DK240Q3B1 SC9DK270Q3B1 | SC9DK240Q3B1 SC9DK270Q3B1 | ||
Transmission | 9JS119 8JS125T | 9JS119 8JS125T | 8JS125T 8JS118 | 8JS125T 8JS118 | ||
Front Axle | 153 double | 153 double | 153 double | 153 double | ||
Rear Axle | 153 double | 153 double | 153 double | 153 double | ||
Tire | 10.00-20 11.00-20 10.00R20 11.00R20 | 10.00-20 11.00-20 10.00R20 11.00R20 | 10.00-20 11.00-20 10.00R20 11.00R20 | 10.00-20 11.00-20 10.00R20 11.00R20 | ||
Compartment dimension(inner)L×W×H(mm) | 7600,7800×2300 | 6500,6800×2300, | 7600,7800×2300, | 6500, | ||
Send Inquiry to This Supplier
