Popular sale Smarter 35ton telescopic boom Crawler Crane SMQ350A high quality

Specifications

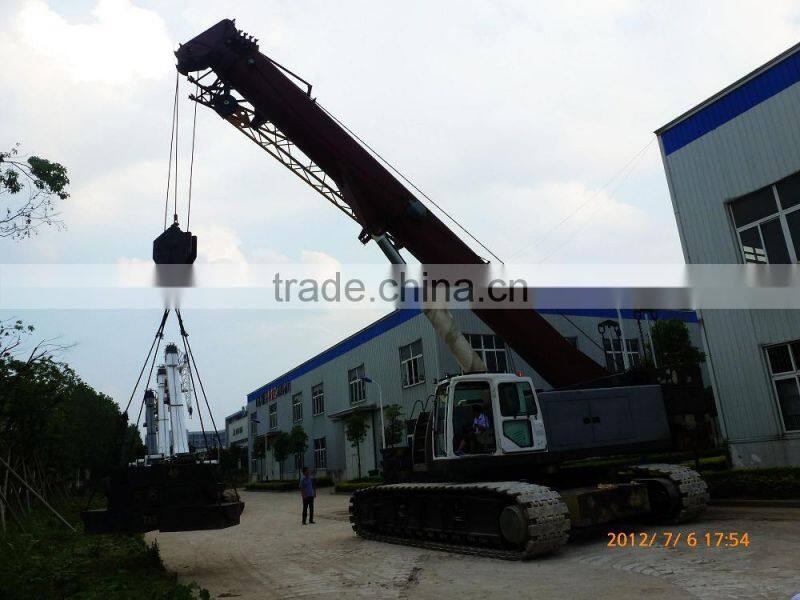

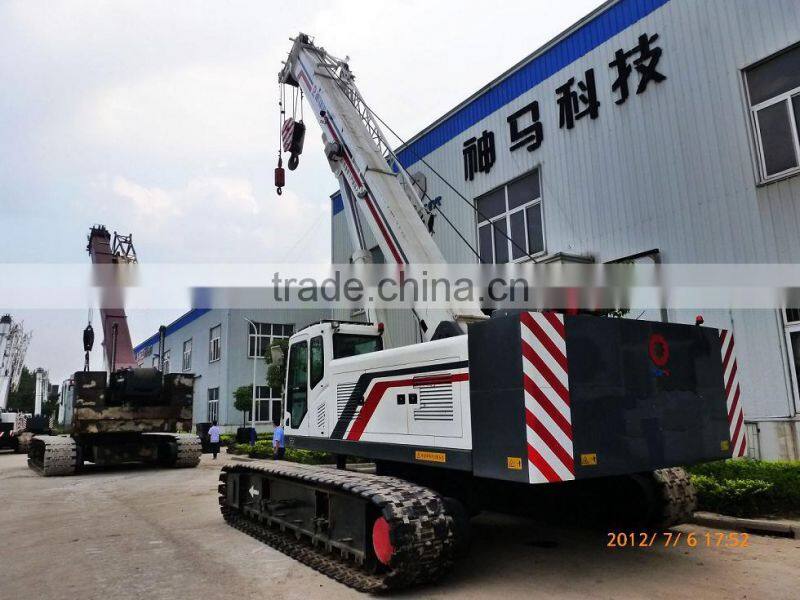

Smarter Telescopic Boom Crawler Crane SMQ350A
Max.lifting 35ton
Shangchai engine
Fixed jib length 12.25m

Smarter telescopic boom truck crane Crawler Crane SMQ350A
hydraulic telescopic truck crane
truck loading crane

Smarter telescopic boom truck crane Crawler Crane SMQ350A



STRUCTURE OF SMQ350A

SMQ350 35T telescopic crawler crane is our own developed products, which maximum load capacity is 35T, and maximum load moment is 135 T·M. The total weight of this type crane is 47.5T and length is 12m (when auxiliary winch is installed, the total length is 12.6m). When under working condition, the width of carriage is 4.5m, while 3.2m for transportation. Crane’s height is 3.11m with 10.5-39.2m length boom and 6.5m jib. Whole crane is composed by three parts, carriage, turntable and arm. The carriage is welded as a closed box by plates with different directions to increase construction stability. The turntable is a combination structure of closed box and single web plates. The arm frame is adopted with octagon section, which has good stretch proof ability.



Main technical data



Item			Unit	Data
Max. rated load weight			t	35
Boom length			m	10.5~39.2
Jib length			m	6.5
Max. length of boom+jib			m	39.2+6.5
Luffing angle			°	-2~80
Working speed	m/min m/min	120	m/min	99
		120	m/min	99
	r/min		0~2.0	0~1.8
	Km/h		0~2.8	0~3.9
Hoisting multiple			t	4.37(single rope)
Grade ability			%	40
Motor output power/rev.			1	Type 6BTAA5.9-C205
Total weight			Kw/rpm	153/2200
Counterweight			N.m / r/min	870/1500
Overall size			t	47.5(include counterweight)
Unit pressure of ground			t	13
