SANY high quality Truck with Crane 100t Truck Mounted Crane
Benefits & features
SANY STC1000S 100 Ton Truck Mounted Crane Mobile Crane Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good traffic ability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
The use of tipping over early-warning technology provides high stability and safety of the overall operation.
SANY STC1000S 100 Ton Truck Mounted Crane Mobile Crane Highly efficient, stable, energy-saving and adjustable hydraulic system
Electrical proportion Hydraulic system load feedback, piston pump, electrical controlled valve and constant power control are applied to provide strong lifting capacity and good micro-mobility.
Unique steering buffer design is adopted to ensure stable braking operation.
SANY STC1000S 100 Ton Truck Mounted Crane Mobile Crane Ultra long, super strong and highly sensitive load lifting capacity
Five-section boom of high strength steel structure and optimized U-shaped cross reduces weight significantly with higher safety rates.
Jib mounting angles are 0°, 15°and 30° which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.aring from you soon.
Max. Capacity | 100 |
Carrier Engine | Engine Model: OM502LA |
Engine type: V-type, 8 cylinder, water-cooled Benz diesel engine | |
Related Power: 350KW@1800rpm, 2300N.m/1080rpm. | |
Capacity of fuel tank: 450L | |
Superstructure-Engine | Engine Model: OM906LA |
Engine type: 6 cylinders Benz diesel engine | |
Related Power: 150KW@2200rpm, 750N.m/1200rpm | |
Transmission | ZF-12 Speed Gear box withautomatic control system |
Outriggers | Made of fine-grain high-strength steel sheet, outriggers can be controlled through control panel with automatic leveling function. Front swing outriggers and rear telescopic outriggers are arranged. Four-point supporting ensures easy operation and strong stability with Max. span up to 7.6mx7.6m. |
Counter weight | 32.5t movable counterweight can be moved backward 860mm |
Tyres | 14+1 Wheels, 12.00R24 20PR Tyres |
Frame | Designed and manufactured by SANY, anti-torsion box structure is welded by fine-grain high-strength steel plate to provide lighter weight and strong load bearing capacity. With bending strength increased by 46.8% and with torsional strength increased by 68% compared with original concave structure. |
Telescopic Boom | 6 Boom Section |
Boom Length | 60 meter |
Swing away Jib | 78.1 meter |
Electrical Systems | With 2*12V maintenance-free batteries, the crane power can be cut off manually via a mechanical master power switch. The use of CAN-bus control system can achieve information interaction between superstructure and undercarriage
|

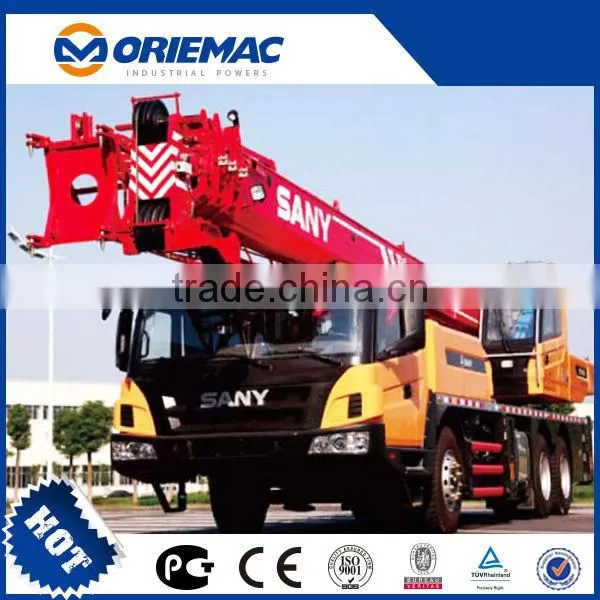

Photos -- SANY Truck Crane STC100
