Foton Concrete Pump Truck for Sale
US$ 150,000 - 600,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Diesel
Place of Origin:
Beijing, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Foton Rowor 6x4 Concrete Pump Mixer TruckUS$ 150,000 - 600,000MOQ: 1 Unit -
Foton Rowor 6x4 Concrete Mixer Truck DimensionsUS$ 45,000 - 60,000MOQ: 1 Unit
-
Foton Auman Concrete Mixer Machine PriceUS$ 45,000 - 60,000MOQ: 1 Unit
-
BEIBEN NG80 Cheap Concrete MixerNegotiableMOQ: 1 Unit
-
BEIBEN NG80 Small Portable Concrete Pump TruckNegotiableMOQ: 1 Unit
Condition
New
Power Type
Diesel
Place of Origin
Beijing, China
Brand Name
Foton
Model Number
Foton
Power(W)
385
Weight
25000
Dimension(L*W*H)
11.5*2.5*3.8m
Certification
ISO
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas

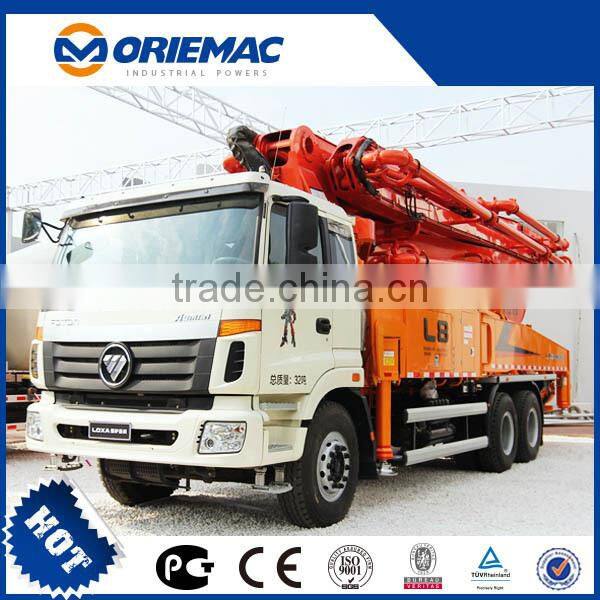

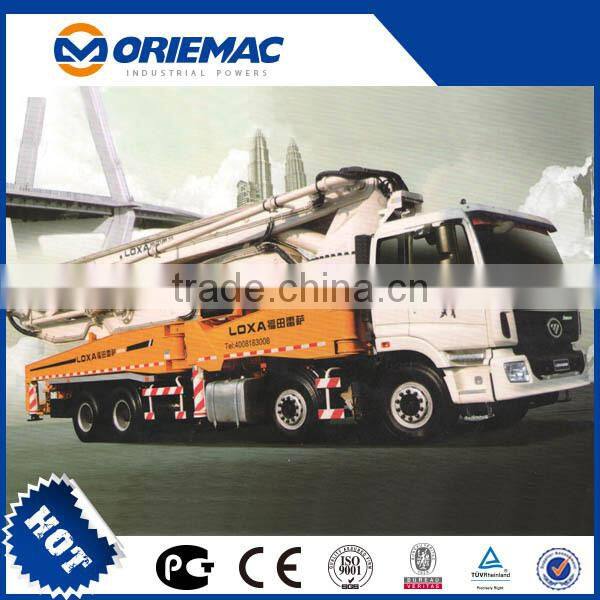

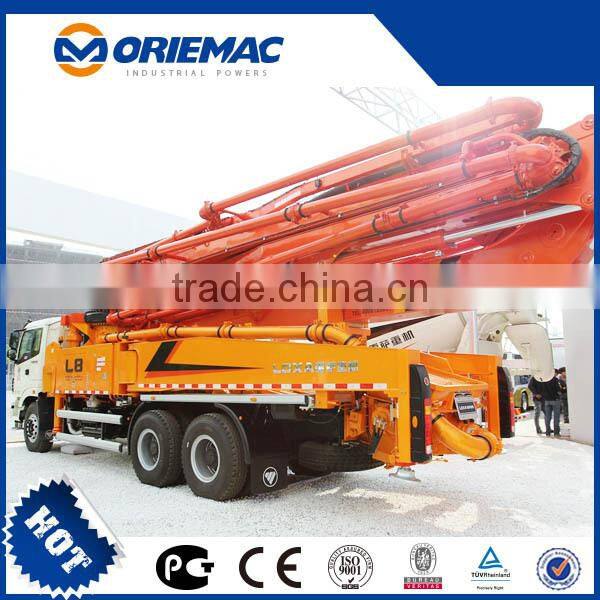

Foton concrete pump truck for sale
Model: BJ5410THB-1
Engine model: ISM38530
| SPECIFICATION | |
| FOTON Concrete PUMP Truck BJ5410THB-1 | |
| INFORMATINO | |
| Model | BJ5410THB-1 |
| Type | Concrete PUMP Truck |
| Wheel Base | 2100+4300+1350mm |
| Engine Infos | |
| Engine Model | ISM38530 |
| Fuel | Diesel |
| Displacement | 10.8L |
| Max. Output | 385 KW |
| Transmission | |
| Gear Box | Fast 9 gear |
| Forward Gear | 12 |
| Reverse Gear | 2 |
| Basic Infos | |
| Pumping Capacity | 170m³/h |
| Max. Pumping Height | 52(m) |
| Total Weight | 52(m) |
| Dimension | 11.5×2.5×3.8(m) |
| Pumping Systerm | |
| Pumping Capacity(High/Low Pressure) | Pumping Systerm |
| Pumping Pressure(Low/High) | 18/24 |
| Conveying cylinder: bore * stroke | 260/2100mm |
| Oli Pressure | 32Mpa |
| Conveying Pipe Diameter | 125mm |
| Arm/Leg | |
| Arm Vertical Height | 52(m) |
| Arm Horizontal Length | 47.5(m) |
| Min.Developed Length | 4(m) |
| Arm Section | 6 |
| First Section: Length | 1053mm |
| First Section: Angle | 90(°) |
| Second Section: Length | 9000mm |
| Second Section: Angle | 180(°) |
| Third Section: Length | 8700mm |
| Third Section: Angle | 180(°) |
| Fourth Section: Length | 9860mm |
| Fourth Section: Angle | 240(°) |
| Fifth Section: Length | 5455mm |
| Fifth Section: Angle | 225(°) |
| Sixth Section: Length | 4669mm |
| Sixth Section: Angle | 90(°) |
| Turntable rotation angle | 365(°) |
| Leg Developed Width: Front/Gear | 10606mm |
