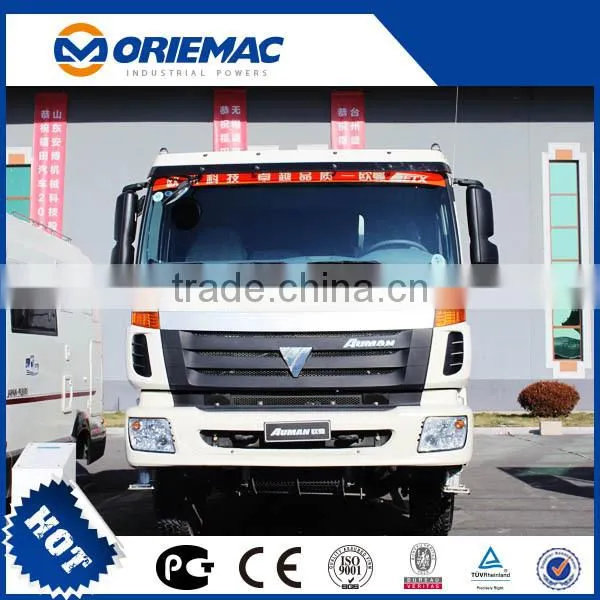

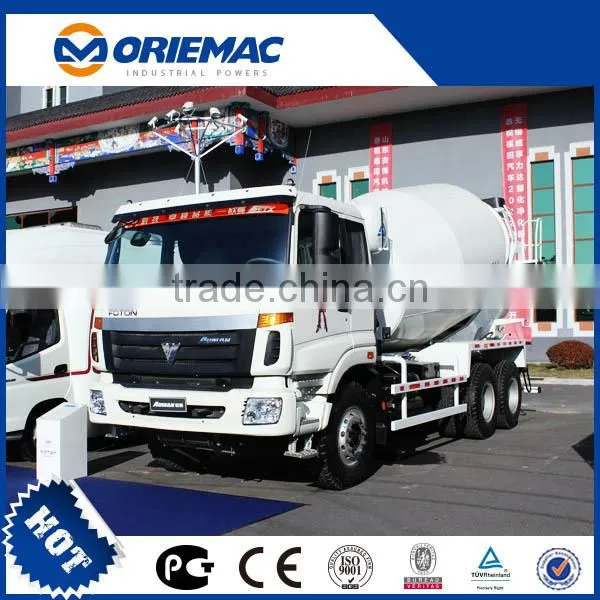

Foton Auman 6x4 Concrete Pump Mixer Truck

Name: Foton Auman 6x4 Concrete Pump Mixer Truck
Brand: Foton
SKU: 140719658
Availability: InStock

US$ 45,000 - 60,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Place of Origin:

Beijing, China

Brand Name:

Foton

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Qingdao Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Beijing, China

Brand Name Foton

Model Number BJ5253GJB-XA

Weight 15200

Dimension(L*W*H) 9800*2495*3990

Power(W) 250

Certification ISO

Warranty 1 YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Foton Auman 6x4 concrete pump mixer truck
1.Mature product
2.structure is stable and reliable
3.strong bearing capacity

Foton Auman 6x4 concrete pump mixer truck

Model: BJ5253GJB-XA

Engine model: ISM11E4 345

SPECIFICATION
AUMAN 6X4 340PS Concrete Mixer Truck (BJ5253GJB-XA)
Basic Infos
Model	BJ5253GJB-XA
Type	Concrete Mixer Truck
Driving Type	6X4
Wheel Base	4100+1350mm
Length	9800
Width	2495
Height	3990
Rated Load	9.605
Max. Weight	15.2
Max. Speed	90 KM/h
Origin	Hubei Province
Engine Infos
Engine Model	ISM11E4 345
Fuel	Diesel
Displacement	10.8L
Emission	EURO III
Max. Output	250 KW
Torque	1800N·m
Max. Horse Power	340 PS
Max. Torque Speed	1400-1600RPM
Rated Speed	1900RPM
Transmission
Gear Box	Fast 12 gear
Forward Gear	12
Reverse Gear	2
Tyre Infos
Number	12 pcs
Sizes	12.00R20 18PR
Mixer specs
Mixing Volume	12m³
Tube geometric volume	20.11m³
Slumps	40.23mm
Mixing Speed	6-12r/min
Feeding Speed	3m³/min
Unloading Speed	2m³/min
Discharge residual rate	<0.7%
Filling Rate	0.578
Water Mode	pneumatic water supply
Hydraulic	CLSS
Water Tank	500m³
