Specifications
16M Self-propelled Aerial Working Platform1.Max working height 16m
2.Loadcapacity of working basket 227kg
3.N.Traffic Brand

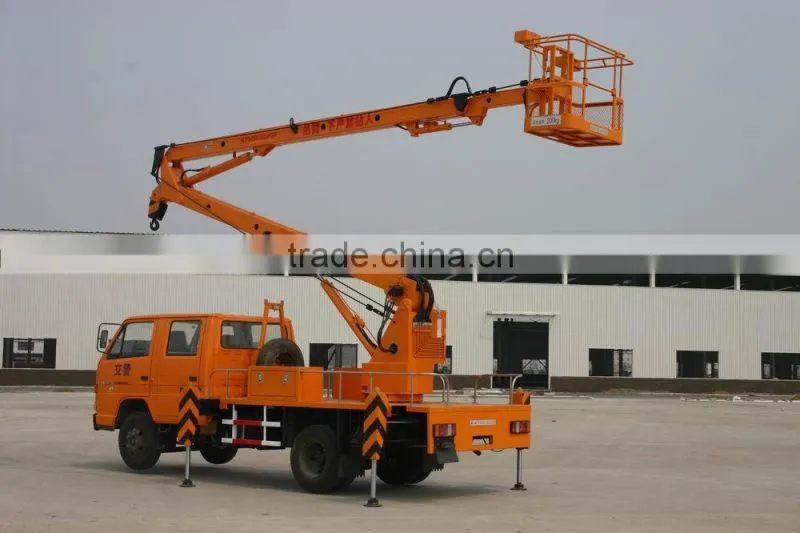

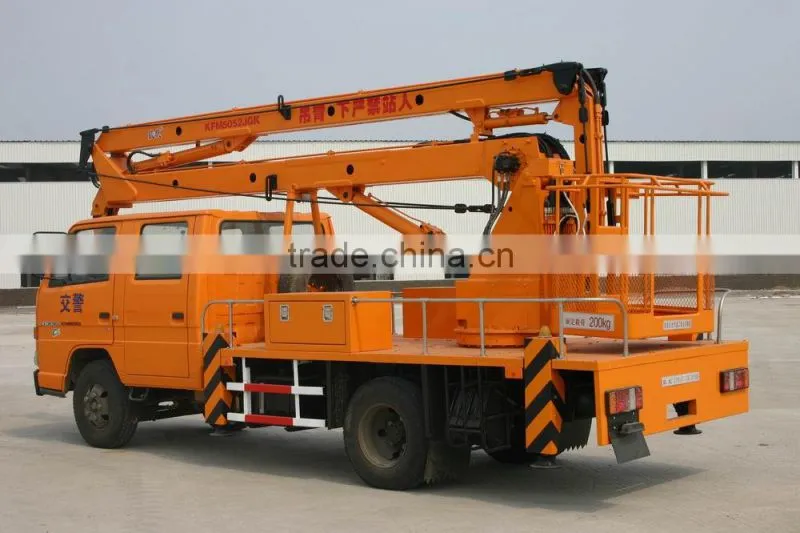

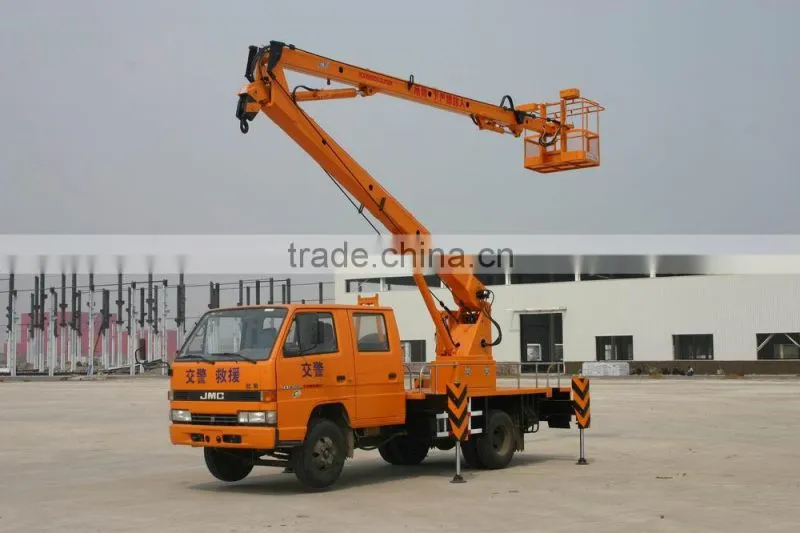

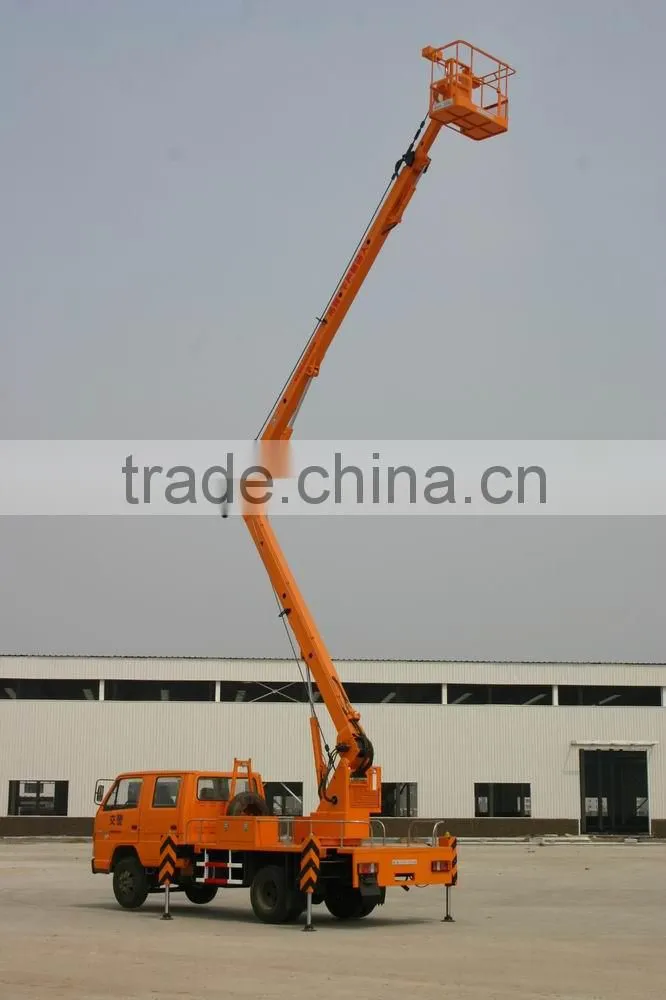

N.TRAFFIC 16M Self-propelled Aerial Working Platform
Working Condition
1,Altitude: 0-1000m
2,Temperature: -25°C--+45°C, environmental relative humidity ≤90%
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
4,≤6 degree (wind speed ≤12.5m/s)
Working Range
KFM-ZZ14AC Self-Propelled Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
Product Advantages
The process of lifting is steady.
Multi-functional proportional control device, lifting, rotating and walking can operate at the same time.
Full functional ground console, equipped with multi-functional designated symbol, be convenient to use.
Be convenient for working in the narrow areas.
Better ability of crossing the barriers.
Zero emissions,low noise,suitable for indoor operation.
Technical Features
Working height is 16m. Basket could load 227kg at most. Adopting battery-driven approach, environmental protection with no pollution, which offers the best choice for people operating in indoor environment.The basket can oscillate in the range of 160°, which is easy to approach the working target. The basket can be equipped with load cell as an option that could prevent from over-load , having high safety.The boom structure is adopted with arm breaker form as well as telescopic together. In fully telescopic condition, the volume is small. The capacity of overbearing barriers is much higher than before.Ana what’s more, the boom can stretch out flexible, no limiting of the area or room.The working area is much larger than before.Max. Turret Rotation could be ±355°, designed be no wagging tail. The protection cover is adopted to be tilting style or rotating style.Its appearance is simple and elegant. Its hydraulic system as well as electric system is convenient for us to maintain and fix. The AC Drives for the chassis is powerful, which is more efficient and reliable than DC Drives. It has a longer operating life, equipped a charger with the truck. Therefore, we could charge it at any time, which is convenient to use. Being equipped with steering configuration of front wheels and with dual drive for rear axle.The whole truck has a good safety capacity, adopting a new design, energy-saving and environment protected, which makes the whole truck has characters of no pollution, zero emission, low noise.Taking international developed CANBUS technique, complete intelligent proportional control by computer which has two controlling methods, one from the earth and the other from the basket. The whole truck has double motors, double hydraulic pumps, owning a function for emergency operation, which freeing customers from worries.
Main Parameters
Parameters | |||
The main size parameter | Max working height | 16m | |
Max platform floor height | 14.3m | ||
Max. working outreach | 6.7m | ||
Basket Size | 1.8m´0.76m´1.1m | ||
The whole vehicle retracting size | 5.46m´1.87m´2m | ||
Axle base | 2.04m | ||
The main technical parameter | Load capacity of working basket | 227kg | |
Rotation of working platform | 160° | ||
Turret rotation | 355° | ||
Turret drifting | 0 | ||
The max. actuating speed(retracting) | 6.4km/h | ||
The max. actuating speed(raising or extending) | 1.1km/h | ||
Grade ability (retracting)4x2 | 30% | ||
Turning radius | 1.9m | Turning radius | |
4.3m |
| ||
Power parameter | Power source | 84H 6V315AH Storage battery 8 sets 4H 6V315AH | |
Weight parameter | Weight of whole vehicle | 6.6t | |
