Specifications
Sinotruck road wrecker towing truck KFM5318TQZroad wrecker towing truck
rotator tow truck
road wrecker towing truck

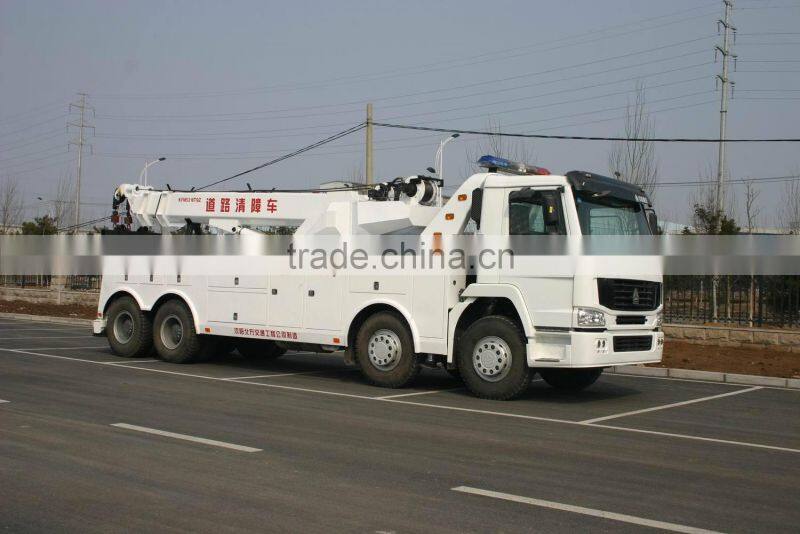

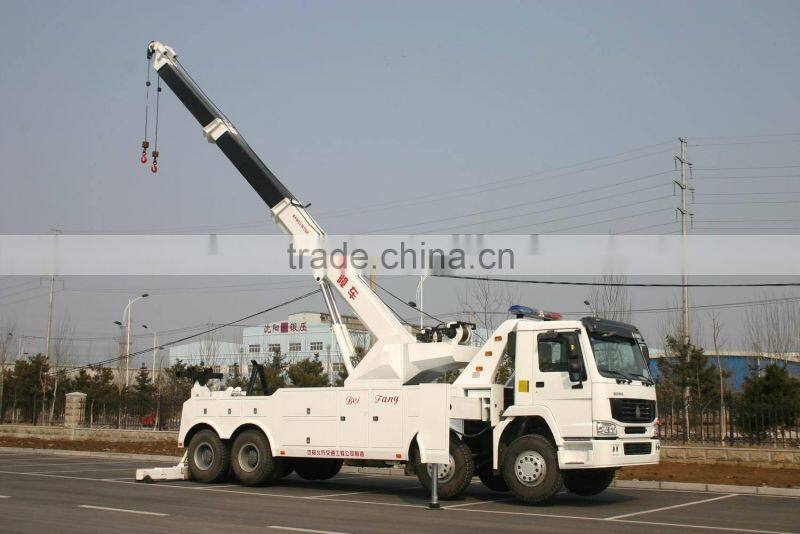

Sinotruck road wrecker vehicle KFM5318TQZ
KFM5318TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
Items | Unit | Value | |
Lifting Structure | Rated Lifting weight | kg | 6350 |
Max. Lifting weight | kg | 9500 | |
| Max. Lifting weight of original place | kg | 16000 | |
Max. Lifting weight of full extension boom | kg | 4500 | |
Rated towing weight | kg | 31000 | |
Max. Designed towing weight | kg | 60000 | |
Effective length of boom | mm | 3300 | |
Extension traveling of boom | mm | 1700 | |
Folding angle of boom | ° | 90 | |
Under lift Structure | Max. Rated hanging weight | kg | 20000 |
The height from hook to the ground | mm | 10080 | |
Extension traveling of lifting boom | mm | 3500 | |
Turning angle | ° | 360 | |
Numbers of winch | piece | 2 | |
Rated pulling power of winch | kg | 10000×2 | |
Dia. Of steel cable | mm | 18 | |
Length of steel cable | m | 40 | |
Min. Speed of steel cable | m/min | 7 | |
Rotation angle | ° | 58 | |
Vehicle Parameters | External dimension | mm | 10818×2500×3323 |
Chassis model |
| ZZ1317N4668W | |
Axle base | mm | 1800+4600+1350 | |
Drive |
| 8×4 | |
The whole weight of empty load | kg | 24520 | |
Load of front axle of empty load | kg | 10950 | |
Load of rear axle of empty load | kg | 13570 | |
