Specifications
N. Traffic 20 ton hydraulic truck crane QY20G20 ton hydraulic truck crane
New truck cranes 20 ton
HOT Sale Popular China N.TRAFFIC Brand 20ton Truck Cranes KAIFAN QY20G For sale with good performance
Best Seller Truck Cranes KAIFAN QY20G For sale
1.Features
Working Condition
1,Altitude: 0-4500m
2,Temperature: -25°C--+45°C
3,Allowed working condition: solid, stable land, the vehicle should be horizontal
4,Wind force: ≤6 degree
Working Range
“KAI FAN” Brand KFM5263JQZ20G(QY20G)Crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 12t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
2.Parameters
Items | Unit | Value | |
Working Performance Parameters | Max. Rated lifting weight | kg | 20000 |
Max. Lifting force of the basic boom | kn.m | 835 | |
Max. Lifting force of the longest main boom | kn.m | 460 | |
Max. Height of the main boom | m | 32.3 | |
Max. Height of the vice boom | m | 40.1 | |
Max. Speed of the single rope | m/min | 120 | |
Working Speed | Extension time of the lift boom | s | ≤80 |
Lifting time of the lift boom | s | ≤50 | |
Turning speed | r/min | 0~2 | |
Traveling Parameters | Max. Traveling speed | km/h | 75 |
Max. Grade ability | % | 26 | |
Min. Turning radius | m | 10 | |
Min. Ground clearance | m | 0.27 | |
Approaching angle | ° | 16 | |
Departure angle | ° | 11 | |
Weight Parameters | The whole weight | kg | 26070 |
The front axle weight | kg | 6850 | |
The middle-rear axle weight | kg | 19220 | |
The whole weight of full load | kg | 26200 | |
The front axle weight of full load | kg | 6990 | |
The middle-rear axle weight of full load | kg | 19210 | |
Dimension Parameters | External dimension(length×width×height) | mm | 12550×2500×3300 |
Vertical span of outrigger | m | 4.91 | |
Horizontal span of outrigger | m | 5.63 | |
Length of main boom | m | 10~31 | |
Length of vice boom | m | 8 | |
Elevation of boom | ° | -2~80 | |
Chassis | Model | — | TAZ5263J |
Engine model | — | WP6-240 | |
Rated power/speed | kw/(r/min) | 176/2500 | |
Max. Torque/rotate speed | n.m/(r/min) | 800/1300-1600 | |

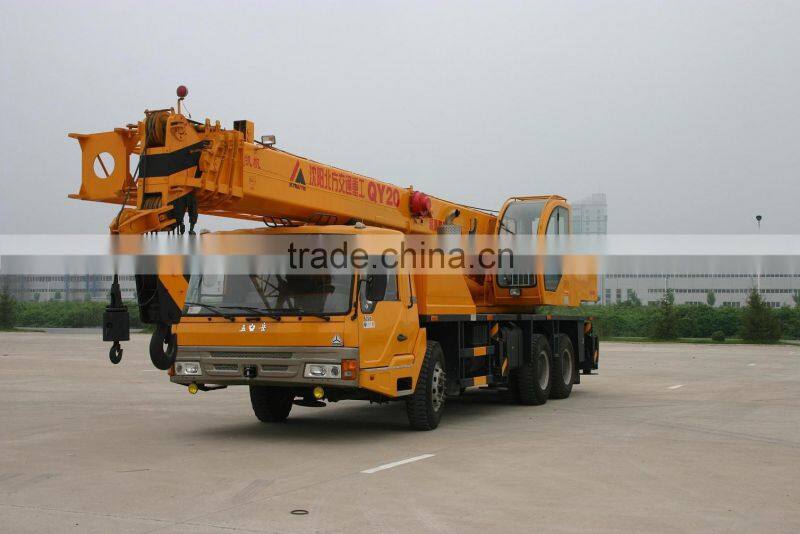

3.Pictures-QY20G Truck Cranes
