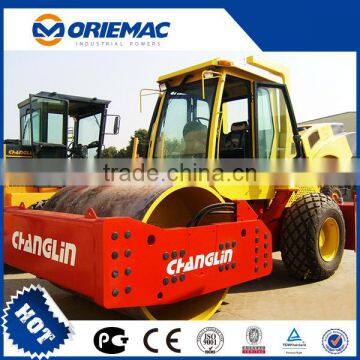

12 Ton Changlin Road Roller Steel Double Drum Vibration Yz20J Road Roller

Name: 12 Ton Changlin Road Roller Steel Double Drum Vibration Yz20J Road Roller
Brand: Changlin
SKU: 140717876
Availability: InStock

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

US$ 10,000 - 32,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Single Drum Roller

Travel Speed:

0-4km/h

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Single Drum Roller

Travel Speed 0-4km/h

Grade Ability 30%

Brand Name Changlin

Model Number YZ20J

Power(W) 128kw

Dimension(L*W*H) 6328*2460*3285mm

Weight 20000kg

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

12 Ton Changlin Road Roller Steel Double Drum Vibration yz20J road Roller

whatsApp/Tel:+86 18217056032

Overall Dimension
1	Length	6328mm
2	Width(to outside of wheels)	2460mm
3	Height(To the top of the cab)	3285mm
4	Wheel base	3150mm
5	Tread	1645mm
6	Min. ground clearance	430mm
Main Technical Specification
1	Static line force	474N/cm
2	Dynamic line force	1658 N/cm
3	Operating weight	20001kg
4	Nominal Amplitude high low	1.9mm 1.0mm
5	Centrifugal-Force high low	350kN 270kN
6	Total stress force	46362(kg)
7	Static Weight at Drum	10003kg
8	Static Weight at Tires	10000kg
9	Frequency	29/35Hz
10	Min. turning radius(Outside of rear wheel)	6805mm
11	Drum diameter	1600mm
12	Drum width	2130mm
13	Drum thickness	40mm
14	Traveling speed(Km/h),3 forward and 3 reverse
