Tracked loader is the flagship product of our company, it obtained good appraise and recognized by oversea clients around the world with excellent quality and after-sales service. Also we have confirmed our sales agent of this products in Alstralia, Germany, Malaysia and so on.
Specifications:
Model |
BY800 |
Engine |
Honda GX390 13HP gasoline/B&S/Kama Diesel |
Type |
Hydra-static |
Operative weight kgs(lbs) |
800 (1762) |
Max travel speed km/h(mph) |
0-4.8(0-3.0) |
Transmission |
|
Hydraulic pump |
2 x variable displ. |
Flow Vmin(gpm) |
2 x 32.4 (2 x 8.5) |
Hydraulic motors |
2 x orbital |
Brake parking |
Mechanical |
Hydraulic system |
|
Hydraulic pump |
Gear pump |
Flow Vmin(gpm) |
1 x 13.5 (1 x 3.5) |
Hi-flow Vmin(gpm) |
1 x 22 (1 x 3.5) |
Max pressure bar(psi) |
150 (2180) |
Main valve |
2-3 way |
Cooled system |
air-cooled |
Skip tipping system |
Hydraulic |
Tracks |
|
Standard track width mm(in) |
180 (7.1) |
Track roller |
3 |
Rocking rollers |
Yes |
Track tensioning |
Yes |
Pictures of our products:

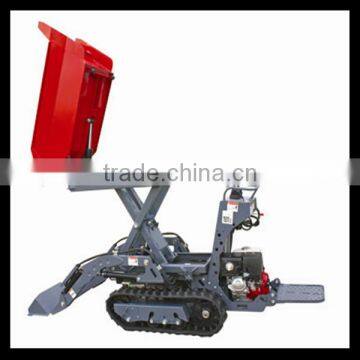

The dumping drum can be lifted to 1.45m high(rock bottom) which mke it easy to dump to the truck like the picture below:
Details of our product:
The certificates we have of this product:
CE & Patent for dsign:
Package of this product:
And in a 20’container, we can put 6 sets inside; in a 40’ container, the quantity will be 12 sets.
Our factory(buy from us directly can help reduce intermediate links to save your money) :
Production equipment and workshop:
If this product cannot meet your requirements in its load or functions, please search BY1000 in our website to see another great product.
