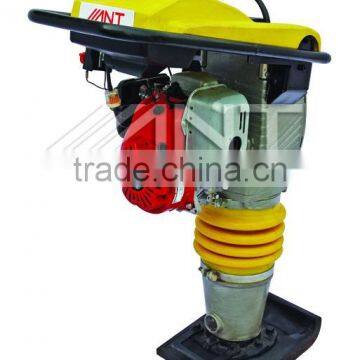

Tamping Rammer CJ100:
Tamping rammer CJ100 with CE , earth rammer
Applications of Tamping rammer CJ100 with CE ,impact rammer,jumping jack rammer
Rammers are designed to compact loose soils and gravel to prevent settling and to provide a firm, solid base for the placement of footings, concrete slabs, foundations, and other structures.
Specifications:
| Model | CJ100 |
| Engine | Honda GX100 3HP |
| Dust bellow | Polyurethane |
| Take off high | 65mm |
| Tamping depth | 55mm |
| Impact frequencty | 600/m |
| Walk speed | 28mm/s |
| Plate size | 340mm*285mm |
| Packing | |
| Weight | 70kgs |
| Dimension | 108*42*74(L*W*H CM) |
| 20GP | 78PCS |
| 40GP | 168PCS |
| Specifications | GX100 3HP | |
| Engine Type | Air-cooled, 4-Stroke, OHC, single cylinder | |
| Bore x Stroke | 56 x 40 mm (2.2 x 1.6 in) | |
| Displacement | 98 cm3 (6.0 cu in) | |
| Compression Ratio | 8.5 : 1 | |
| Net Horse Power Output* | 2.1kW (2.8HP) at 3,600 rpm | |
| Net Torque | 5.7 Nm (4.2 lbs ft) at 3,600 rpm | |
| PTO Shaft Rotation | Counterclockwise (from PTO shaft side) | |
| Ignition System | Transistorized magneto ignition | |
| Starting System | Recoil Starter | |
| Carburetor | Horizontal type butterfly valve | |
| Lubrication System | Forced Splash | |
| Governor System | Centrifugal Mechanical | |
| Air Cleaner | Dual Element Type | |
| Oil Capacity | 0.40l (0.42 US qt, 0.35 Imp qt) | |
| Fuel Tank Capacity (liter) | 0.77l (0.81 US qt) | |
| Dimensions (L x W x H) | 295mm (11.6 in) x 304mm (12.0 in) x 402mm (15.8 in) | |
| Dry Weight | 10.6 kg (23.4 lbs) |
Maintenance schedule
Certificate of Tamping rammer CJ100 with CE ,impact rammer,jumping jack rammer
Packing details:
in a 20’container, we can put 78 sets inside;
in a 40’ container, the quantity will be 168 sets.
ANT MACHINERY Tamping Rammer "CJ" series :
Model | Weight | Dimension(cm) | Engine | Jumping Stroke(mm) | Impact Frequency | Impact force(KN) | Plate size(mm) |
CJ60 | 70kg | 80*52*101 | Honda GX160 5.5HP | 40-65 | 420-650/min | 16.7 | 340*285 |
CJ70 | 72kg | 109*77*46 | Robin EH12 4HP | 85 | 680-710/min | 17.0 | 340*290 |
CJ80 | 80kg | 80*52*101 | Honda GX160 5.5HP | 40-65 | 420-650/min | 16.7 | 330*285 |
CJ100 | 70kg | 108*42*74 | Honda GX100 3HP | 65 | 600/min | 15.0 | 340*285 |
Our company is a professional manufacturer, and we have strong technological advantages, complete producer`s equipment and perfect testing technology.
