WH189 Gasoline Engine Ride on 20HP Concrete Finishing Power Trowel

WH189 Gasoline Engine Ride on 20HP Concrete Finishing Power Trowel photo-1
WH189 Gasoline Engine Ride on 20HP Concrete Finishing Power Trowel photo-2
WH189 Gasoline Engine Ride on 20HP Concrete Finishing Power Trowel photo-3
US$ 3,000 - 4,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ANT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name ANT
Model Number WH189
Power Source Gasoline
Weight 292kg
Dimension(L*W*H) 2060*1150*1120mm
Certification CE, EPA
Warranty 6 months after use or 1 year after leave factory.
After-sales Service Provided Overseas service center available



Product Description

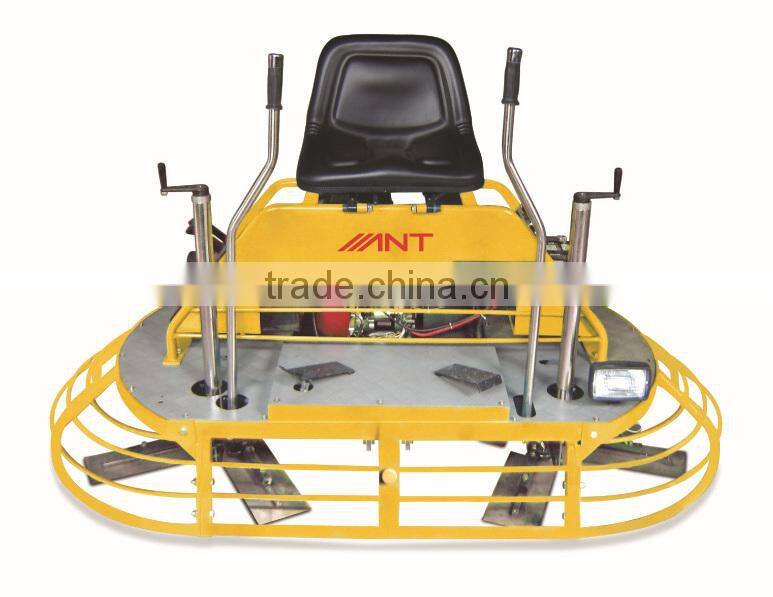

WH189 gasoline engine ride on 20HP concrete finishing power trowel

Specifications:

  • Ride-on operation reduces intensity of labor and increase efficiency of work
  • With dual rotor, much heavier weight and much better compaction, the efficiency is higher than walk-behind power trowel
  • A non-overlapping is designed for two pans working
  • Mechanism type steering system with rapid response and easy control
  • Low barycenter design provides stable operation
  • A strong power supplied by Honda gasoline engine
ModelWH189
EngineHonda GX630 21HP
Engine type4stroke,1cylinder,OHV,air-cooled
Engine 3600rpm
Blade diameter(360mm*150mm)
Speed60-100rpm(with pan disc)
 125-140rpm (with blade)
Blade adjustment0-15°
With water sprayer,head lamp and heavy load gear case
Blade angle adjuster, adjustable seat & safety cut-off switch
Packing
Weight292kgs
Dimension203*100*120(L*W*H CM)
20GP5PCS
40GP11PCS



WH189 gasoline engine ride on 20HP concrete finishing power trowel



Gear Box

 WH189 gasoline engine ride on 20HP concrete finishing power trowel

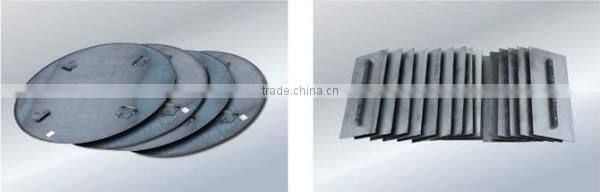

Blade

WH189 gasoline engine ride on 20HP concrete finishing power trowel

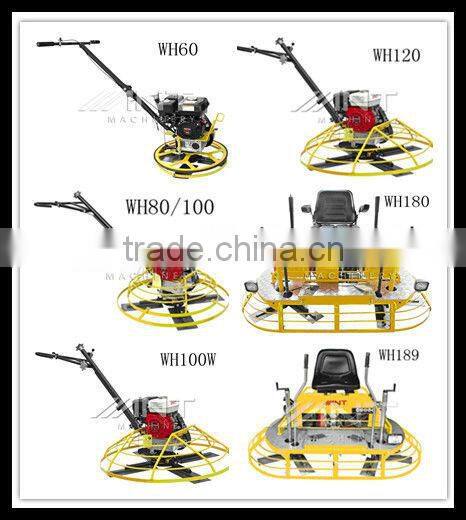

product series

 WH189 gasoline engine ride on 20HP concrete finishing power trowel















Certifications

 WH189 gasoline engine ride on 20HP concrete finishing power trowel
