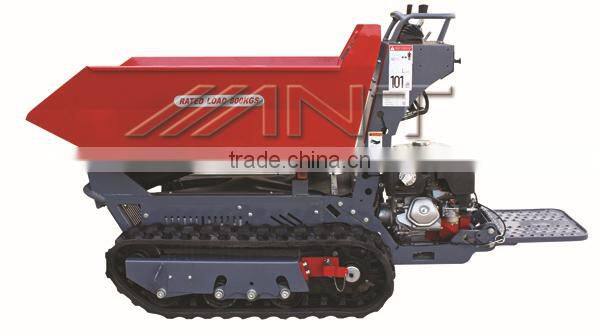

ANT BY800S hydraulic mini tractor front loader with crawler driven
Specifications
| MODEL | BY800S |
| Engine | 13.5hp 4-stroke gasoline or diesel |
| Loading Capacity | 800kgs |
| Max travel speed | 5.0km/h |
| Transmission | |
| Hydraulic pump | Piston Pump or Gear Pump |
| Flow | 2*32.4Vmin(2*8.5gpm) |
| Hydraulic motors | 2*orbital |
| Brake parking | Mechanical |
| Hydraulic system | |
| Flow | 1*13.5Vmin(1*3.5gpm) |
| Hi-flow | 1*22Vmin(1*3.5gpm) |
| Max pressure | 150bar(2180psi) |
| Main valve | 2-3way |
| Cooled system | Air-cooled |
| Skip tipping system | Hydraulic |
| Tracks | |
| Standard track width | 180mm(7.1in) |
| Rocking rollers | 3 |
| Track tensioning | Yes |
| Packing | |
| Weight | 625kgs |
| Dimension | 2200*900*1250mm |
| 20GP | 6PCS |
| 40GP | 13PCS |
Features
1.Maximum loading weight is 800kgs.
2.The main parts imported from USA with global warranty.
3.Easy and comfortable operation due to the intuitive controls.
4.Easy climbing and stable crossing the obstacles.

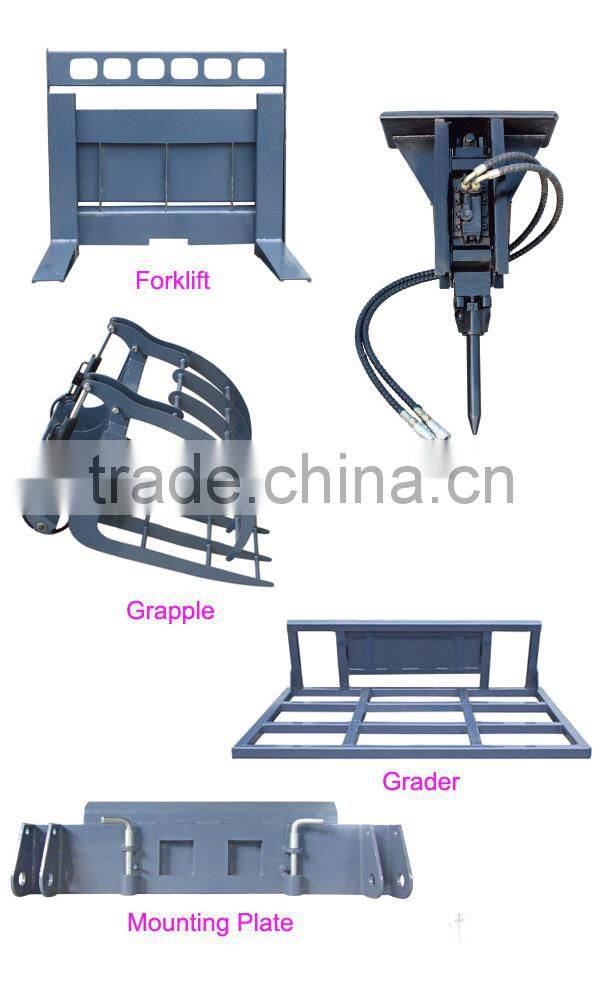

5.Rich accessories to add the value, such as quartering hammer, post hole digger, mounting plate, grapple, forklift, grader and so on.
ANT Machinery Co., Ltd established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery. It is situated in Qidong,Jiangsu province.
The present leading series of products include power barrow, power trowel, plate compactor, road cutter, tamping rammer, lawn mower, concrete vibrator and so on.
Power Barrow Series
*Q:What's your MOQ of this term?
A:1 unit
*Q:Could you stick customer's brand on the products?
A:Of course,we welcome the OEM orders.
*Q:How long is your warranty?
A:6 months for used or 1 year after leave factory
*Q:What's your packing?
A:Solid carton,steel frame with carton cover or wooden case
*Q:What's your payment method?
A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight
*Q:What's your delivery time?
A:Delivery timely about 15-20 days after receiving the deposit
Thanks for your time!
For more details,don’t hesitate to contact me or click /.Wish for your inquiry!
