Home > Products > Lawn Mower > Gasoline Lawn mower Grass Cutter Push by hand ANT196P honda grass cutter machine
Gasoline Lawn mower Grass Cutter Push by hand ANT196P honda grass cutter machine
- 300 Piece / Pieces per Month
- Shanghai/Nantong
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ANT | Model Number: | ANT196P |
Power Type: | Petrol / Gas | Type: | Other, Professional Mowers, lawn mower | Feature: | 4-Stroke, Cordless, Single Cylinder |
Certification: | CE |
Product Description

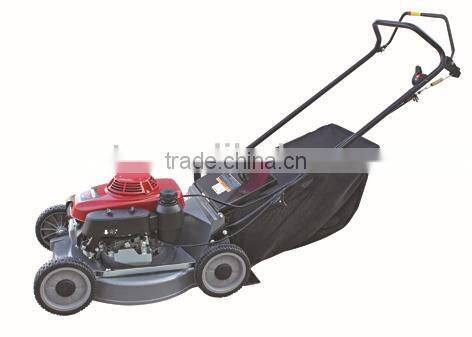

Lawn Mower ANT196P:
Specifications:
Back and forth hand power middle transmission T type four-wheel drive mower is suitable for the grassplot in farm and pasturing area, mountain area and foothill area. It is used to finishing lawn, harvest pasture, trim garden and pack up shrub and so on. The engine is four- stroke, air-cooled gasoline engine which is started by rebound starter and it can transmit smoothly without energy loss. The output of gearbox uses the special clutch and no gear shift. The blade is driven by sliding slot which is driven directly by the roll installed on eccentricity wheel crank. The eccentricity wheel organ connect with power output belt pulley which comes from the front end of chassis transmission box through one belt transmission. It adopts the combined geared clutch. The clutch controls the moving blade and switch controls the accelerograph. Emergency flameout switch is placed on the handle which can be adjusted in the vertical direction. The blade is made of the special chrome steel which is able to bear for long time. The clearance can be adjusted by bush of pressure plate. The blade guide is accurate and steady. In order to increase adhesion force, the tyre use the type shape. Safety cover is on the transmit mechanism, so it is more safe. This machine has the characteristics of wide use, smooth running, low power consumption, good cutting quality and no stop of reamer.
Model | ANT196P |
Engine | HONDA GXV160 5.5hp |
Max. power | 5.5hp/3600rpm |
Max. torque(N.m/rpm) | 10.8N.m/2500rpm |
Cutting width | 480mm/19inch |
Mowing height adjustment | 20-80mm / 7 levels |
Blade max. rev. | 3200rpm |
Max. gradient | 20degree |
Front/Rear wheel diameter | 200mm |
Bag capacity | 70L |
Fuel tank capacity | 1.9L |
Chassis material | Aluminium alloy |
Applicable Area | 600m2-3000m2 |
Driving System | manual push |
Handle Type | Folding Handle |
Grass Catcher | Darcon Bag |
Rear Discharge capability | Yes |
Blade Type | Long blade / Swing blade |
Engine Brake/ Mulching capability/mulching plug: Optional | |
Packing | |
Weight | 40kgs |
Dimension | 94*53*44.5(L*W*H cm) |
20GP | 120PCS |
40GP | 240PCS |
Certificate:
ANT MACHINERY Lawn Mower 'ANT' series :
ANT186: 18'', steel chasis, push by hand
ANT196P: 19'', aluminium chasis, push by hand
ANT206P: 20'', steel chasis, push by hand
ANT206S: 20'', steel chasis, self propelled
ANT216P: 21'', aluminium or steel chasis, push by hand
ANT216S: 21'', aluminium chasis, push by hand
ANT226P: 22'', aluminium chasis, push by hand
ANT226S: 22'', aluminium chais, self propelled
Our company is a professional manufacturer, and we have strong technological advantages, complete producer`s equipment and perfect testing technology
