construction vibrator

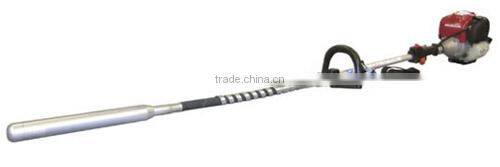

this vibrator machine is concrete use, powered by 1.5hp 4-stroke gasoline engine. The poker head is 45mm diameter, with 2m long, weighted only 13kgs. It's very light in hand operation.
| Model | ZDB35-CX |
| Engine | Honda GX35 |
| Engine speed | 6500rpm |
| Vibration Frequency | 9000vib/min |
| Rope length | 2.2m |
| Vibration rod dia | 45mm |
| Option engine | Chinese huasheng zhongtian 139f |
Option vibration rod:
1#rod (25x6)diameter*length
2#rod (28x6)diameter*length
3#rod (32x6)diameter*length
4#rod (38x6)diameter*length
5#rod (45x6)diameter*length
6#rod (50x6)diameter*length
7#rod (60x6)diameter*length
8#rod (70x6)diameter*length
ANT MACHINERY 'ZDB' series vibration rod
- ZDB35-CL, Honda GX35, put on back, flexible rubber hose.
- ZDB35-CXL, Honda GX35, straight metal hose, can swing.
- ZDB35-CX, Honda GX35, portable, 13kgs light weighted.
- ZDB160, Honda GX160 5.5HP, powerfull, 6m long.
| Model | ZDB35-CL (put on back) | ZDB35-CXL (put on back) |
| Engine | Honda GX35 | Honda GX35 |
| diameter | 45mm | 45mm |
| Engine speed | 6500rpm | 6500rpm |
| Vibration frequency | 9000vib/min | 9000vib/min |
| Rope length | 2.0m | 3.0m |
| Option engines | Huasheng zhongtian 139F | Huasheng zhongtian 139F |
| Model | ZDB35-CX (portable) | ZDB-160 |
| Engine | Honda GX35 | Honda GX160 5.5HP |
| diameter | 45mm | Poker Head Dia: 50mm |
| Engine speed | 6500rpm | 3600rpm |
| Vibration frequency | 9000vib/min | |
| Rope length | 2.2m | 6m |
| Option engines | Huasheng zhongtian 139F | B&S, Chinese Loncin |
package
detail
certificate
workshop
Company introduction
Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta
The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields
Global market
Europe, America, southeast, Asia and Africa
