Concrete Vibrator Set ZDB35CL

Nantong Ant Machinery Co., Ltd.
Concrete Vibrator Set ZDB35CL thumbnail-1
Concrete Vibrator Set ZDB35CL photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Model Number:
Vibration rod ZDB35-CL put on back
After-sales Service Provided:
Overseas service center available
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Model Number Vibration rod ZDB35-CL put on back
After-sales Service Provided Overseas service center available



Product Description





Concrete Vibrator set ZDB35CL

Concrete Vibrator set ZDB35CL
Widely used in buidling purpose and cement fundation work .

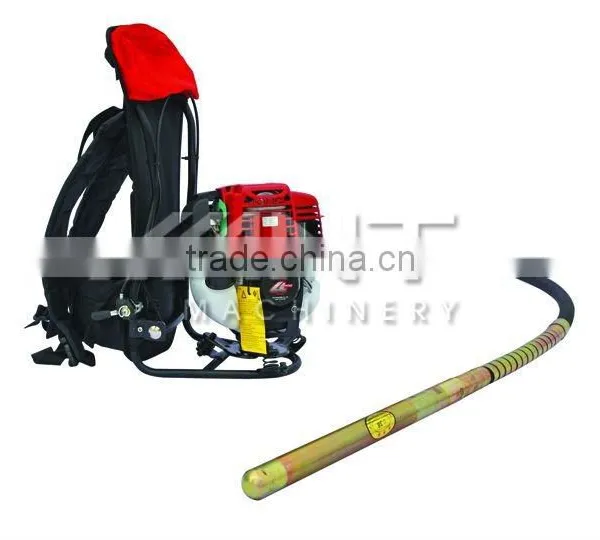

Concrete Vibrator ZDB35-CL (put on back)
Engine: Honda GX35
Vibration Rod Dia: 38mm*3m
Engine speed: 6500rpm
Vibration frequency: 9000vib/min
Rope length: 2.0m
Optional engines: Huasheng zhongtian 139F



Concrete Vibrator set ZDB35CL





Concrete Vibrator set ZDB35CL

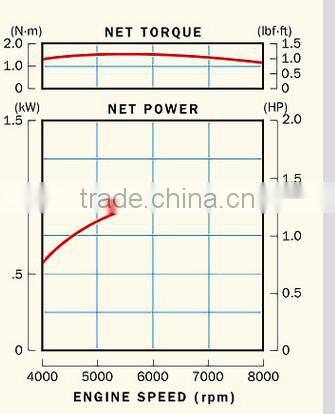

SpecificationsGX35 1.6HP
Engine Type

4-stroke, overhead cam single cylinder

Bore x Stroke39 x 30 mm (1.5 x 1.2 in)
Displacement35.8cm3 (2.2 cu in)
Compression Ratio8.0 : 1
Net Horse Power Output*1.0 kW (1.3 HP) at 7,000
Net Torque1.6 Nm (1.2 lbs ft) at 5,500 rpm
Operating AngleInfinite
Ignition SystemTransistorized magneto ignition
Starting SystemRecoil Starter
CarburetorDiaphragm type
Lubrication SystemOil mist
Cooling SystemForced-air
Air CleanerSemi-dry type
Oil Capacity100 cc (3.4  oz, 3.5 Imp oz)
Fuel Tank Capacity (liter)0.65l (0.17  gal, 0.14 Imp gal)
Dimensions (L x W x H)204mm(8.0 in) x 234mm (9.2 in) x
230mm (9.4 in)
Dry Weight3.46 kg (7.6 lbs)



  Concrete Vibrator set ZDB35CL





Company Information



Company introduction

Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta







The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields





Global market



 Europe, America, southeast, Asia and Africa



Concrete Vibrator set ZDB35CL



Contact us





 Michelle

Nantong Ant Machinery Co., Ltd.
Add: No. 280 Fuyuan Road,
Qidong Economic Development Area,
Nantong 226200, Jiangsu Province, China.
Tel: 0086-513-68881080

Fax: 0086-513-68881085
Website:





Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Nantong Ant Machinery Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
10,000-30,000 square meters
Total Employees
11 - 50 People
