back vibrator
weight: 13kgs
Engine: Honda GX35 1.5HP
Poker head diameter: 45mm
Engine speed: 6500rpm
Vibrating frequency: 9000vib/min
Rope length: 1m
back vibrator technical data
| Model | ZDB35-CL (put on back) | ZDB35-CXL (put on back) |
| Engine | Honda GX35 | Honda GX35 |
| diameter | 45mm | 45mm |
| Engine speed | 6500rpm | 6500rpm |
| Vibration frequency | 9000vib/min | 9000vib/min |
| Rope length | 2.0m | 3.0m |
| Option engines | Huasheng zhongtian 139F | Huasheng zhongtian 139F |
| Model | ZDB35-CX (portable) | ZDB-160 |
| Engine | Honda GX35 | Honda GX160 5.5HP |
| diameter | 45mm | Poker Head Dia: 50mm |
| Engine speed | 6500rpm | 3600rpm |
| Vibration frequency | 9000vib/min | |
| Rope length | 2.2m | 6m |
| Option engines | Huasheng zhongtian 139F | B&S, Chinese Loncin |
| Pocker Head | CM | |
| 1# rod | (25*6)diameter*length | 85×65×6 |
| 2# rod | (28*6)diameter*length | 85×65×6 |
| 3# rod | (32*6)diameter*length | 85×65×6 |
| 4# rod | (35*6)diameter*length | 85×65×6 |
| 5# rod | (45*6)diameter*length | 85×65×6 |
| 6# rod | (50*6)diameter*length | 85×65×6 |
| 7# rod | (60*6)diameter*length | 85×65×7 |
| 8# rod | (70*6)diameter*length | 85×65×7 |
back vibrator series

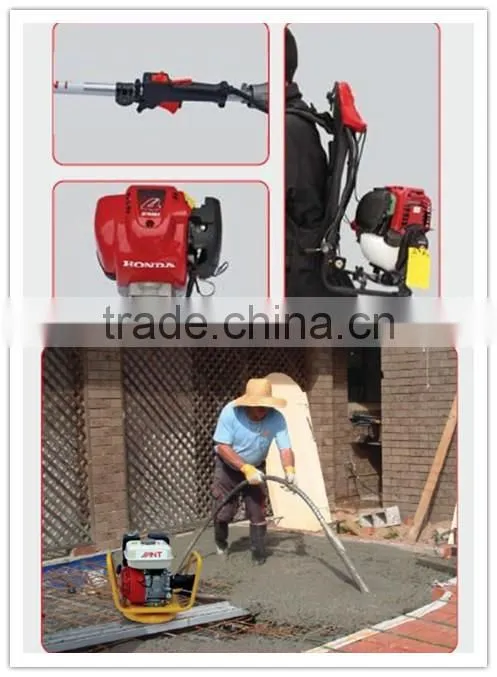

detail of back vibrator
package of back vibrator
certificate of 5.5hp concrete vibrator
workshop of back vibrator
Company introduction
Nantong ANT Machinery Co., Ltd., established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery, it is based in the Qidong city of Jiangsu province, which is located in the beautiful and rich Yangtze river delta
The present leading series of products include power trowel, plate compactors, road concrete cutters, tamping rammers, vibrating pokers, power barrow and so on, they have been widely used in different construction fields
Global market
Europe, America, southeast, Asia and Africa
