Concrete Machine Cutting Manufacturer QG180F With CE

Concrete Machine Cutting Manufacturer QG180F With CE photo-1
Concrete Machine Cutting Manufacturer QG180F With CE photo-2
US$ 565 - 800 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
ANT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name ANT
Model Number QG180F
Cutting Depth 180mm
Diameter of Blade 350/400/450/500mm
Rotary Speed 3600rpm
Voltage 220V
Weight 136KG
Dimension(L*W*H) 1175*620*1100mm
Certification CE
Power Source Gasoline Engine
After-sales Service Provided Overseas service center available
Product Description

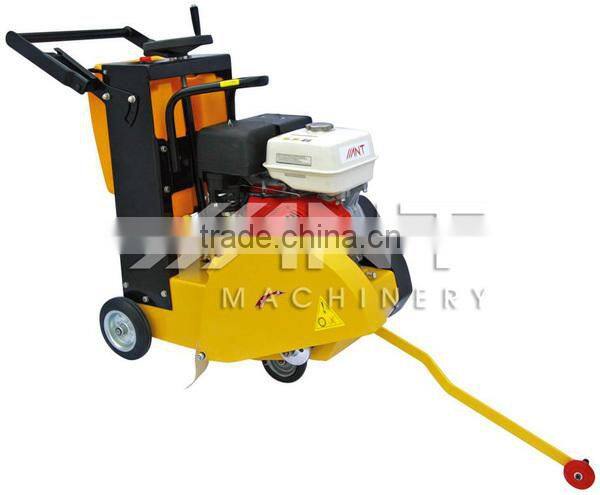

 Concrete machine cutting manufacturer  QG180F with CE

Concrete machine cutting manufacturer QG180F with CE

Specifications

Model QG180F
Engine type 13HP 4-stroke,1cylinder,OHV,air-cooled
Engine Honda B&S and Loncin
Blade diameter 350/400/450/500mm
Water volume 32L
Max Cutting Depth 180MM
Depth adjustment Handle rotation
Weight 136kgs
Dimension 1175*620*1100mm

Concrete machine cutting manufacturer QG180F with CEConcrete machine cutting manufacturer QG180F with CEConcrete machine cutting manufacturer QG180F with CE



Features

1.Rugged adjustable pointer wheel assembly, adaptable for hand cutting, is durable and accurate.
2.Four rubber tyred, cast iron wheels provide stability and accurate cutting.
3.Super-rigid box frame ensures straight cuts while resisting wraping and vibration, prolongs saw and blade life.
4.High quality shaft bearings for longer service life.
5.Easy crank for raising and lowering cutting depth.
6.Hinged front, lift-up blade guard is designed to provide easy blade replacement.
7.Saw position guide helps ensure straight cuts.
8.Water system provides an optimum flow and volume of water to the blade.

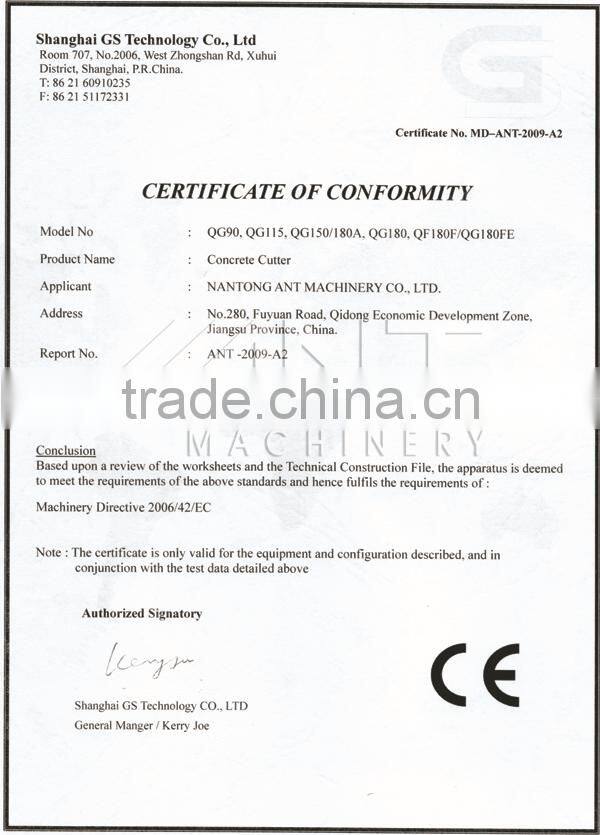

Certifications

 Concrete machine cutting manufacturer QG180F with CE

Packaging & Shipping



Production Flow



Exhibition & show

 Concrete machine cutting manufacturer QG180F with CE

Company Information



NANTONG ANT Machinery Co., Ltd established in 2003, is a modern enterprise specialized in research & development, production and sales of light construction machinery. It is situated in Qidong,Jiangsu province.



The present leading series of products include power barrow, power trowel, plate compactor, road cutter, tamping rammer, lawn mower, concrete vibrator and so on.

Related Products

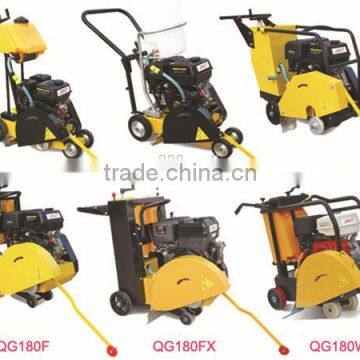

Road Cutter Series

 Concrete machine cutting manufacturer QG180F with CE

FAQ



*Q:What's your MOQ of this term?

  A:1 unit



*Q:Could you stick customer's brand on the products?

  A:Of course,we welcome the OEM orders.



*Q:How long is your warranty?

 A:6 months for used or 1 year after leave factory



*Q:What's your packing?

 A:Solid carton,steel frame with carton cover or wooden case



*Q:What's your payment method?

 A:T/T 30% deposit,the balance against the copy of B/L Or L/C at sight



*Q:What's your delivery time?

 A:Delivery timely about 15-20 days after receiving the deposit







Thanks for your time!

For more details,dont hesitate to contact me or click /.Wish for your inquiry!
