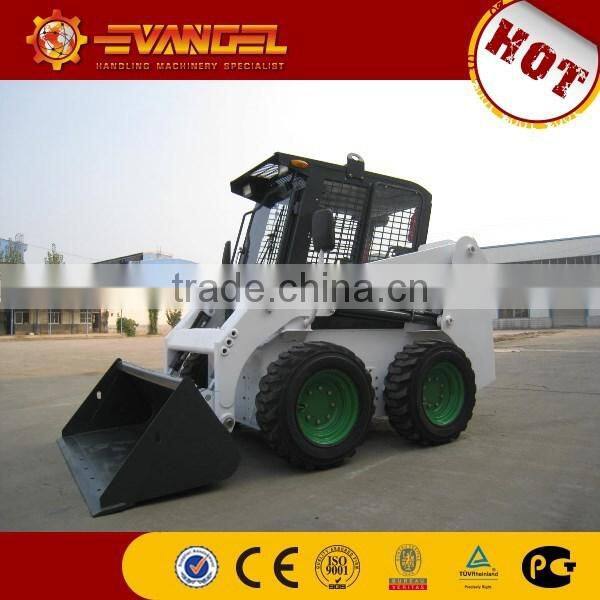

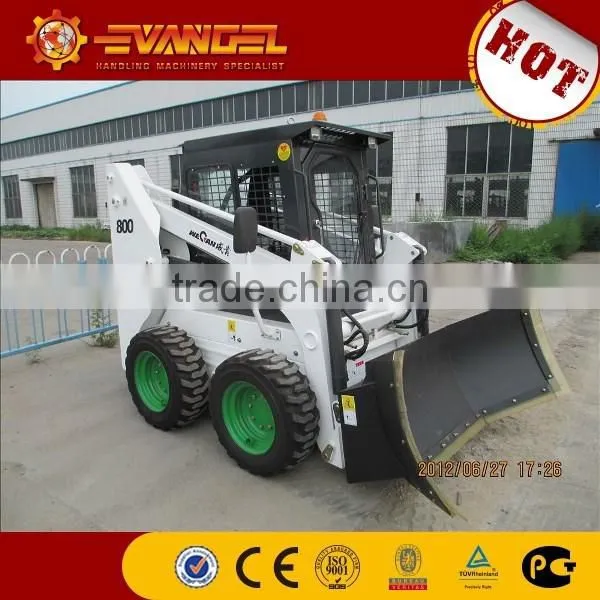

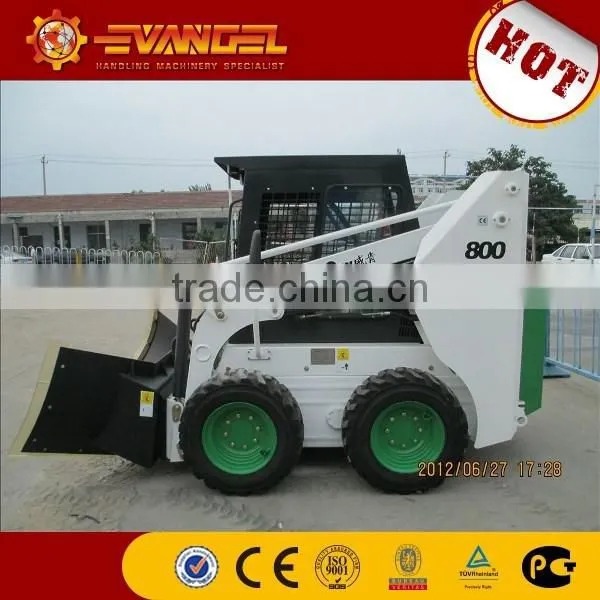

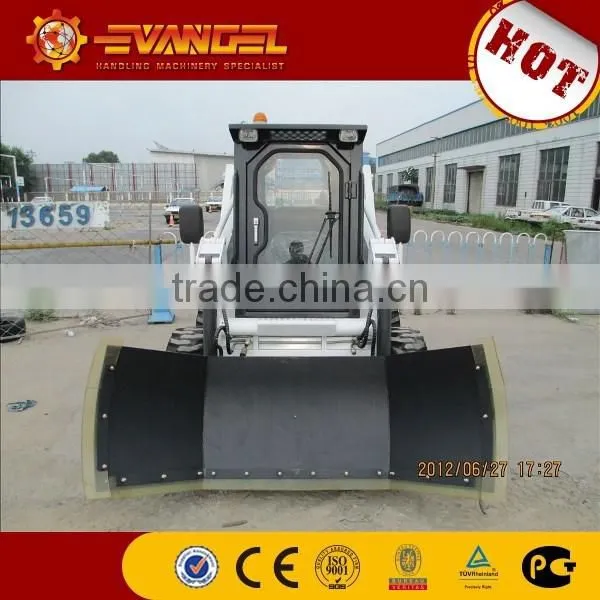

wecan mini skid steer loader with various loading capacity
Main Characteristics
♦ Good performance with competitive price
♦ Turn within its own length
♦ Excellent reach and lift height for truck loading (radial direction)
♦ More than 20 series attachments for option: pallet fork, hydraulic hammer,
backhoe, sweeper, angle broom, 4 in 1 bucket, auger, trencher,
tooth bucket and so on.
♦ Attachment can be used with bobcat type skid steer loader
♦ World famous hydraulic system from America (Sauer pump)
♦ Famous brand engine with EPA or EURO II or III from China and Japan
♦ Multifunctional, maneuverability and reliability
Technical Parameters
General | Brand | WECAN | ||
1 | Model | GM700B | ||
2 | Rated capacity | kg | 700 | |
3 | Rated flow | L/min | 62.5 | |
4 | High flow | L/min | --- | |
5 | Discharge height | mm | 2290 | |
6 | Discharge distance | mm | 419 | |
7 | Power type | Diesel | ||
8 | Control type: | Manual control | ||
Dimensions | 9 | Overall length with bucket | mm | 3360 |
10 | Overall length without bucket | mm | 2630 | |
11 | Overall width with bucket | mm | 1710 | |
12 | Overall width without bucket | mm | 1678 | |
13 | Overall height | mm | 2150 | |
14 | Max. operating height | mm | 3830 | |
15 | Front turning radius | mm | 2033 | |
16 | Front turning radius without attachments | mm | 1272 | |
17 | Rear turning radius | mm | 1590 | |
18 | Wheel base | mm | 992 | |
19 | Tread | mm | 1393 | |
Performance | 20 | Max. Speed | km/h | 11.2 |
21 | Max. load | kg | 1496 | |
22 | Lifting type | Radius | ||
23 | Bucket capacity | M3 | 0.45 | |
24 | Total weight with bucket | kg | 2800 | |
Engine | 25 | Engine model | 498PG engine | |
26 | Power | kw | 45 | |
27 | Rated speed | rpm | 2500 | |
28 | Displacement | L | 3.168 | |
29 | No. of cylinder | 4 | ||
Tire | 30 | Tubeless tire | 10-16.5 | |
