Wecan/QINGONG GM1605 Skid Steer Loader

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier
5Yrs
Wecan/QINGONG GM1605 Skid Steer Loader thumbnail-1
Wecan/QINGONG GM1605 Skid Steer Loader photo-1
US$ 5 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
WECAN
Model Number:
GM1605
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name WECAN
Model Number GM1605
Place of Origin Shandong, China
Type Skid Steer Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 3666*1980*2080MM
Rated Load 1605kgs
Certification CE, ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Wecan/QINGONG GM1605 skid steer loader



Product Description

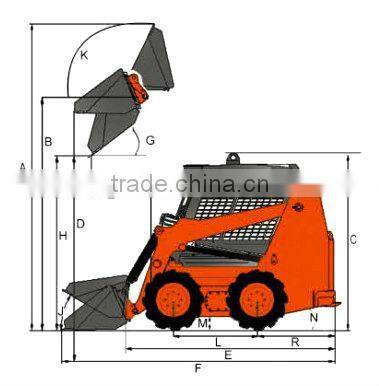

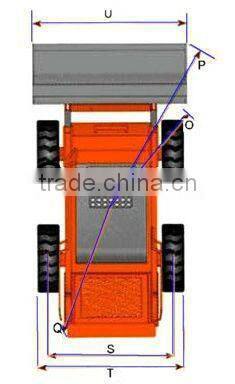

 Specifications

Item

Parameter

NO.

Major

Parameter

Engine Model

1104D-44T

A

Overall Operating Height (mm)

4234

Bore *Stroke (mm)

105*127

B

Height to Bucket Hinge Pin (mm)

3295

Rated Power (KW)

74.5

C

Height to Top of Cab (mm)

2080

Rotating Speed (rpm)

2200

D

Height to Bottom of Level Bucket (mm)

3100

Number of Cylinder

4

D

Overall Length without Bucket (mm)

2878

Max. Torque (n.m)

392

F

Overall Length with Bucket (mm)

3666

Displacement (L)

4.4

G

Dumping Angle at Maxium Height (°)

42

EPA

 III

H

Dumping Height (mm)

2540

Max. Speed (km/h)

10.2/20.4

I

Dumping Reach (mm)

850

Vacuum tire

12-16.5

G

Rollback of Bucket on Ground (°)

27

Operating Load (kg)

1600

K

Rollback of Bucket at Full Height (°)

96

Max. Loading (kg)

3200

L

Wheelbase (mm)

1218

Lifting

Vertical

M

Ground Clearance (mm)

218

Bucket Lifting Force (KN)

2500

N

Angle of Depature (°)

26

Arm Lifting Force (KN)

2900

O

Turning Radius Front Without Bucket (mm)

1540

Total Cycling Time (s)

≤11.2

P

Front Turning Radius (mm)

2200

Bucket Capacity (m³)

0.55

Q

Rear Turning Radius (mm)

1710

Pressure of Working System (bar)

210

S

Tread Width, Centerline to Centerline

1530

Rated Flux (L/min)

88

T

Width (mm)

1864

High Flow Flux (L/min)

158

U

Bucket Width (mm)

1980

Fuel Tank Capacity (L)

82

Packing Type:

No Package

Self-weight witn Bucket (kg)

4260

Packing Details:

2pcs/20CTN, 4pcs/40CTN



Wecan/QINGONG GM1605 skid steer loaderWecan/QINGONG GM1605 skid steer loader

Description

Optional Item

1.EURO III UK  ENGINE 1104D-44T 74KW

2.REXROTH PUMP

3.REXROTH DOUBLE SPEED MOTOR WITH PARKING BRAKE

4.REXROTH CONTROL VALVE WITH SAFTY LOCK

5.REXROTH HYDRAULIC JOYSTICK

6.AMERICA ELECTROMAGNETIC VALVE

7.AMERICA HYDRAULIC BALANCE VALVE

8.AMERICA BEARING

9.AMERICA 3 STAGE AIR FILTER

10.CLOSED CAB WITH HEATER,FAN,MIRROR & WARNING LIGHT

11.REVERSE BUZZER

12.TUBELESS TIRE 12-16.5

13.OUT CAB MIRROR

14.SPECIAL BIG ALUMINIUM RADIATOR

1. AIR CONDITIONER(ONLY COOL)

2. SOLID TIRE

3. NO OUT CAB MIRROR

4. TURNING LIGHT



4 in 1 Bucket



Main features:

• Utility, construction and compact tractor
• Functions as a loaders bucket, clam, grapple, dozer, box scraper and bottom dump bucket
• Strong hinges and pins to distribute load
• 100,000 yield light weight material contstruction allows more load capacity
• Optional bolt-on tooth bar available

Specifications:

MODEL

010460

010466

010472

WIDTH     A  (mm)

1584

1736

1889

LENGTH   B(mm)

768

768

768

LENGTH    C(mm)

879

879

879

OPENING  RANGE  D(mm)

718

718

718

PRESSURE OF WORKING SYSTERM  (MPA)

20

20

20

CLAMP FORCE    (N)

8230

8230

8230

OPERATING WEIGHT (Kg)

385

420

460

CAPACITY       (m3)

0.4

0.44

0.48

Wecan/QINGONG GM1605 skid steer loaderWecan/QINGONG GM1605 skid steer loader
