Home > Products > Earthmoving Machinery > mini tractor loader CHANGLIN ZL50G-6 chinese front end loader

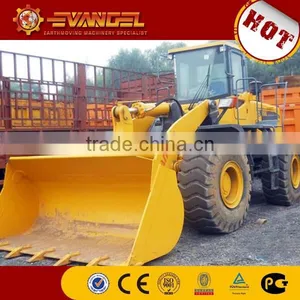

mini tractor loader CHANGLIN ZL50G-6 chinese front end loader
- 1000 Unit / Units per Month
- shanghai
- T/T Credit Card
Product Details
Condition: | New | Brand Name: | changlin | Model Number: | ZL50G |
Place of Origin: | Hunan, China | Type: | Other, wheel loader | Moving Type: | Wheel Loader |
Dimension(Long * Breadth * High): | 8365*2946*3450mm | Rated Load: | 16300kgs | Certification: | ISO & CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
nude package
Product Description
mini tractor loader CHANGLIN ZL50G-6 chinese front end loader
Overall Dimension | |||
1 | Length(with bucket on ground) |
| C6121 engine |
|
| 8365(mm) | 8215mm |
2 | Width(to outside of wheels) | 2800(mm) 8215mm | |
3 | Bucket width | 2946(mm) | |
4 | Height(To the top of the cab) | 3450(mm) | |
5 | Wheel base | 3350(mm) | |
6 | Tread | 2200(mm) | |
7 | Min. ground clearance | 450(mm) | |
Main Technical Specification | |||
1 | Rated load | 5000(Kg) | |
2 | Operating weight | 16300KG | |
3 | Rated bucket capacity | 3.0(m3) | |
4 | Max. breakout force | 160kN | |
5 | Max. dump clearance | 3050(mm) | |
6 | Dump reach | 1107(mm) | |
7 | Dump angle at any position | ≥450 | |
8 | Digging depth(with bucket bottom horizontal) | 165(mm) | |
9 | Min. turning radius | ||
| (1) Outside of bucket | 6675(mm) | |
| (2) Outside of rear wheel | 5879(mm) | |
10 | Pivot angle frame | 400 | |
11 | Oscillating angle of rear axle | +13o |
Company Profile
Shanghai Evangel Industrial Co., Ltd. is a leading Chinese construction machinery exporter, affiliated with Evangel International Machinery Limited, located in the downtown of Shanghai City. Since our company was founded, based on the advantage of XCMG which is the No.1 Chinese construction machinery manufacturer, we continually introduce Chinese excellent construction machinery enterprises and their products to international markets, such as SANY, ZOOMLION, CHANGLIN, LIUGONG, SDLG, HOWO, SHANTUI, HBXG, YTO, BEIBEN etc. We not only make more international customers know and approbate our products, but also gradually build up friendship with construction machinery customers all over the world.
Our Strengths are as follows:
(i) Eight years professional experience in international trading and rich knowledge in construction machinery & heavy equipment industry, which enable us to turn customer inquiries into final products and export them to numerous countries and regions without barriers;
(ii) A well educated and friendly sales team with international vision, members of which can speak fluent multiple languages, such as English, Spanish, Portuguese, Russian, Arabic and French etc;
(iii) Strong long term dealership from various top manufacturers, assuring that all our products are original brand new ones with competitive price;
(iv) Excellent logistics services (by sea, air, railway or road), ensuring timely delivery of consignments all over the world;
(v) Comprehensive after-sales service, including one year warranty, spare parts supply, installment and maintenance, and training;
(vi) An expertly managed ERP system and a well coordinated quality control system to satisfy various client requirements.
EVANGEL has passed the international quality management system of ISO9000, CE, SGS, UL and other products certification. We have an excellent after-sales service system in the interests of customers to establish good strategic partnerships with agencies around the world. We won the good reputation from reliable quality, competitive price and excellent after-sales service. Our export revenue increases constantly every year, and our products have already entered nearly 100 countries across the continents of South America, Africa, Middle East, Australia, Russia, Middle Asia, South Asia, Southeast Asia, and East Europe. We sincerely hope to cooperate, develop together and build a good future with you.
EVANGEL, your best choice for construction machinery in China!
