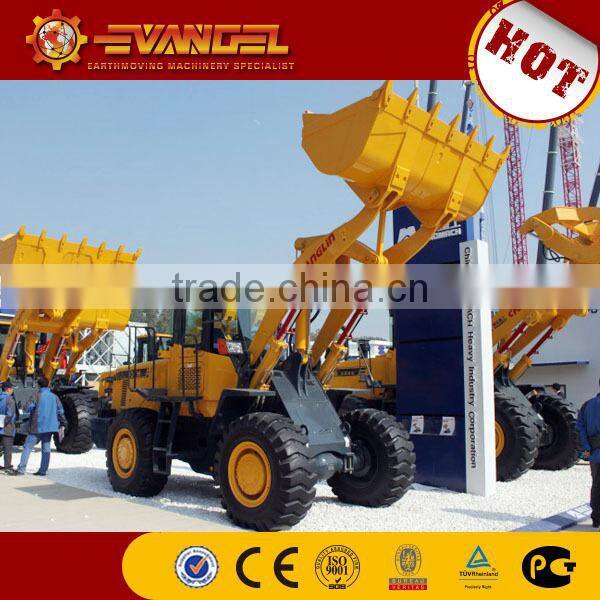

china made 5TChanglin 955 wheel loader
1. Engine type: WD10G220E23 engine
2. Rated power: 162Kw
3. Bucket capacity: 2.5~4.5m3 .
4. Operating weight: 16500kgs
Parameter:
| 1 | Bucket Capacity | 2.8~4.5m3 |
| 2 | Rated Load | 5000KG |
| 3 | Max.digging force | 160KN |
| 4 | Max.traveling force | 150KN |
| 5 | Operation weight | 16500KG |
| 6 | Overall Dimension | 7920x2800x3500MM |
| 7 | Engine Model No | WD10G220E23 |
| 8 | Rated Power | 162KW |
| 9 | Rated Speed | 2200r/min |
| 10 | Min. Fuel Consumption | ≤210g/kw.h |
| 11 | Max.Torque | 900N.m |
| 12 | Shifts(forward/reverse) | F2/R1 |
| 13 | Forward Traveling Speed | 0~12.1km/h 0~37.4km/h |
| 14 | Reverse Traveling Speed | 0~16.5km/h |
| 15 | Max. grade ability | 30° |
| 16 | Steering angle | ±38° |
| 17 | Min. steering radius | 5970mm |
| 18 | Dumping clearance | 3050mm |
| 19 | Dumping reach | 1107mm |
| 20 | Displacement of redirector | 1000ml/r |
| 21 | Operation pressure | 146Mpa |
| 22 | Lifting time | 6.2s |
| 23 | Lowering time | 3.8s |
| 24 | Dumping time | 1.8s |
| 25 | Standard tyre | 23.5-25-16PR |
| 26 | Tyre pressure | 0.274-0.294Mpa |

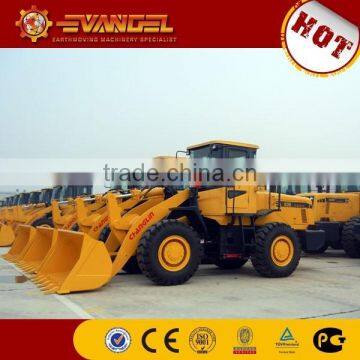

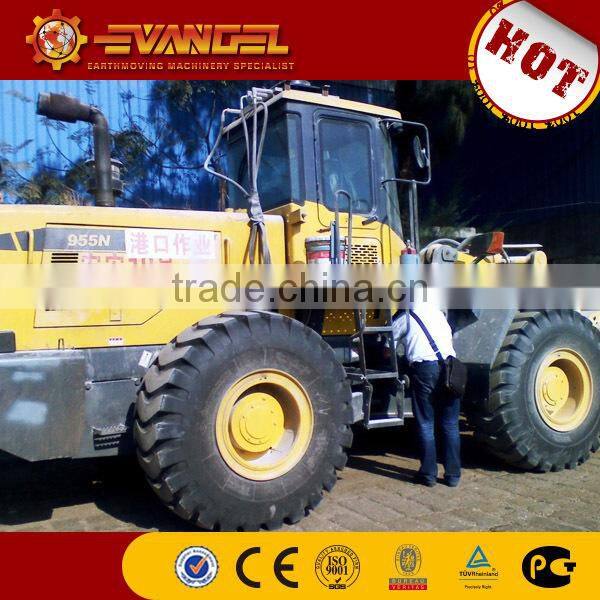

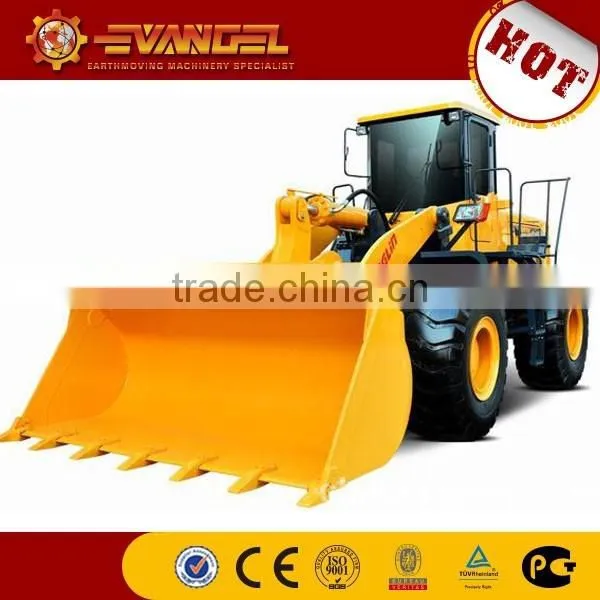

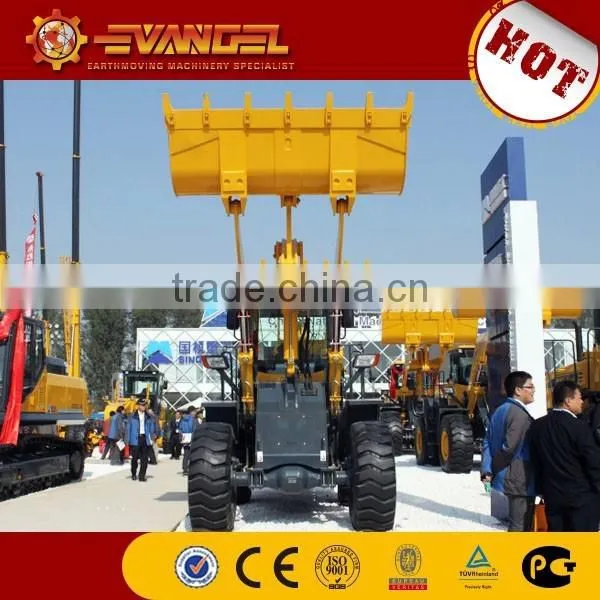

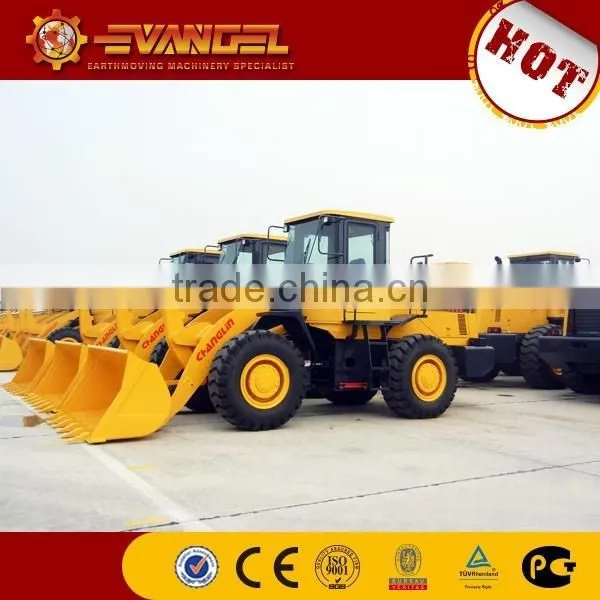

Photos:
Changlin Wheel Loader | ||||
Model |
Engine Model |
Rated power |
Standard bucket capacity |
Operating weight |
ZL30H |
Dongfeng |
87KW |
1.7m³ |
10200kg |
933 |
Yuchai YC6B125-T20 |
92KW |
1.7m³ |
10200kg |
947H |
Dongfeng |
128KW |
2.3m³ |
13200kg |
957H |
Shangchai C6121 |
162KW |
3.0m³ |
16700kg |
967H |
Shangchai |
177KW |
3.5m³ |
18600kg |
Feature:
1). Best Matched Drive System
Adopted ShangChai SC11CB220G2B1 engine that features power reservation ,low consumption and good power performance.
2). Advanced &Reliable Brake System
Axle Housing and hub reduction adopted separate structue that features low maintenance cost.
Dual piping service brake with caliper disc brake ensure safety and reliability.
3).High Efficiency Hydraulic System
Advanced radiation system of hydraulic system is adpoted for working under high ambient temperature.
Hydraulic tank with vacuum device ensures easy maintenance and fixing of hydraulic system.
Convenient maintenance
The independent chamber design of the hydraulic oil tank return circuit guarantees the conveninence of the maintenance.
The hood adopts the large side door of sliding upward, featureing large opening angle, and more convenient for access.
The classic dead axle transmission features maturity, stability, and easy maintenance. The parts are easy to replace.
Comfortable operation
The cab features luxury decoration, large space and excellent visibitity.
The adjustable seat features comfortability and elegance.
Key breakthrough in the leading level of the industry.
Starting the vehicle manufacturing technology first in China; including metal cover part and electrophoretic coating, and featuring high residual value.
