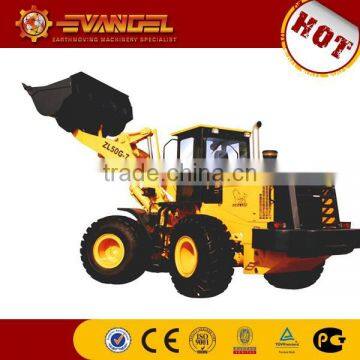

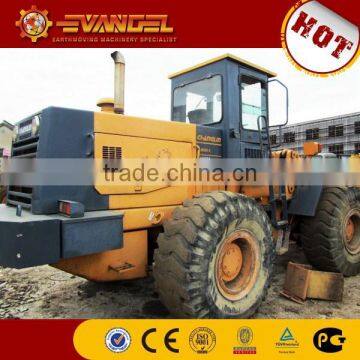

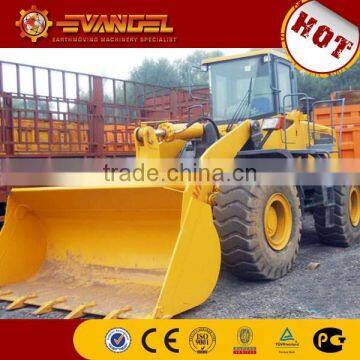

Earth-moving Machinery Changlin ZL50G Wheel Loader 5 Ton

Name: Earth-moving Machinery Changlin ZL50G Wheel Loader 5 Ton
Brand: changlin
SKU: 140713952
Availability: InStock

Shanghai Evangel Industrial Co., Ltd. Gold Verified Supplier

5Yrs

US$ 1,000 - 50,000 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

changlin

Model Number:

ZL50G

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name changlin

Model Number ZL50G

Place of Origin Hunan, China

Type Other, wheel loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 8365*2946*3450mm

Rated Load 16300kgs

Certification ISO & CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Earth-moving machinery changlin ZL50G wheel loader 5 ton

Overall Dimension
1	Length(with bucket on ground)		C6121 engine
		8365(mm)	8215mm
2	Width(to outside of wheels)	2800(mm) 8215mm
3	Bucket width	2946(mm)
4	Height(To the top of the cab)	3450(mm)
5	Wheel base	3350(mm)
6	Tread	2200(mm)
7	Min. ground clearance	450(mm)
Main Technical Specification
1	Rated load	5000(Kg)
2	Operating weight	16300KG
3	Rated bucket capacity	3.0(m3)
4	Max. breakout force	160kN
5	Max. dump clearance	3050(mm)
6	Dump reach	1107(mm)
7	Dump angle at any position	≥450
8	Digging depth(with bucket bottom horizontal)	165(mm)
9	Min. turning radius
	(1) Outside of bucket	6675(mm)
	(2) Outside of rear wheel	5879(mm)
10	Pivot angle frame	400
11	Oscillating angle of rear axle	+13o
