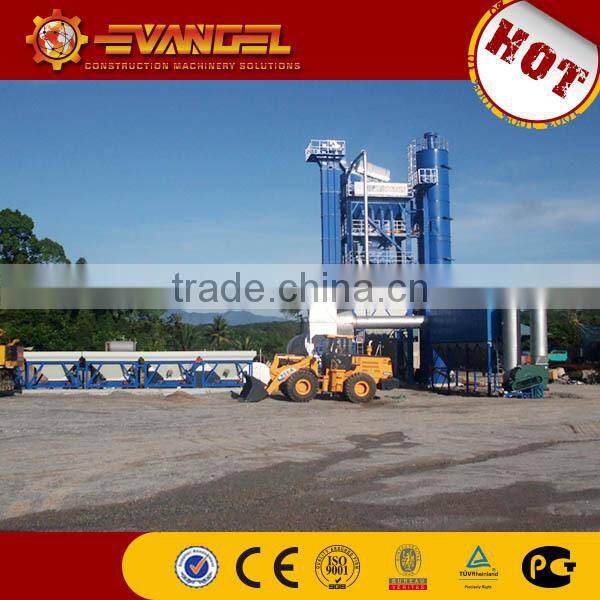

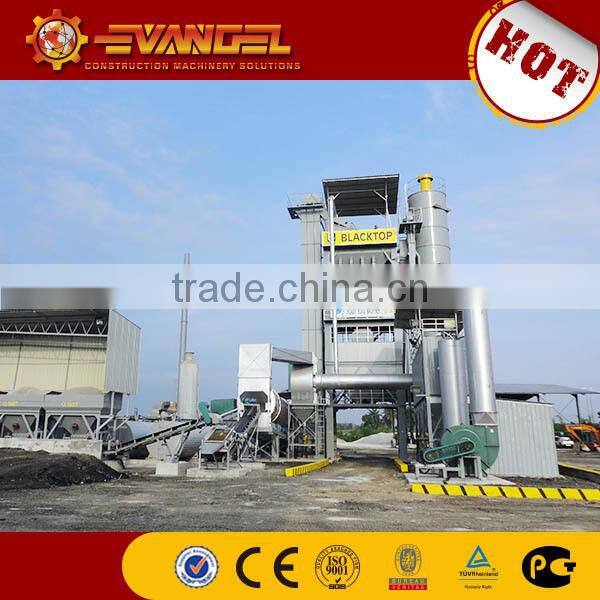

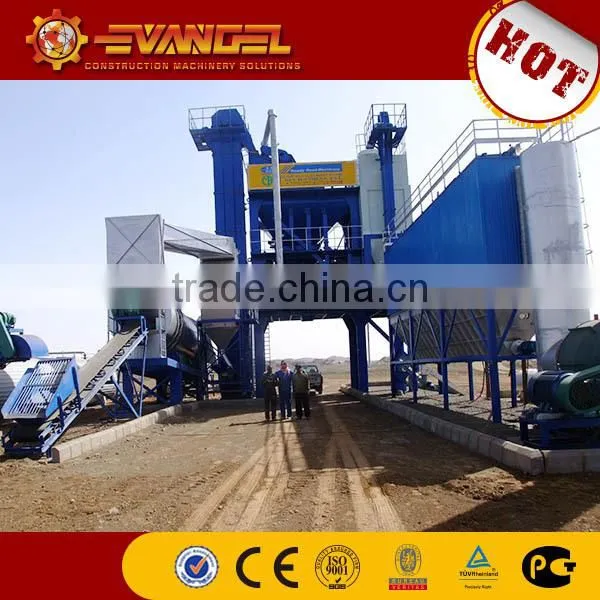

Features of ROADY RD175X 175TPH Stationary Asphalt Drum Mix Plant for sale, Asphalt Mixing Plant best price
1. The mixer use European technology; big obliquity, strong screw flow, solid three- dimensional compulsory mixing, which will form well boiling layer and consequently achieve well-proportioned mixing during a short time.
2. Asphalt weighing and spraying device use high-speed flux asphalt pump to realize high-pressure shower spraying asphalt, making hot aggregate, filler and asphalt mixed more quickly, equably; shorten the mixing time and enhance the ourput.
3. Vibrating screen use whole airproof vibrating screen whose eccentricity shaft is placed above and its swing range can be regulated. This can realize convenient maintenance.
4. The hot aggregate elevator is with our patent structure( patent No.: 200520128222.8). This part is for double-row double-ear chains, guide sliding wearable material hopper elevating, composite discharging the material with reliable performance.
5.Cold aggregate supply system use Modularize design, convenient transportation and installation and can adjust cold aggregate feeding position; use frequency conversion timing motor for feeding, react sensitively; adjust feeding exactly;
6. Filtering system use two-stage whole dust filtering project, efficiently control dust to grade;
use imported filtering bag, waterproof, oil-proof, well heat-resistant, which efficiently protract the using life.
7.Electric control system use International famous brand and global high quality electric control parts to isnure the capacity of the equipment;With fault-detecting and diagnosis alarming ability, convenient for saving the directions for material supplying proportion and printing report forms;
8.Drying drum:The material-raising blades design is reasonable and the burning area structure is with patent technology (patent No.: 200520031574), which makes cold aggregate mix more equably, and with high heat efficiency;
Parameter of ROADY RD175X 175TPH Stationary Asphalt Drum Mix Plant for sale, Asphalt Mixing Plant best price
|
No.
|
Parts Name |
Parts total power (KW) |
Remark
|
|
1 |
Cold aggregate supply system |
13.5 |
|
|
2 |
The tilted belt feeding conveyer |
5.5 |
|
|
3 |
Drying drum |
74 |
|
|
4 |
Oil burning system |
96.5 |
|
|
5 |
Hotaggregate elevator |
15 |
|
|
6 |
Bag dust catcher system |
144.12 |
|
|
7 |
Mixer tower assembly |
vibrating screen |
11 |
|
Mixer |
74 |
|
||
Asphalt spraying system |
15 |
|
||
8 |
Filler supply system |
8 |
|
|
9 |
Pneumatic system |
11 |
|
|
10 |
Asphalt supply system |
32.95 |
|
|
The plant total installed power |
511.57kW |
|||
