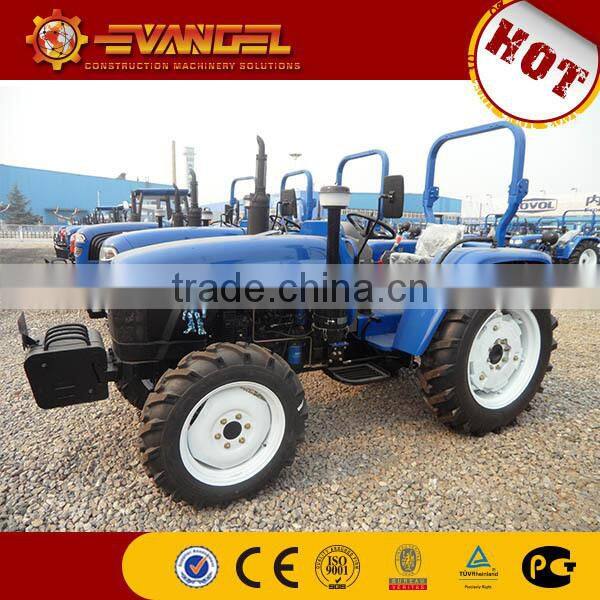

40HP FOTON LOVOL Tractor TB404

Drive type

4*4

Overall dimension(L * W * H)

3980*1650*(2130/2520)

Wheelbase (mm)

1990

Track(front/rear)

1250/1200-1500

Track(front/rear) regulating method

non-adjustable /stepless

Min.Ground clearance(mm)

310

Min.operating weight (with cab)(kg)

2335

Min.operating weight (without cab)(kg)

2135

Counterweight (max)(front/rear)

108.144/300.360

Gears(forward/reverse/creeper)

8+4/8+8/16+8/12+12

Theoretical speed of each gear(forward/reverse)

2.65-34.78/3.94-12.1;2.65-34.78/2.33-30.49;0.43-34.78/0.65-12.10;2.46-32.73/2.15-28.69

Engine

Brand

Lijia, Xinchai, Quanchai

Engine type

4-cylinder

Intake mode

Natural intake

Number of cylinders

4

Bore

90

Stroke

110

Displacement(L)

2.54

Engine rated power kW@rpm

29.4

Rated speed

2400

Type of air cleaner

Dry or wet type

Type of cooling system

Forced water-cooled

Max. Torque@ revolving speed (rpm)

146@1600~1800

Specific fuel consumption rate at rated conditions (g/kW.h)

≤248

Fuel tank capacity (L)

38

Steering brake system

Type of steering system

Hydraulic/mechanical

Type of steering gear

Cycloid orbitrol steering gear

Type of braking system

Disc type
