KAIFENG RAINBOW MACHINERY CO.,LTD

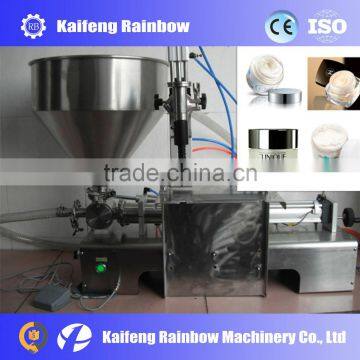

Paste Filling Machine is made of stainless steel ,it is with good polishing properties, corrosion resistance.it is easy to clean, it is very suitable to solve health problems in the production process.
Application:slurry paste sauce ,vinegar ,soy ,sauce packet ,milk,water.ect.
♦Features♦
220/110V 50/60HZ (if you need 110v , please inform us ,then we will make 110v for you )
1) Approximate Speed 1000 pcs/H
2) All Parts in Contact with Product are Food Grade (SS 304/316)
3) Stainless Steel Construction
4) Pneumatic Operation
5) Silica gel O-ring System(can bear 200 Celsius degree)
6) Piston Feed Speed Adjustment
7) No-drip Option Included and Installed
8) Filling Accurate (1-3ml)
9) Easy to Clean and Maintain
10) Sanitary Stainless Steel
♦Control Panel♦
1)Automatic liquid packing machine
2) Air Pressure Gauge
3) Air Intake Pressure Adjustment
4) Piston Volume Adjust
♦Parameter Date♦
Filling Range | 5-50ml,25-125ml,50-250ml,100-500ml |
Production Capacity | 1000 bag/H |
Air Pressure | 0.4MPA |
Function | Weighing,packing and sealing |
Filling Accuracy | 1-3ml |
Air Pressure Range | 4-6kg/cm2 |
Filling Head | Single Head |
Diameter of Hopper | 41cm |
Sealing length | 3-17cm |
Voltage | 220v,50HZ(110v can be customized) |
Material | Stainless steel |
Apply for | slurry paste sauce ,vinegar ,soy ,sauce packet ,milk.ect |
Package Size | 135*60*105cm |
Package Weight | 60KG |
It is widely used in a variety of liquid paste, dope, sauce and granule. Such as beverages containing fruit pulp, honey, syrup, jam, peanut butter, sesame paste, tomato sauce, chili sauce and a variety of cream
pressure | speed | pow |
0.5-0.7MPa | 10-30 bottles/min | 300w |
Model:5-100ml,10-280ml,20-500ml,100-1000ml,500-2800ml,1000-5000ml | ||
1. .
About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.
we can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
