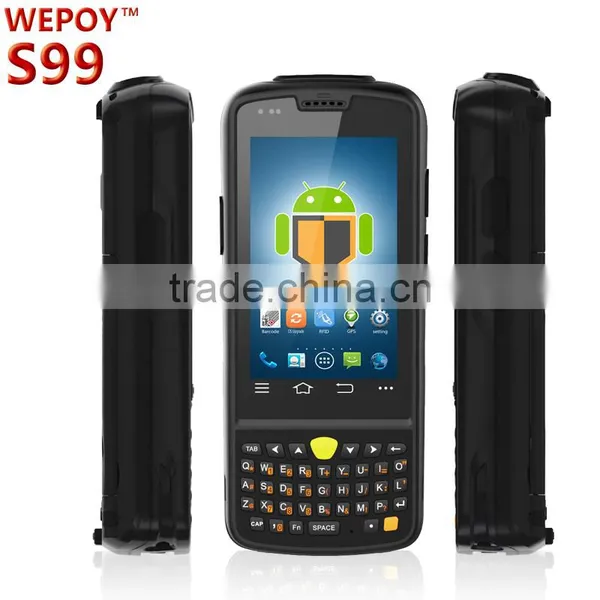

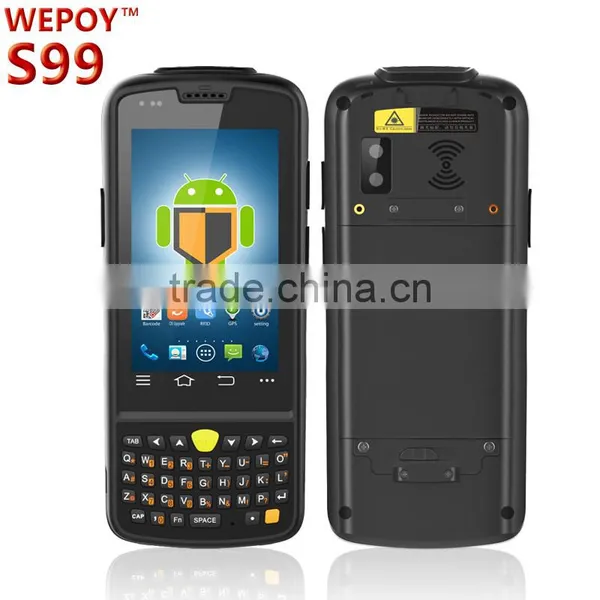

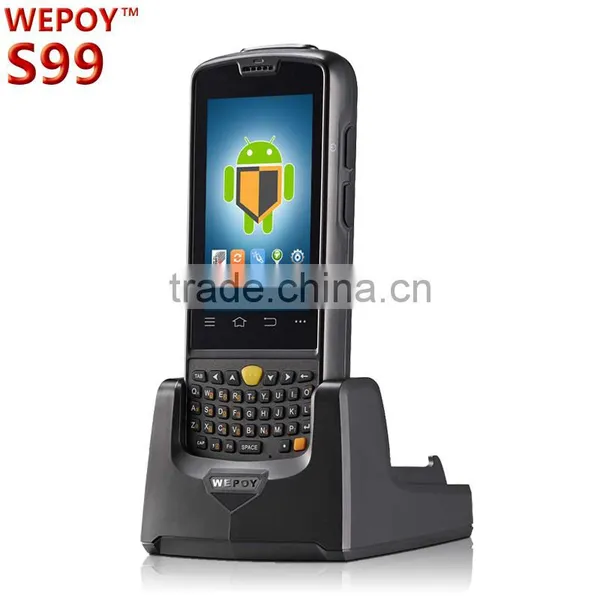

Rugged 4G LTE NFC 1D/2D Android PDA barcode scanner
| Enterprise Mobile Computer S98 | |||
|
Performance Characteristics |
Operating System | Android 5.1 | |
| CPU | Qualcomm Quad Core | ||
| Display | 4 in. WVGA (480 * 800) TFT-LCD, capacitive dual touch | ||
| Panel | Capacitive screen | ||
| RAM | 2GB | ||
| ROM | 16GB iNAND Flash | ||
| Extended Memory | Micro SD slot, up to 32 GB | ||
| Physical Characteristics |
Dimensions (LxWxD) |
153mm * 75mm * 29mm / 6.02 * 2.95 * 1.14in. | |
| Weight |
286g / 10.08oz. (includes main battery); main battery, pistol (excludes battery)) main battery, pistol (includes battery)) |
||
| Keyboard |
3 function buttons, 3 side buttons, 4 TP touch key-press buttons |
||
| Input | Chinese/English, Touch input and keyboard input | ||
| Promting Mode | LED,vibration ,loud speaker | ||
|
Barcode Scanner |
1D Linear Scanner (Optional) |
1D CCD scanner: UPC/EAN, Bookland EAN, Code 128, Code 39, Code 93, Code 11, Interleaved2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Inverse 1D, MSI, GS1 DataBar, etc.1D laser scanner: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ect. |
|
|
2D Imager Scanner (Optional) |
1D Symbologies: UPC/EAN, Bookland EAN, Code 128, Code 39, Code 93, Code 11, Interleaved2 of 5, Discrete 2 of 5, Chinese 2 of 5, Matrix 2 of 5, Inverse 1D, MSI, GS1 DataBar, UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ect.2D Symbologies:PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, MicroQR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX),ect. |
||
|
Radio Communication |
WiFi | WI-FI IEEE802.11b/g/n,internal antenna | |
| Bluetooth | Bluetooth v2.1+EDR Bluetooth v3.0+HS Bluetooth v4.0 Low Energy (LE) |
||
| WCDMA |
4G LTE/WCDMA/GSM Frequency: GSM/GPRS 900/1800MHz or 850/900/1800/1900MHz |
||
| Power | Main Battery | Rechargeable li-ion polymer battery (3.7 V/3,200 mAh) | |
| RTC Battery | Supports to keep clock at real time | ||
| Options | Camera | 8.0 mega pixels,automatic focus,with LED flash | |
| GPS | GPS (Embedded A-GPS) | ||
| PSAM security | Baud rate:9600, 19200, 38400, 43000, 56000, 57600, 115200 Protocol:ISO7816 Slot: 2 slots (maximum) |
||
|
RFID reader (Optional) |
LF readers: ( Desfire D40/ D41 / D81), CPU_A card (tags and environment dependant) |
||
|
Biometric fingerprint (optional ) |
Sensor: TCS2SS Sensor type:Capacitive, area sensor Function:Enrollment, compare, deletion etc. Resolution:508DPI Memory:1,000 PCS fingerprints |
||
|
User Environment |
Operating Temp | -10 to 50℃/14 to 122℉ | |
| Storage Temp | -40 to 70℃/-40 to 158℉ | ||
| Humidity | 5% RH ~ 95% RH (non-condensing) | ||
| Sealing | IP64 | ||
| Drop Grade | 1.2m | ||
| Roller Drop Test |
1,000times, 0.5m/1.64ft tumbles, rolling by six contact surface, meets and exceeds |
||
|

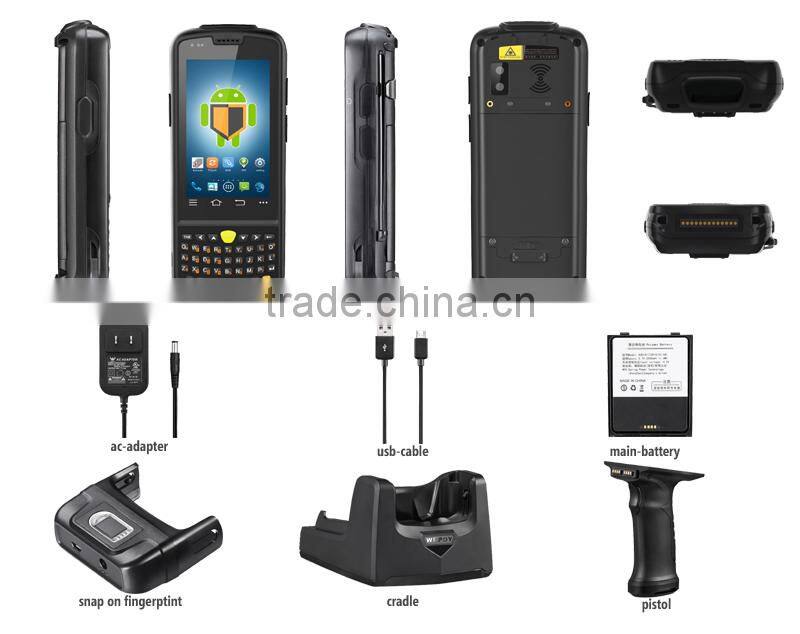

Peripherals Accessories |
Expansion | Micro SD/TF X 1(up to 32 GB), SIM x 1, PSAMx 2 slots (maximum)(Optional) | |
| Interfaces | USB Micro-B, Client mode/Host mode (Optional) USB Mini-B (Optional), RS-232 interface |
||
|

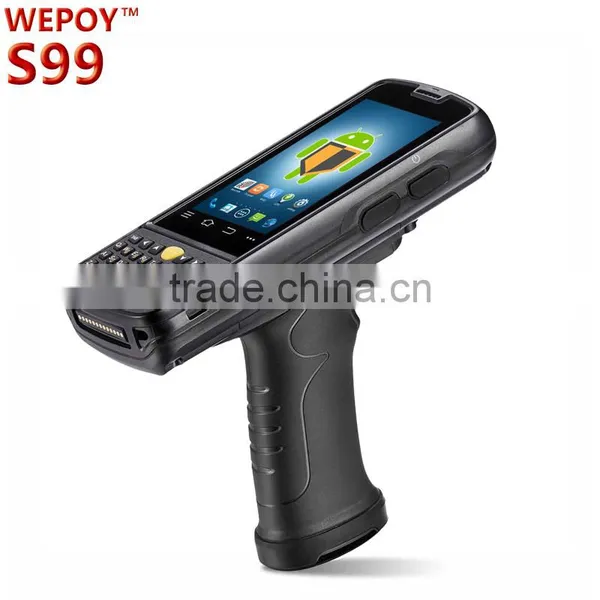

Pistol Grip (Optional) |
rechargeable li-ion polymer battery 3.7V, 5200mAh | ||

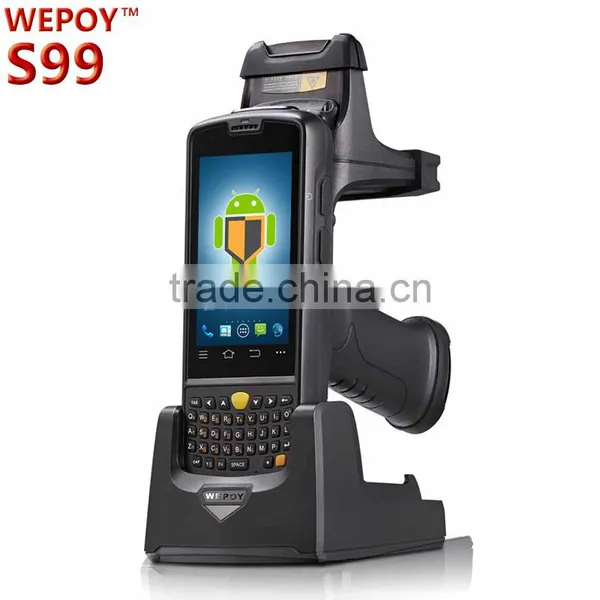

| Cradle(Optional) |
Supports to charge one unit of device and one spare battery simultaneously |
||
| Regulatory | Certification | CE, RoHS, FCC, IP64, Drop Specifications, ISO9001 | |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | ||
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or phone technical support service.
4. Consulting Services help clients evaluate hardware, software and integrated services.
5. Onsite technical support service if online and phone services are not accessible.
FAQ:
Q The device won’t turn on.
AFirst please check if battery is installed correctly and battery rear cover is covered.
If there is battery and battery is installed correctly ,The program may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
QThe devicecan’t be charged.
AAMake sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
QHow do I get the repair service?
AYou can send the device via a delivery service to our headquarter after confirmation.
When sending the package, make sure you pay for the shipping
fee in advance.When the repair is finished, headquarter will cover the shipping cost.
QMy battery drains very quickly.
A The battery can be drained quickly when the Wi-Fi or Bluetooth is
turned on.If it drains quickly regardless of using the options above,
please purchase another battery.
QThe device won’t connect GPRS?
AFirst check if SIM card is installed correctly and wireless function is opened.
Then make sure the access point is set correctly and SIM card has enough fee.
If it still doesn’t work , then check SIM card is damaged or not.
