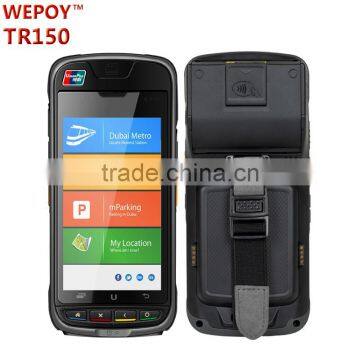

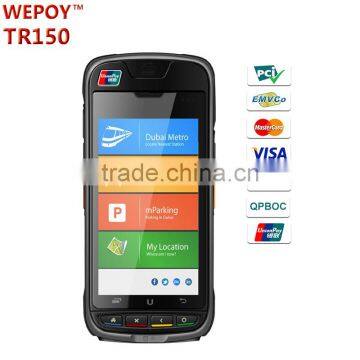

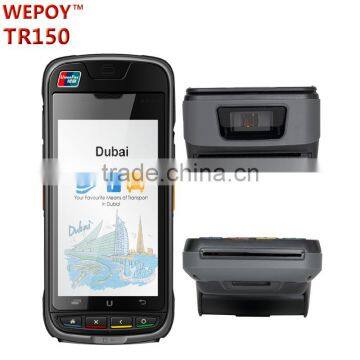

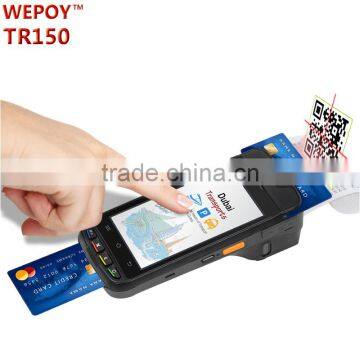

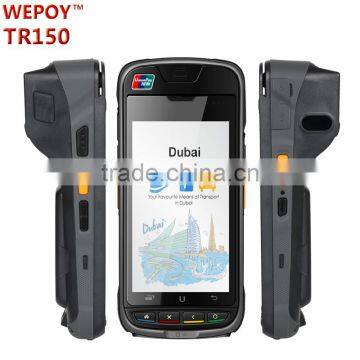

4G LTE EMV android handheld pos terminal devices with printer barcode scanner NFC GPS
| All-in-one Android Payment Terminal TR150 | |||
|
Performance Characteristics |
Operating System | Android 4.3 supports multi-language | |
| CPU | Quad-Core 1.2GHz | ||
| Display | 5.0 inch TFT-LCD HD (720 x 1280) color screen | ||
| Panel | capacitive touch screen, can work with gloves and wet | ||
| RAM | 1GB | ||
| ROM | 4GB | ||
| Extended Memory | Micro SD slot, up to 32 GB | ||
|
Physical Characteristics |
Dimensions (LxWxD) |
184mm x 79 mm x 29 mm (max 51.5mm) | |
| Weight | 490 g | ||
| Keyboard |
1.Front : User define button x 1 , Cancel button x 1 , Confirm button x 1 , Clear button x 1 2.Side : SCAN button x 2, The volume switch button, ON / OFF button |
||
| Input | Muti-language. | ||
| Promting Mode | Green, red and blue LED, vibration, speaker | ||
| Payment | Magcard | Conforms to the ISO7811, and supports triple track (tracks 1/2/3), bi-directional | |
| Smart Card Reader | ISO 7816 | ||
| Contactless |
Supports 10MHz~20MHz frequency, and reading access time less than 300 milliseconds |
||
| Printer | Printing speed | 50~70mm/s, and supports barcode printing | |
| Paper Width | 58mm printing paper, 203dpi / 8dot / mm; | ||
| Roll Diameter | 30mm,optional 40mm | ||
| Barcode Scanner | 1D Linear Scanner |
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5; Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; Trioptic Code 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded |
|
|
2D Imager Scanner (Optional) |
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1-128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32,CODE 93, CODE 11, Inverse 1D, GS1 DataBar, 2D Symbologies: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, MaxiCode, QR Code, Aztec, Aztec Inverse Postal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
||
|
Radio Communication |
WiFi | 802.11 b/g/n wireless communication | |
| Bluetooth | Bluetooth 4.0 | ||
| WCDMA |
GSM:850/900/1800/1900 MHz UMTS/HSPA+: 850/1900/2100 MHz |
||
| Power | Main Battery |
Rechargeable 7.4V, 2800 mAh lithium polymer battery pack (Typical Operation time ≥8 hours) |
|
| RTC Battery | Supports to keep clock at real time | ||
| Adapter | 9V/2.6A | ||
| 0thers | Camera | 5MP camera with LED flash and auto-focus functio | |
| GPS | GPS,Supports A-GPS,GNSS | ||
| User Environment | Operating Temp | 0℃ ~ 50℃ | |
| Storage Temp | -20℃ ~ 60℃ | ||
| Humidity | 5% ~ 95% (non condensing) | ||
| Drop Grade | 4ft./1.2m | ||
| Roller Drop Test | 500 times (1000 hits) | ||
|
Peripherals and Accessories |
Expansion | Micro SD/TF x 1(a maximum of 32 GB), SIM x 1, SAM x 2 | |
| Interfaces | Mini USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1 | ||
| Regulatory | Certification | CE , FCC, ROHS, EMV L1 &L2, PCI 4.1, China UnionPay approved | |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | ||
FEATURES:
Android 4.3
Integrated 2" Thermal Printer
EMV Level 1&2,PCI Approved
1D&2D Barcode Scanner
1.2m Drop Tolerance
5” Sunshine Visible Capacitive Touch Screen
Glove & Wet Touchscreen Operation
5MP Auto Focus Camera
GPRS, HSPA+ ,Wifi, Bluetooth
RFID(HF) & NFC
Q: How about your product quality?
A: Our cumulative shipments is more than 600,000 pieces. Trust the choice of many well-known companies.
And we suggest you buy sample for testing and comparison.
Q: How can I become your agent?
A: Welcome to become our agent. Please contact with our sales for application form for our evaluation.
Q: How to buy?
A: Contact with us, we or our agents in some regions will provide the products.
Q: What is the Minimum Order Quantity(MOQ)?
A: 1 pcs. twice sample orders are available.
Q: Can you provide SDK?
A: Yes. We will provide free SDK for all devices.
Q: How can you provide technical support?
A: 7*24 Online support. If necessary, on site support will be offered.
Q: What’s the lead time? (How long do you need to prepare my goods?
A: 4-7days for sample orders. 20-40days for mass production orders (based on different quantities).
Q: How will you deliver?
A: Decided by you. By air or by sea. In the mean time, we cooperate with international expresses
such as DHL, UPS, FedEx, TNT to enable our customers get their goods rapidly.
Q: How long do I need to wait before my goods arrive?
A: 7-9 days for air transportation, 4-6 days for international express. 20-40 days for sea transportation.
Q: How long can I use before I need to recharge the battery?
A: Working time: up to 9 hours for continual scanning;
Standby time: Up to 120 hours (5 days);
Times will vary based on user settings, feature use and network configuration.
Q: What is the cost for your OEM service?
A: No need to pay extra for our OEM service if order qty over 1000pcs. Further discussion of other quantity.
Q: Can you offer ODM service?
A: Yes.We have more than 100 R&D staffs. And we have offered ODM services to top brands in the world.
Q: What payment methods do you accept?
A: T/T, Western Union, Paypal, etc.
Q: What is your warranty?
A: 12 months for main device, 6 months for accessories.
