80mm bluetooth thermal wireless mobile printer

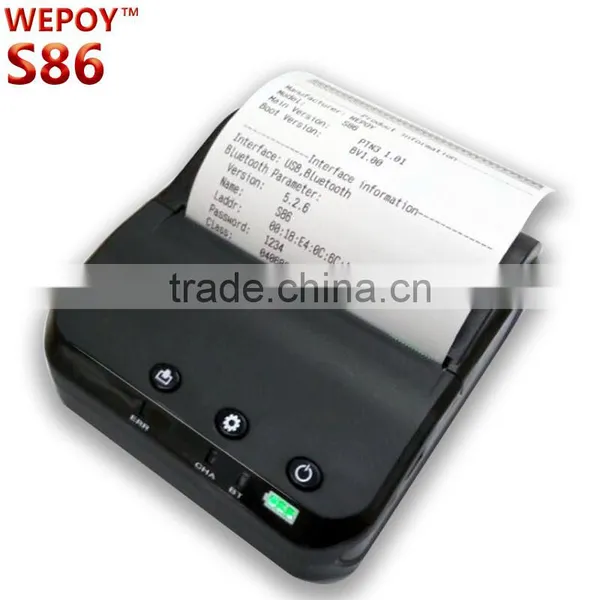

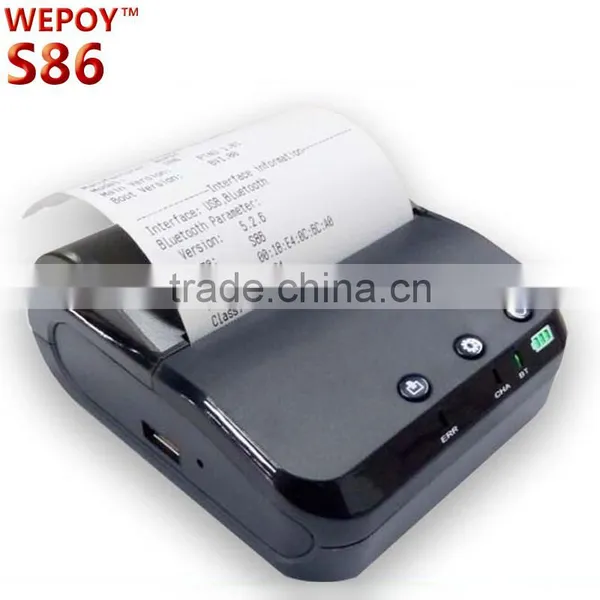

| Bluetooth Printer S86 | |||
| Physical Characteristics |

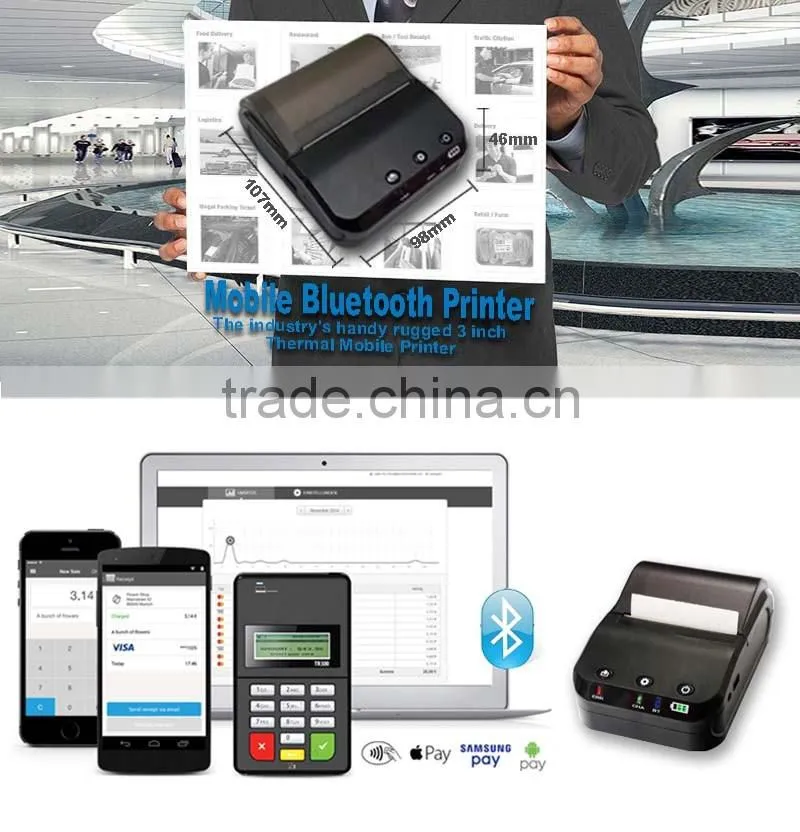

Dimensions (WxLxD) | 4.25''X3.86''X1.83''(108X98X46.6mm) | |
| Weight | Including battery : 250g(0.55lbs) | ||

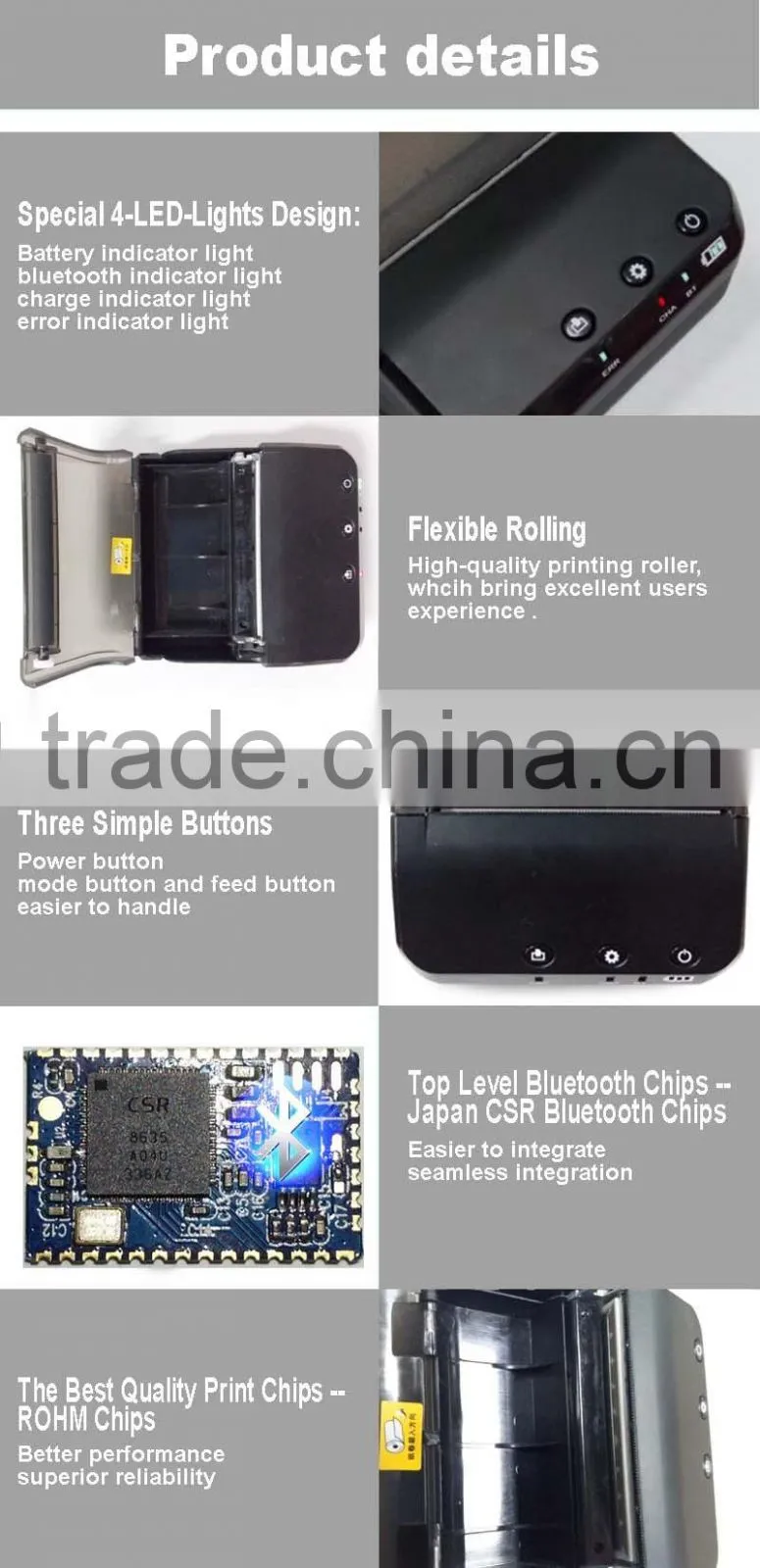

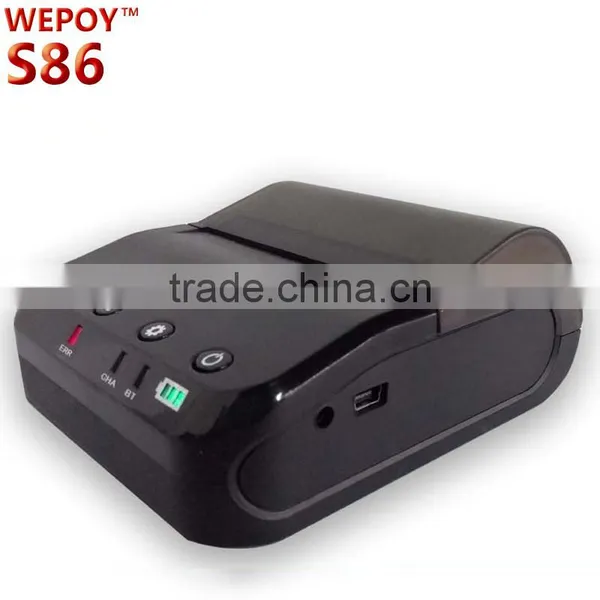

| LED Indicators: |
Battery charge level;power status, error condition; Bluetooth indicator |
||
|
Parameter Details |
Printing Technology | Thermal line printing | |

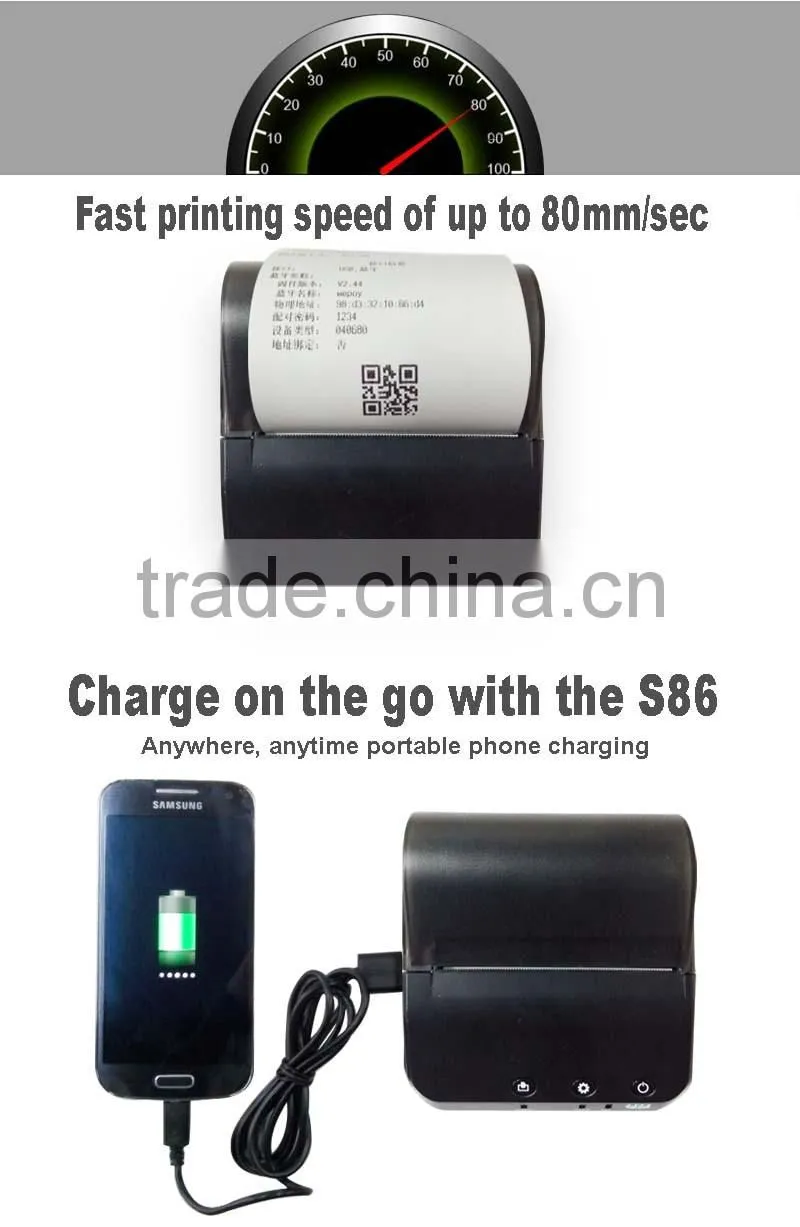

| Print speed | Receipt version 80mm/sec (max.) | ||
| Reliability TPH Life | 50km | ||
| Print Resolution | Dots / inch: 203 dpi | ||
| Dots / line: 576 dots | |||
| Print Width | Up to 72mm | ||
| Paper Width | 80mm | ||
| Roll Diameter | φ≤40mm | ||
| Paper Type | Thermal Paper | ||
| Power |
External Battery Internal Battery (Optinal) |
7.4 V Li-ion, 1,600 mAh, Rechargeable | |
| 1-2 hours charging time | |||
| Continuously working for 100m | |||

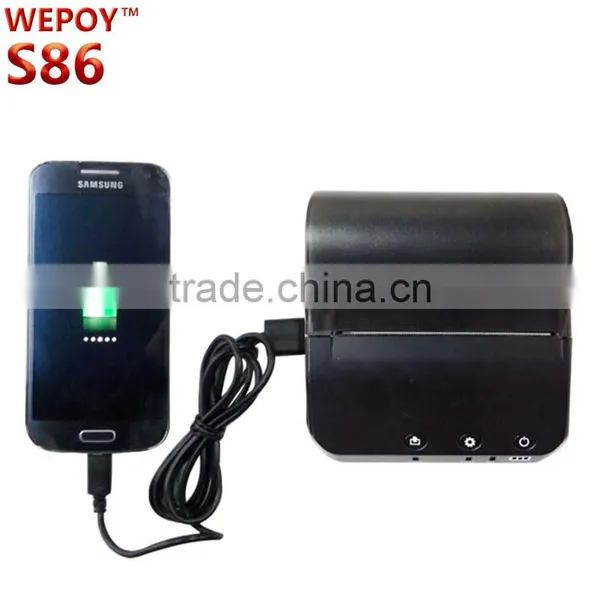

| Remark: Both 1600mAh Version can work as a power bank | |||
| Print Fonts: | Print Fonts |
Chinese: Font A 24X24 , Font B 16X16 ; Font E 9X17 , Font F 8X16 . |
|
| Character size(W X H) | Font A: 3.0 x 3.0mm , Font C: 1.5 x 3.0mm | ||
| Character Per Line | Font A: 24 , Font C: 48 | ||
| Barcode Type | 1D Barcode |
UPCA , UPCE,EAN13,EAN8,CODE39, ITF25, CODEBAR,CODE93,CODE128. |
|
| 2D Barcode | PDF417,QR CODE, DATA Matrix . | ||
| Connectivity: | Print Command | ESC/POS | |
| Interface |
1600mAh version : Mni USB ; Bluetooth 3.0 & BLE4.0 ; WIFI (Optional) |
||
| SDK | IOS SDK, Android SDK ,Windows SDK | ||
|
User Environment |
Working Temperature | -10℃~ 50℃ | |
| Working Humidity | 10~90% | ||
| Storage Temperature | -20℃ ~ 70℃ | ||
| Storage Humidity | 5% ~ 95% | ||
| Driver |
Win 9X /Win 2000 /Win 2003/Win XP Win Vista/Win 7 /Win8/Win10/Linux |
||
| Accessories | Standard Accessories | Battery Pack , Adapter , | |
| Optional Accessories | Battery Pack , Carrying Case , Paper Roll , USB Cable | ||
| Warranty | Main Device | 1 year factory warranty | |
| Accessories | 6 months factory warranty | ||
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or phone technical support service.
4. Consulting Services help clients evaluate hardware, software and integrated services.
5. Onsite technical support service if online and phone services are not accessible.
FAQ:
Q The device won’t turn on.
AFirst please check if battery is installed correctly and battery rear cover is covered.
If there is battery and battery is installed correctly ,The program may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
QThe devicecan’t be charged.
AA Make sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
QHow do I get the repair service?
AYou can send the device via a delivery service to our headquarter after confirmation.
When sending the package, make sure you pay for the shipping
fee in advance.When the repair is finished, headquarter will cover the shipping cost.
QMy battery drains very quickly.
A The battery can be drained quickly when the Wi-Fi or Bluetooth is
turned on.If it drains quickly regardless of using the options above,
please purchase another battery.
QThe device won’t connect GPRS?
AFirst check if SIM card is installed correctly and wireless function is opened.
Then make sure the access point is set correctly and SIM card has enough fee.
If it still doesn’t work , then check SIM card is damaged or not.
Contact us:
Shenzhen Wepoy Technology Co.,Ltd
Tel: +86 755-2363918 Fax: +86 755-2363919
Mob: +86 13682555556 What's App: +86 13682555556
Skype: tinaqyl Website:
