4G touch screen handheld pda barcode scanner
rugged pda, android rugged pda, android pda barcode laser scanner

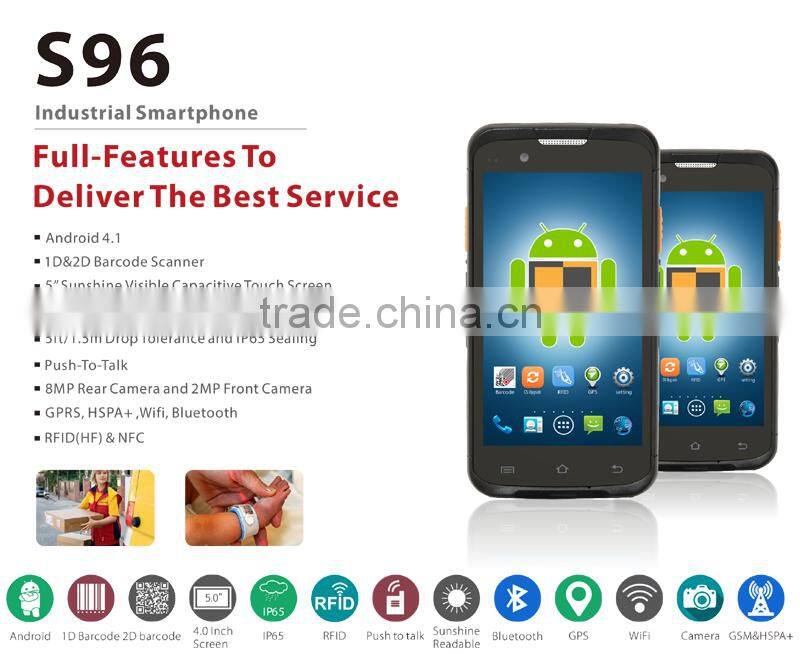

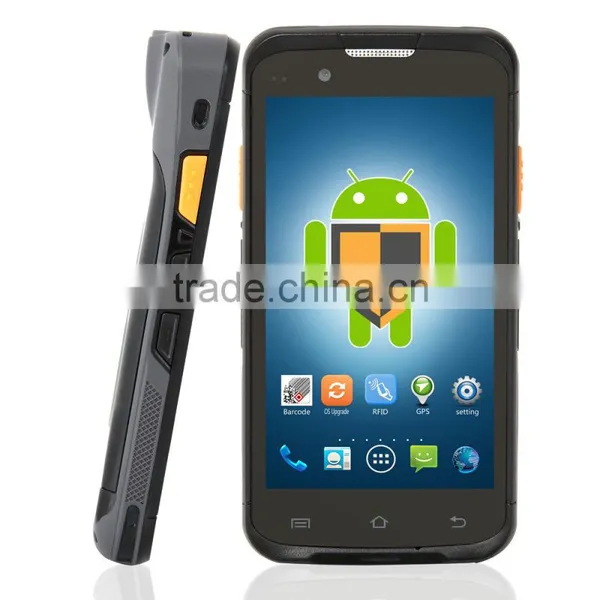

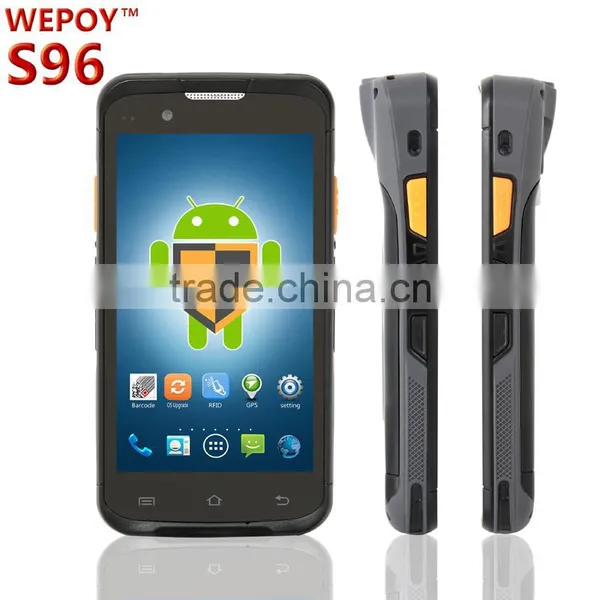

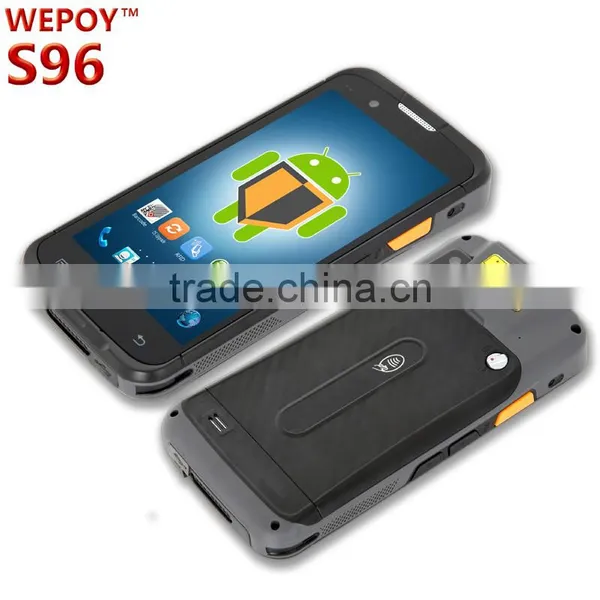

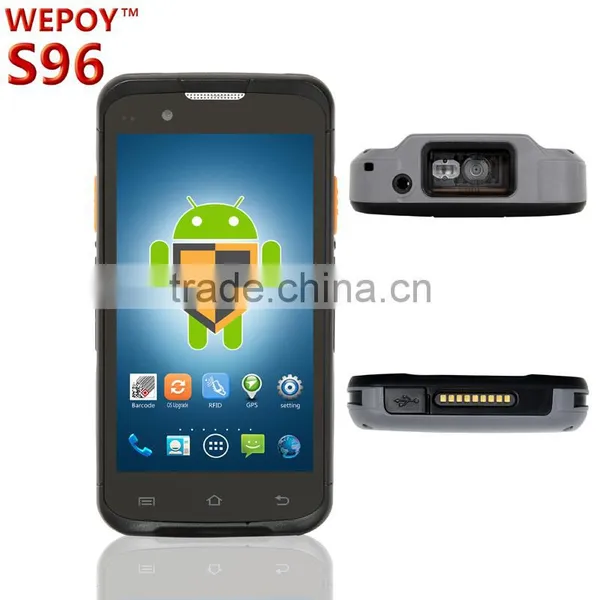

| Industrial Smartphone S96 | |||
|
Performance Characteristics |
Operating System | Android 4.3 supports multi-language | |
| CPU | Quad-Core 1.2GHz | ||
| Display | 5.0 inch TFT-LCD HD (720 x 1280) color screen | ||

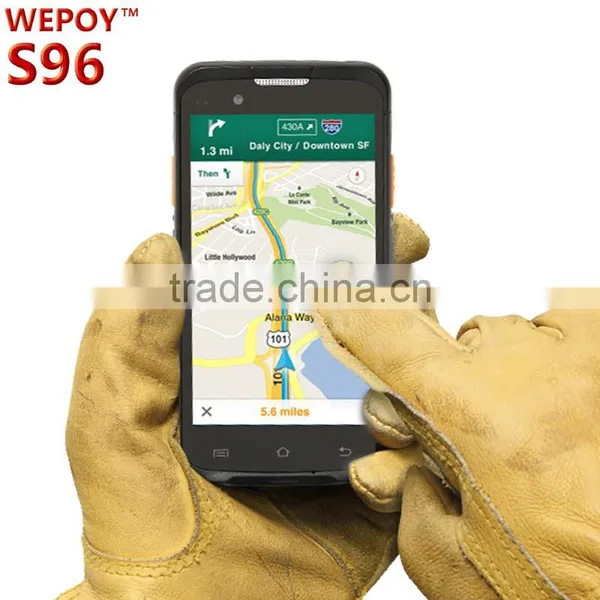

| Panel | Ultra sensitive capacitive touch screen,can work with gloves and wet fingers | ||
| RAM | 1GB | ||
| ROM | 8GB | ||
| Extended Memory | Micro SD slot, up to 32 GB | ||
| Physical Characteristics |
Dimensions (LxWxD) | 152 mm x 78 mm x 15 mm | |
| Weight | 245g | ||

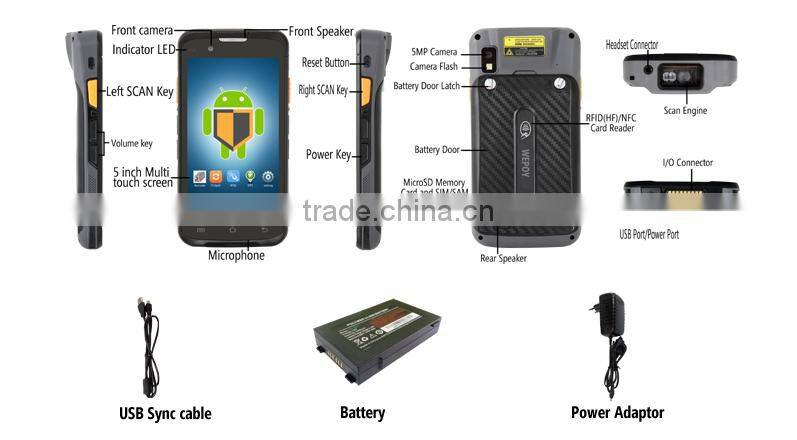

| Keyboard | 1.Side SCAN button x 2 2.User-defined function button 3.The volume switch button 4.ON / OFF button |
||
| Input | Chinese/ English, and supports handwriting and soft keyboard | ||
| Promting Mode | Green, red and blue LED, vibration, speaker | ||
|
Barcode Scanner |
1D CCD |
Code 39; Codabar; Code 128; Discrete 2 of 5; IATA 2 of 5; Interleaved 2 of 5;Code 93; UPC A; UPC E0; EAN 8; EAN 13; MSI; EAN 128; UPC E1; TriopticCode 39; Bookland EAN; Coupon Code; RSS-Limited; RSS-14; RSS-Expanded |
|
| 2D Imager Scanner (Optional) |
1D Symbologies: UPC/EAN, Bookland EAN, UCC Coupon Code, ESSN EAN, CODE 39, CODE 128, GS1128, ISBT 128, Trioptic Code 39, CODABAR, MSI, Interleaved 2/5, Discrete 2/5, Chinese2/5 , Korean3/5, Matrix 2/5, CODE 32, CODE 93, CODE 11, Inverse 1D, GS1 DataBar, Composite Codes MaxiCode, QR Code, Aztec, Aztec InversePostal Codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
||
|
Radio Communication |
WiFi | Wi-Fi 802.11 b/g/n | |
| Bluetooth | Bluetooth 4.0 | ||
| WCDMA | GSM:850/900/1800/1900 MHz UMTS/HSPA+: 850/1900/2100 MHz |
||
| Power | Main Battery |
Rechargeable 3.8 V, 4000 mAh lithium polymer battery pack (Typical Operation time ≥12 hours) |
|
| RTC Battery | Supports to keep clock at real time | ||
| Adapter | 5.5V/ 2.6A | ||
| Options | Camera | 8MP rear camera with LED flash and auto-focus function , 2MP front camera | |
| GPS | GPS,Supports A-GPS,GNSS | ||
| RFID | Supports 13.56Mhz, ISO14443A/B and ISO15693 standard | ||
| Sensor | Supports distance sensor, light sensor and acceleration sensor | ||
| NFC | Supports NFC | ||
| User Environment | Operating Temp | -10℃ ~ 50℃ | |
| Storage Temp | -20℃ ~ 60℃ | ||
| Humidity | 5% ~ 95% (non condensing) | ||

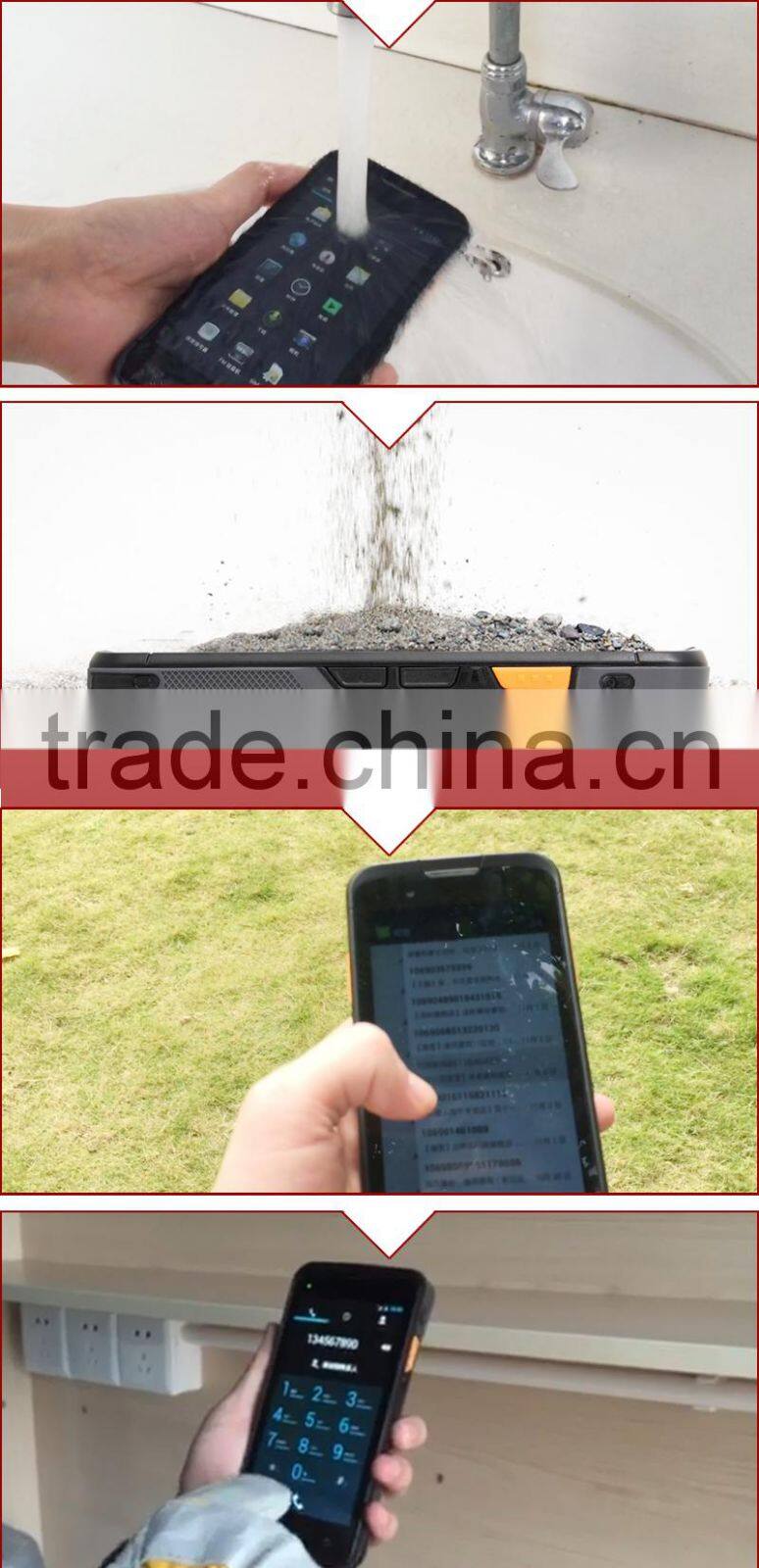

| Sealing | IP65 | ||
| Drop Grade | 5ft/1.5m | ||
| Roller Drop Test | 500 times (1000 hits) | ||
|
Peripherals Accessories |
Expansion | Micro SD/TF x 1(a maximum of 32 GB), Micro SIM x 1, SAM x 1 | |
| Interfaces | Micro USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1 | ||

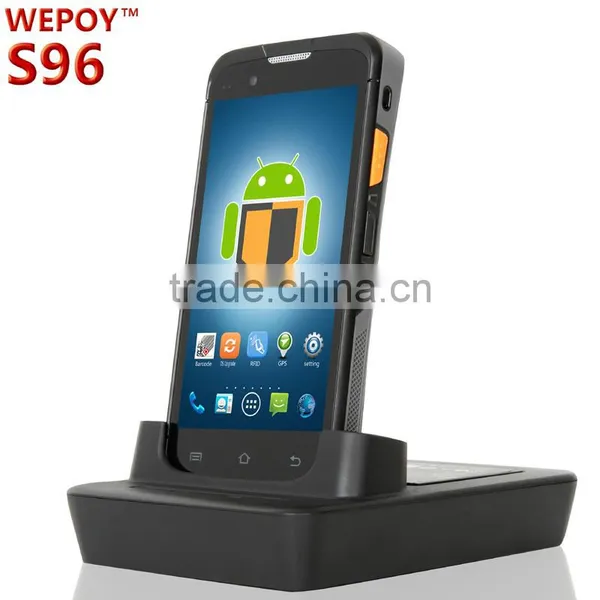

| Cradle(Optional) | Supports to charge one unit of device and one spare battery simultaneously Input:AC 100V~240V,1A Max,50/60Hz Output:DC 5.5V,2.6A Two indicator Led:Power and Status |
||
| Regulatory | Certification | CCC, CE,FCC | |
| Warranty | 1 year factory warranty for main device; 6 months for accessories | ||
Our service:
1. OEM/ODM service.
2. Software customization according to customers’ requirement.
3. One year warranty for main device as well as 7*24 Online or phone technical support service.
4. Consulting Services help clients evaluate hardware, software and integrated services.
5. Onsite technical support service if online and phone services are not accessible.
FAQ:
Q The device won’t turn on.
AFirst please check if battery is installed correctly and battery rear cover is covered.
If there is battery and battery is installed correctly ,The program may be damaged. Please try resetting your device.
If it still doesn’t work, Please contact the service center.
QThe devicecan’t be charged.
AA Make sure the power cable and your device have been properly
connected.
Try to clean the charging terminals. If they still do not work,
your battery life might be finished or it may be a broken battery.
(The battery warranty lasts for 6 months)
QHow do I get the repair service?
AYou can send the device via a delivery service to our headquarter after confirmation.
When sending the package, make sure you pay for the shipping
fee in advance.When the repair is finished, headquarter will cover the shipping cost.
QMy battery drains very quickly.
A The battery can be drained quickly when the Wi-Fi or Bluetooth is
turned on.If it drains quickly regardless of using the options above,
please purchase another battery.
QThe device won’t connect GPRS?
AFirst check if SIM card is installed correctly and wireless function is opened.
Then make sure the access point is set correctly and SIM card has enough fee.
If it still doesn’t work , then check SIM card is damaged or not.
...
