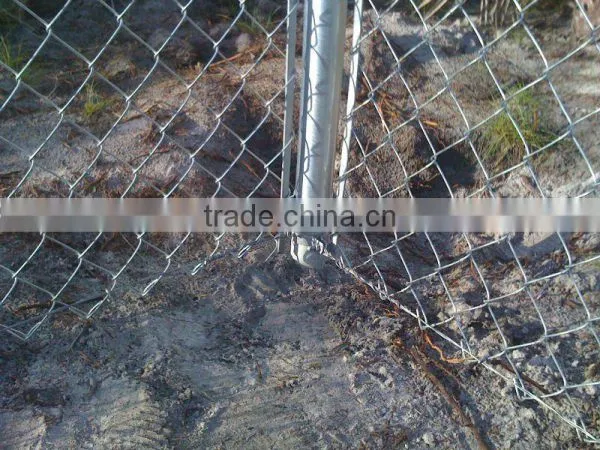

Chain Link Fence Fabric

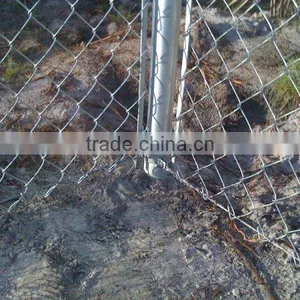

Chain Link Fence Fabric thumbnail-1
Chain Link Fence Fabric photo-1
US$ 0.1 - 5 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Yulong
Model Number:
70009
Contact Supplier Request Quote Chat Now
Anping Red Star Wire Mesh Manufacturer Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Yulong
Model Number 70009
Frame Material Metal
Metal Type Iron
Frame Finishing Powder Coated
Feature Easily Assembled

Specifications

chain link fence fabric
wire dia.: Gague 6, 9 11 and so on
mesh: 3/8'', 1/2'', 3/4'', 1'', 1-3/4'', 2''
height: 3'-12'

chain link fence fabric



VINYL FUSED - BONDED  (Strong & Tough)

Fused Bonded Fabric shall have a PVC coating of 7 to 12 Mils (0.07 to 0.012) as per ASTM-F668 Class 2B. Use this Fabric when durability and Security is necessary.

Thermo Bond permanently fused wire conforms to Federal specification RR-F-191/1C. Thermo bond is not an Extruded Vinyl coating. It is a powered Vinyl coating Thermally bonded and fused to the galvanized steel wire core thus becoming integrally a part of the wire.





GAUGE

WIRE CORE

DIAMETER

ZINC COATING



MILS

BREAKING

STRENGTH

FINISH SIZE

6

0.192

0.4 OZ/FT

7 Mils

2.175 LBS

5 Gauge

9

0.148

0.3 OZ/FT

7 Mils

1.290 LBS

8 Gauge

11

0.120

0.3 OZ/FT

7 Mils

0.850 LBS

10 Gauge



POLYESTER VINYL COATED FABRIC (25% Stronger then Fused Bonded)

25% Stronger than fused bonded. Core wire shall be galvanized or Aluminized with 5' to 7 Mils (0.005 to 0.007) of Polyester coating

GAUGE

WIRE CORE

DIAMETER

COATING

OZ/FT

MILS

BREAKING

STRENGTH

FINISH SIZE

6

0.192

1.2 GALV or .40 ALZ

5 TO 7

2.718 LBS

5 Gauge

9

0.148

1.2 GALV or .40 ALZ

5 TO 7

1.612 LBS

8 Gauge

11

0.120

1.2 GALV or .40 ALZ

5 TO 7

1.062 LBS

10 Gauge



BOUND 2 VINYL FABRIC

Bound 2 bonded fabric shall have a PVC coating of 22 to 27 Mils (.22 to .27)

as per ASTM-F668. Class 2A.

SIZE

CORE

CODE#

6 Gauge X 2 Mesh

.148

PV62

9 Gauge X 1 Mesh

.120

PV91

9 Gauge X 2 Mesh

.120

PV92

11 Gauge X 1 Mesh

.120

PV111

6 Gauge X 1 3/4  Mesh

.148

BV657

6 Gauge X 2 Mesh

.148

BV62

9 Gauge X 1 Mesh

.120

BV91

9 Gauge X 1 3/4 Mesh

.120

BV975



GALVANIZED  CHAIN LINK FABRIC

1.20 oz Galvanized chain link meets federal specifications RR-F-191/1B, Type 1, Class 1 and ASTM A392, Class 1

9 GAUGE X 2 MESH  -   50' PER ROLL

CODE#

HEIGHT



GAL93

3'



GAL935

3 1/2'



GAL94

4'



GAL95

5'



GAL96

6'



GAL97

7'



GAL98

8'



25' PER ROLL



GAL910

10'



GAL912

12'






11 1/2 GAUGE X 2 1/4 MESH  50' PER ROLL

CODE#

HEIGHT

GAL114

4'

GAL115

5'

GAL116

6'

GAL117

7'

GAL118

8'



GALVANIZED

6 GAUGE X 2 MESH    25' PER ROLL

CODE#

HEIGHT

GAL64

4'

GAL65

5'

GAL66

6'

GAL67

7'

GAL68

8'

GAL610

10'

GAL612

12'
