Alibaba Twist Hot Dipped Electro /Pvc Coated /Galvanized Hexagonal Wire Mesh for chicken fence/highway fence
Hexagonal wire netting is used for feeding chicken, ducks, gooses, rabbits and the fence of zoo,etc.
Wire netting with hexagonal opening offers good ventilation and fencing uses.
Processing:Hexagonal wire netting is made of twisting carbon steel wire, electro or hot dipped galvanized, then plastic coated, or plain.
Application:It can be fabricated into gabions boxes – one of the most popular wire products for flood control.
Then stones are put into it. Laying of gabions make a wall or bank against water and flood.
Hexagonal wire netting is also welded into poultry netting for breeding of chicken and other poultry.
Popularly used as fences after green coated, and costs can be reduced. In the past years, the hexagonal wire netting made of galvanized iron wire has been used in fences, breeding and construction reinforcement.
Materials: Low carbon steel wire, stainless steel wire or brass wire.
Weaving type avaliable include: Straight twist, reverse twist, double-direction twist.

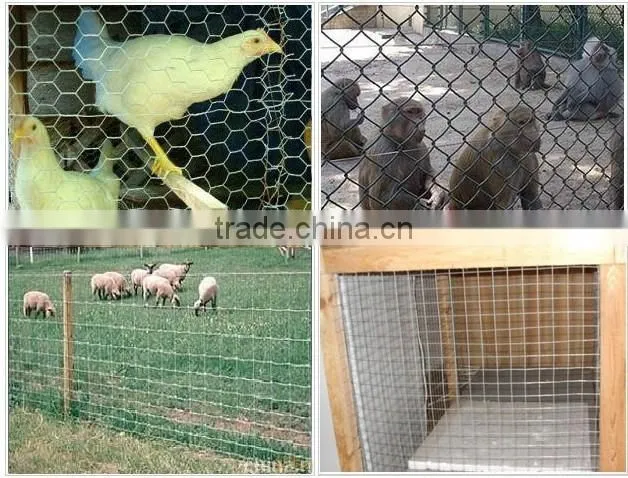

feeding fences:
Gabion boxes:
Gardon fence:
| Galvanized hex. wire netting in normal twist (In 30M roll,width of 0.5M---2.0M) | ||
| Mesh | Wire Gauge (BWG) | |
| Inch | mm | |
| 3/8" | 10mm | 27,26,25,24,23,22,21 |
| 1/2" | 13mm | 25,24,23,22,21,20 |
| 5/8" | 16mm | 27,26,25,24,23,22 |
| 3/4" | 20mm | 25,24,23,22,21,20,19 |
| 1" | 25mm | 25,24,23,22,21,20,19,18 |
| 1-1/4" | 32mm | 22,21,20,19,18 |
| 1-1/2" | 40mm | 22,21,20,19,18,17 |
| 2" | 50mm | 22,21,20,19,18,17,16,15,14 |
| 3" | 75mm | 21,20,19,18,17,16,15,14 |
| 4" | 100mm | 17,16,15,14 |
| Galvanized hex. wire netting in reverse twist (In 30M roll,width of 0.5M---2.0M) | ||||
| Mesh | Wire Gauge | Reinforcement | ||
| Inch | mm | BWG | Widths (ft) | Strand |
| 1" | 25mm | 22,21,20,18 | 2' | 1 |
| 1-1/4" | 32mm | 22,21,20,18 | 3' | 2 |
| 1-1/2" | 40mm | 20,19,18 | 4' | 3 |
| 2" | 50mm | 20,19,18 | 5' | 4 |
| 3" | 75mm | 20,19,18 | 6' | 5 |
| Hex. wire netting in pvc-coated (In 25M roll, width of 0.5M---1.0M) | ||
| Mesh | Wire Gauge | |
| Inch | mm | |
| 1/2" | 13mm | 0.9mm,1.0mm |
| 1" | 25mm | 1.0mm,1.2mm,1.4mm |
| 1-1/2" | 40mm | 1.0mm,1.2mm,1.4mm,1.6mm |
| 2" | 50mm | 1.0mm,1.2mm,1.4mm,1.6mm |

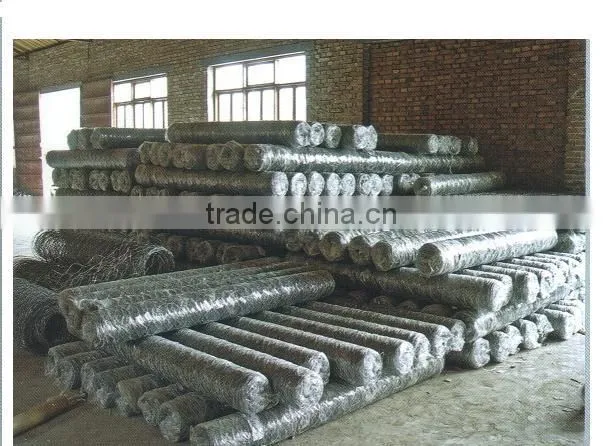

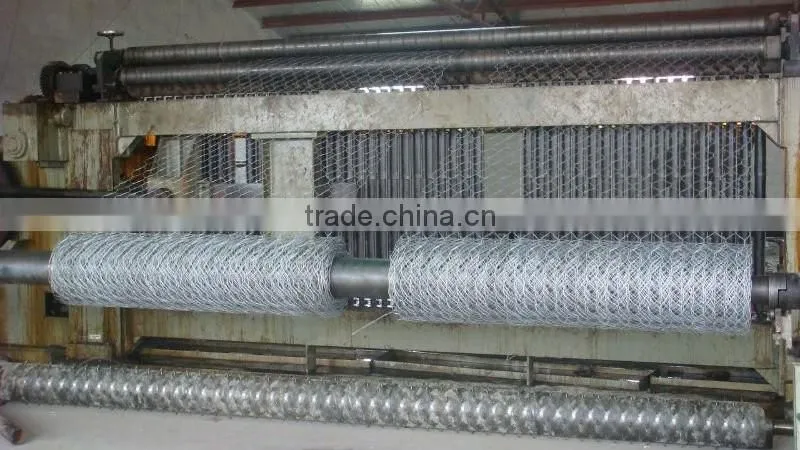

progress of production:
