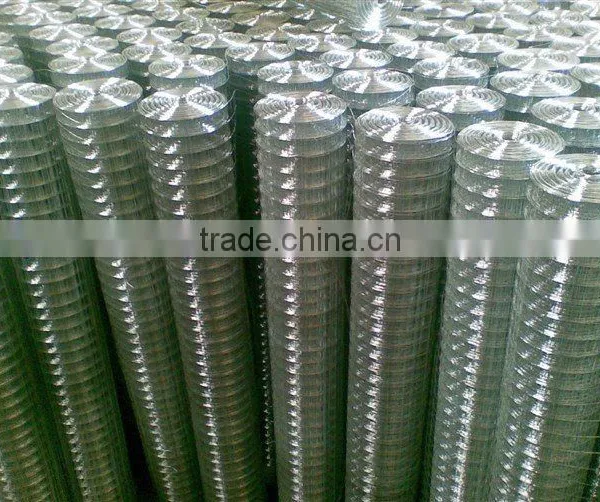

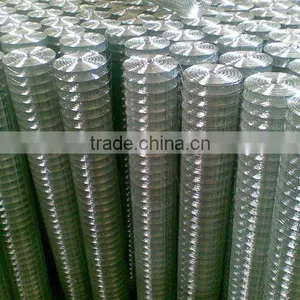

Help CenterGalvanized Welded Wire Mesh
Related Products
Specifications
ISO standardwire dia:bwg12--bwg24
opening: 1/4"--2"
width:0.5m--1.8m
special sizes available at request
WELDED WRIE MESH
Use: used in the industry, agriculture, construction, transport and mining. Such as machine protection cover, ranch fender, garden fender, window protection fender, passage fender, fowl cage, egg basket and food stuffs basket.
Surface treated: Galvanized and PVC coated, stainless steel wire.
Welded wire mesh PVC coated is make of high quality low carbon steel wire, welded wire mesh divides into hot-dip galvanized and electro galvanized. The adoption plates the zinc craft after welding, it is made from high-quality iron wire by automatic equipment. The products have smooth mesh surface, well proportioned meshes, strong welded points and bright luster. The mesh does not come loose even if cut in parts or being exerted force on parts. Compared with general iron wire, the products are better in respects of anti-corrosive and anti rust.
Weaving and characteristics:
1. Hot dipped galvanizing after weaving
Weaving with hot dipped galvanized iron wire
2. Electric galvanizing after weaving
Weaving with electric galvanized iron wire
3. PVC coated welded wire mesh
Specification List of Welded Wire Mesh | ||
opening |
Wire diameter(bwg) |
|
In inch |
In metric unit(mm) |
|
1/4”x1/4” |
6.4mmx6.4mm |
22,23,24 |
3/8”x3/8” |
10.6mmx10.6mm |
19,20,21,22 |
1/2”x1/2” |
12.7mmx12.7mm |
16,17,18, 19,20,21,22,23 |
5/8”x5/8” |
16mmx16mm |
18, 19,20,21 |
3/4”x3/4” |
19.1mmx19.1mm |
16,17,18, 19,20,21 |
1”x1/2” |
25.4mmx12.7mm |
16,17,18, 19,20,21 |
1-1/2”x1-1/2” |
38mmx38mm |
14,15, 1617,18, 19 |
1”x2” |
25.4mmx50.8mm |
14,15, 16 |
2”x2” |
50.8mmx50.8mm |
12,13, 14,15, 16 |
Technical Note:
1. Standard roll length:30m width:0.5m to 1.8m
2. Special sizes available at request
3. Packing: in waterproof paper in rolls. Custom packing available at request
Specification List of Welded Wire Mesh | ||
opening |
Wire diameter(mm) |
|
In inch |
In metric unit(mm) |
|
2”x3” |
50mmx75mm |
2.0mm,2.5mm,1.65mm |
3”x3” |
75mmx75mm |
2.67 mm,2.41mm,2.11mm,1.83mm,1.65mm |
2”x4” |
50mmx100mm |
16,17,18, 19,20,21,22,23 |
4”x4” |
100mmx100mm |
18, 19,20,21 |
Technical Note:
1. Standard roll length:30m width:0.5m to 1.8m
2. Special sizes available at request
3. Packing: in waterproof paper in rolls. Custom packing available at request
Galvanized Fencing Mesh | ||
opening |
Wire diameter(BWG) |
|
In inch |
In metric unit(mm) |
|
1/2”x1/2” |
12.7mmx12.7mm |
16,17,18, 19,20,21 |
3/4”x3/4” |
19mmx19mm |
16,17,18, 19,20,21 |
1”x1” |
25.4mmx25.4mm |
15,16,17,18, 19,20, |
Technical Note:
1. Standard roll length:30m width:0.5m to 1.8m
2. Special sizes available at request
3. Packing: in waterproof paper in rolls. Custom packing available at request
OTHER SPECIFICATION AR AVAILABLE.
SAMPLE: SAMPLE IS FREE FOR YOU.
MOB: +86-13784360490
