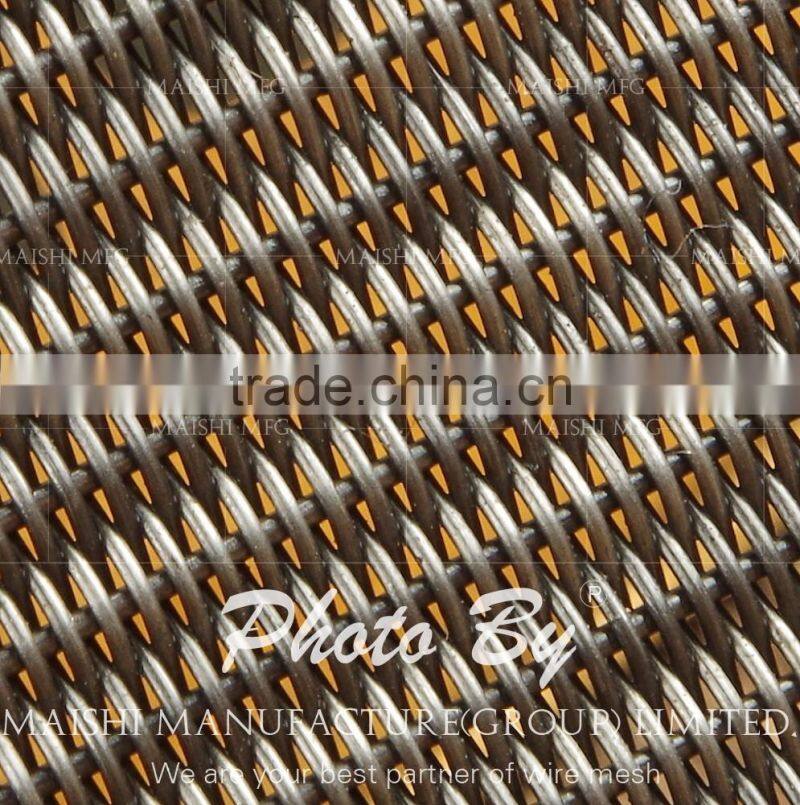

Stainless steel dutch mesh
Plain Dutch Mesh
Plain dutch weave pattern is the same as plain weave, but the weft wires are of smaller diameter than the warp wires. The wires are woven tightly together resulting in a small triangular opening. This weave produces a strong cloth with a small open area and greater strength with a good flow rate to make it suitable for high pressure filtration.
The shapes and position of the openings aid particle retention and increase filter cake formation. Plain dutch weave mesh is most frequently used for high pressure filtration processer to separate from other medium in industry of spaceflight, petroleum, hemical, etc.
Twill Dutch Mesh
Twill Dutch Weave is similar to plain dutch weave but it uses a double layer of weft wires woven as a twill pattern. Dutch weave is very strong to support greater loads and finer openings than the plain dutch weave mesh with a controlled flow rate and is suitable where high pressure filtration is required.
Twill dutch weave mesh is most frequently used in applications where the filtering of heavy material necessary. Such as aerospace industry, petroleum and chemical industry, beer, machines, etc.
Twilled Reversible Dutch Wire Mesh
This filter screen is woven from high-tensile strength stainless steel wire, in reverse dutch twill pattern and finished in ribbon/belt form with a standard roll length of 10 meters. So it is called with belt filter screen or screen filter belt for screen changer or auto screen belts.
The yield of such a roll is equivalent to several hundred ‘screen packs’ in a conventional screen changer and lasts many months in non-stop operation.
Stainless steel dutch mesh
Material: SS304, SS316, SS316L.
Weave: Plain Weave, twill weave, dutch weave.
Features:
1.High precision filtration, Good solvent resistance
2.Corrosion resistance, Chemical resistance, Good heat-melting resistance
3.No fluctuation of material flow, no product deformation, excellent quality stability
4.No waste product or waste material, and little material consumption occur
when the screen changer works.
Stainless steel dutch mesh types:
1. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
2. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
3. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.
Stainless steel wire mesh specifications:
Please kindly check the normal specifications of the stainless steel screen mesh as below:
Mesh test:
1.Mesh count inspect
2.Thickness inspect
3.Thread dia & hole inspect
4.Tensile strengh test
5.Surface tension test
Quality control:
1.Raw material check
2.Material preparation
3.Finish dia.warping beam
4.Mesh wearing
5.surface check
Stainless steel dutch mesh application:
screen changers used for polymer melt filtration in every segment of plastics
processing including: blown film, blow molding,
sheet and film extrusion, filaments & fibers, pipe and profile, pelletizing,
BIAX (BOPP and BOPS).
Factory Show:
Hebei Maishi Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of screen mesh.Our company was connected with production of metal wire mesh since 1986 in China. The machinery and apparatus used in production process fully based on the high computer technology, gaining TSE (Chinese Standard institution) certificate and ISO9001:2000.
All of our wire mesh have been exported to Europe, U.S.A, Australia, Middle East, Southeast Asia, Africa, South America and other parts or the world with the following advantages:
26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
Dedicated and experienced weavers.
Consistent strictly quality control of products.
On-time delivery.
We have 15 R&D technical staffs,with more than 10 years experience.
80% repeat customers.
Reasonable claim refund system.
Package:
Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" aswell as the "woven bag" on the finished roll, Final loaded in the strong wooden case.
Your package request is available.
Contact Us:
Any questions, please do not hesitate to contact us.
