Stainless Steel Fine Mesh Wire

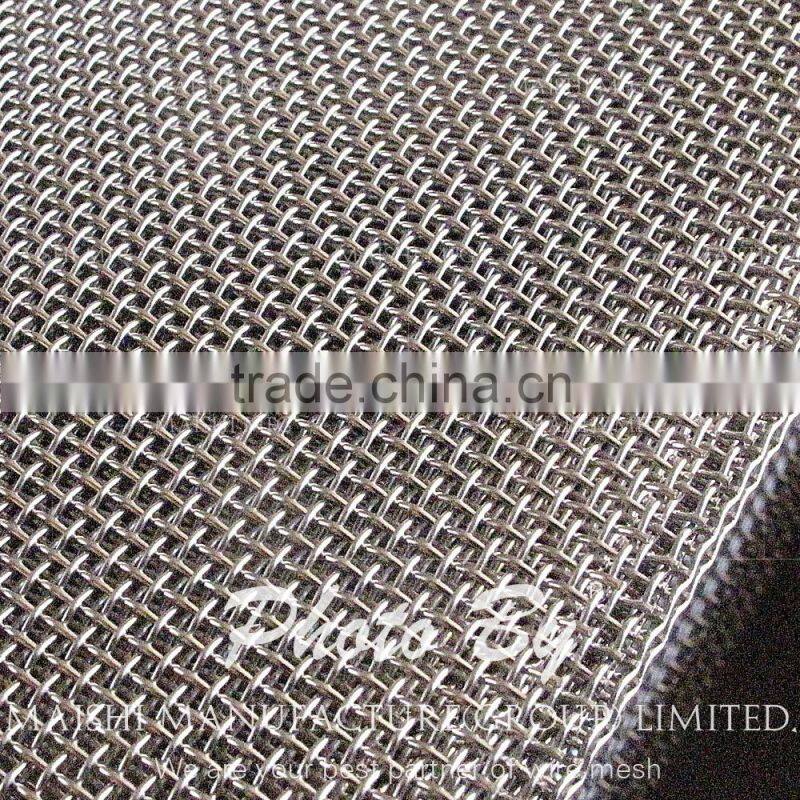

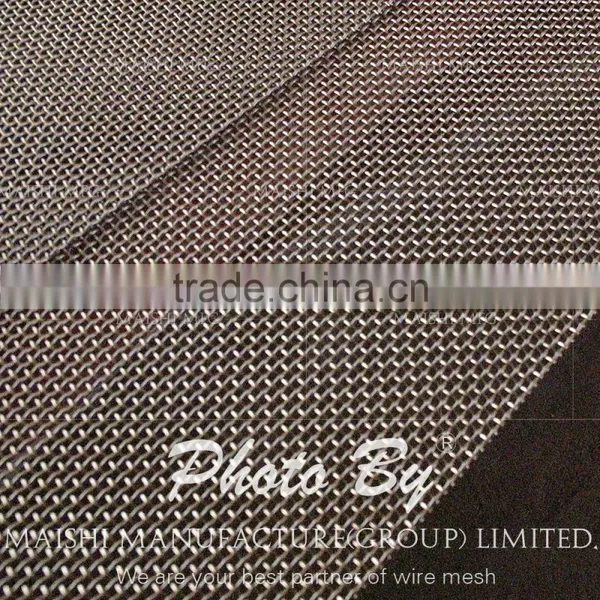

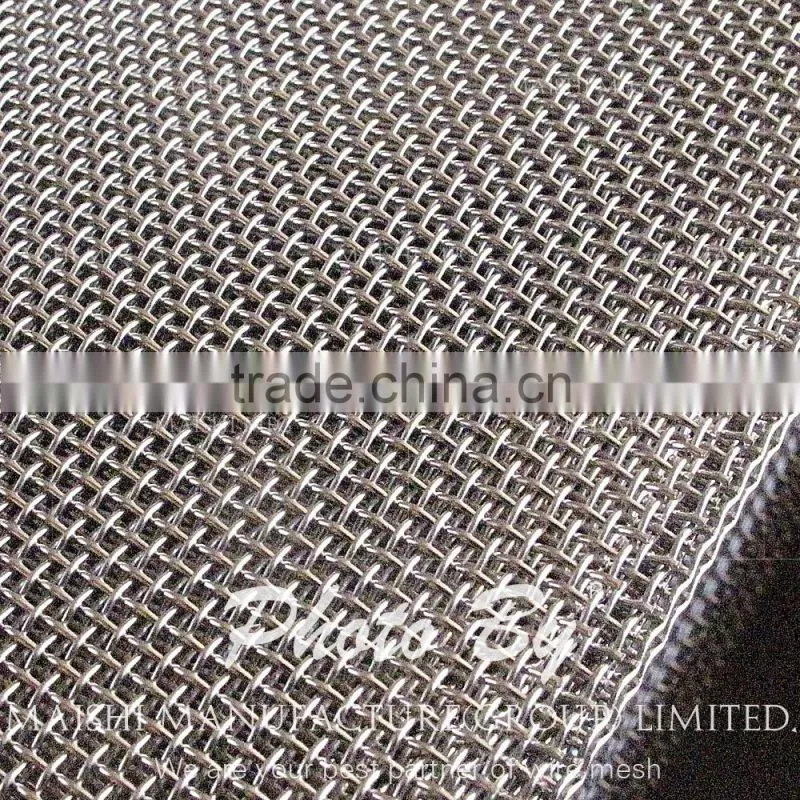

Stainless steel fine mesh wire

Material: AISI304 AISI304L AISI316 AISI316L
Weave type: Plain weave, Twilled weave, Dutch weave
Features: Heat resisting,Corrosion resisting, Acid resisting
Uses:Mainly used for filtering and sieving, extensively used in petroleum, chemical industry, enviroment protection, mine, airspace, paper-making, electronic, metallurgy etc.
Weave type explanation

Stainless steel fine mesh wire woven types:

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

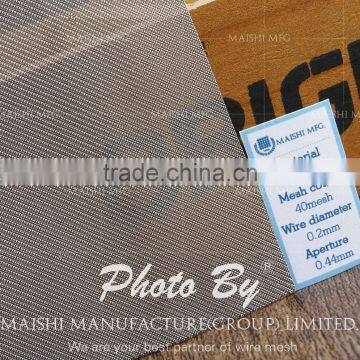

Mesh count view:

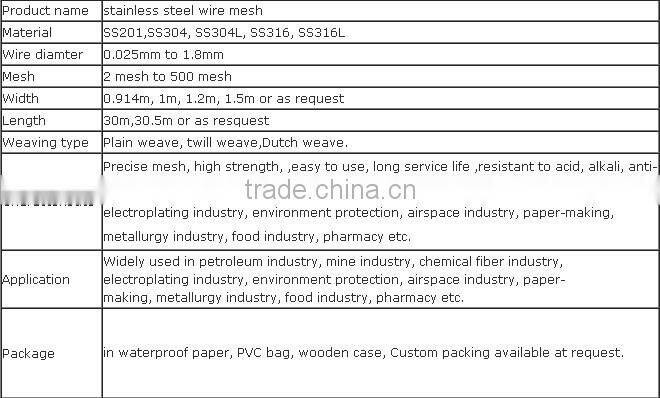

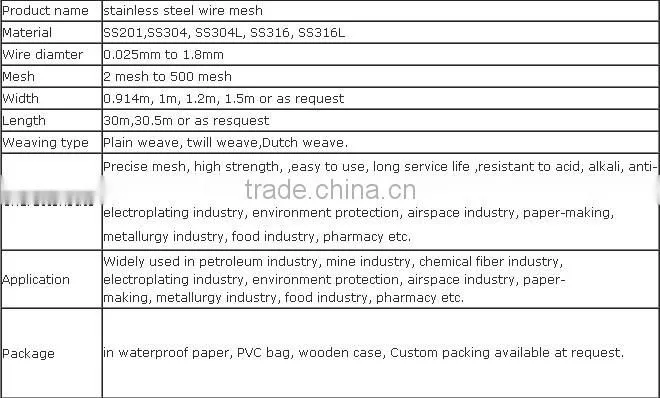

Specifications:

Please kindly check the normal specifications of the stainless steel wire mesh as below:

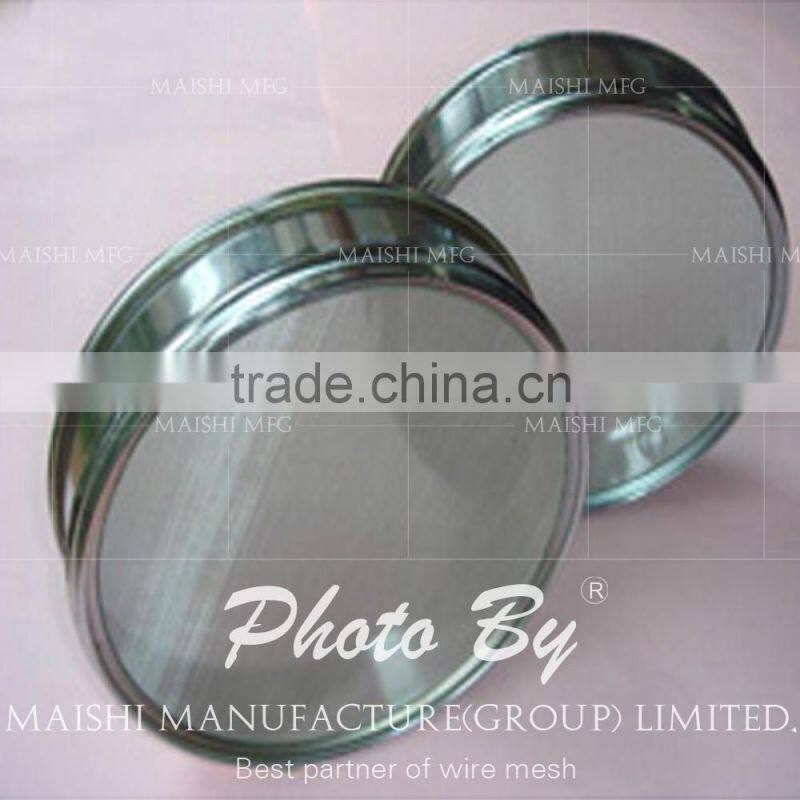

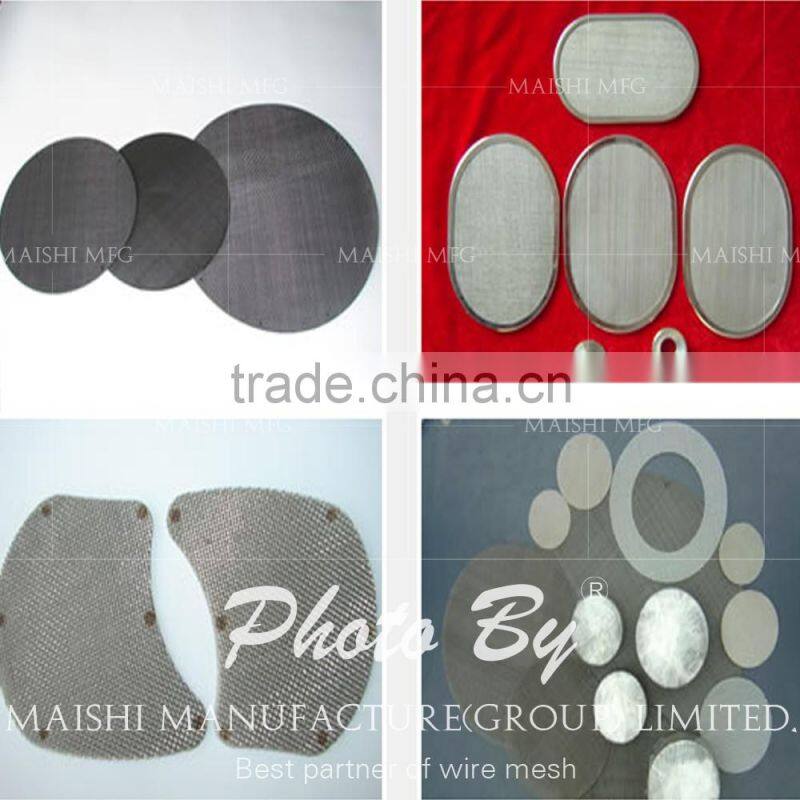

Stainless steel fine mesh wire application:

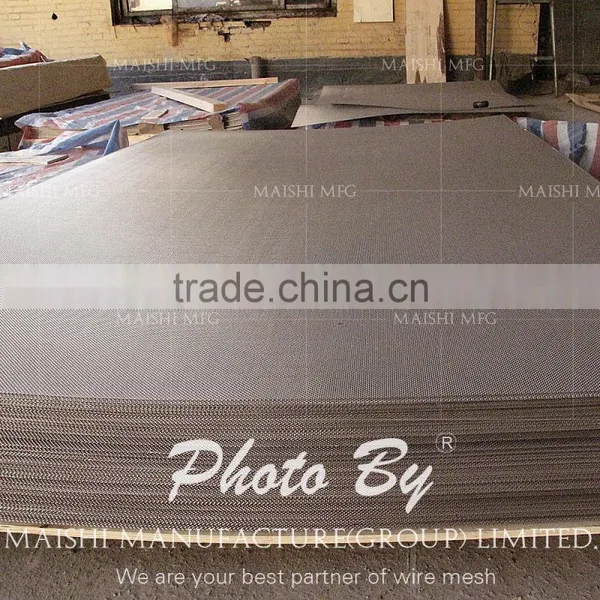

Factory Show:

Hebei Maishi Wire Mesh Manufacture Factory is one of the top manufacturers and exporters of stainless steel wire mesh.Our company was connected with production of metal wire mesh since 1986 in China. The machinery and apparatus used in production process fully based on the high computer technology, gaining TSE (Chinese Standard institution) certificate and ISO9001:2000.

All of our wire mesh have been exported to Europe, U.S.A, Australia, Middle East, Southeast Asia, Africa, South America and other parts or the world with the following advantages:
26 sets stainless steel high mesh count looms and 50 sets P7150 Sulzer looms.
Dedicated and experienced weavers.
Consistent strictly quality control of products.
On-time delivery.
We have 15 R&D technical staffs,with more than 10 years experience.
80% repeat customers.
Reasonable claim refund system.

Package:

Inside the roll with "paper tube" to reduce the pressure while loading; Then wrapped with "plastic film" aswell as the "woven bag" on the finished roll, Final loaded in the strong wooden case.
Your package request is available.

Contact us:

Any questions, please do not hesitate to contact us.
