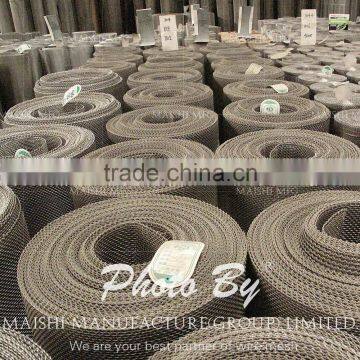

304/316/430 woven wire mesh stainless steel

304/316/430 woven wire mesh stainless steel

SS Wire Netting

SS Wire Cloth
Material:302,304,304L,316,316L,321
Packaging:moist proof

Material: 302,304,304L,316,316L,321 and 430 etc
Wire diameter:0.03mm-1.800mm
Weaving method: plain weave, plain dutch weave, twill weave, dutch twilled weave

1. Plain Weave: also called tabby weave, linen weav or taffeta weave, is the most basic type of weaves. In plain weave, the warp and weft are aligned so they form a simple criss-cross pattern. Each weft thread crosses the warp threads by going over one, then under the next, and so on. The next weft thread goes under the warp threads that its neighbor went over, and vice versa.
2. Twill Weave: In a twill weave, each weft or filling yarn floats across the warp yarns in a progression of interlaces to the right or left, forming a distinct diagonal line. This diagonal line is also known as a wale. A float is the portion of a yarn that crosses over two or more yarns from the opposite direction.
3. Plain Dutch Weave: similar with plain weave, just the weft and warp wire have different wire diameter and different mesh size.
4. Twill Dutch Weave: similar with twill weave, just the weft and warp wire have different wire diameter and different mesh size.
5. Reversed Dutch Weave: difference from standard Dutch weave lies in the thicker warp wires and less weft wires.

Mesh count view

Characteristics:wear-resisting, heat-resisting,acid-resisting,corrosion resisting

304 Stainless Steel Wire Cloth is the most common stainless alloy used in wire weaving. Excellent corrosion properties and can withstand temperatures of 1100 Degrees F.

304L Stainless Steel Wire Cloth has similar properties as 304ss but lower carbon content to permit better welding.

316 Stainless Steel Wire Cloth has similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion.

316L Stainless Steel Wire Cloth has similar properties as 316ss but lower carbon content to permit better welding.

Usage: extensively used in mining, chemical industry, food industry and pharmaceutical industry

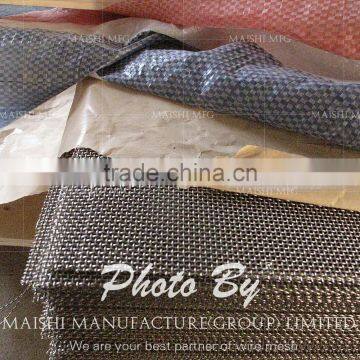

Packaging:in waterproof paper, pvc bag, moist proof paper,wooden case,pallet.
