chicken mesh galvanized hexagonal wire netting
Chicken wire mesh fence
Hexagonal wire netting
Poultry mesh
Hexagonal wire mesh for poultry
Hebei Maishi Wire Mesh Group supply super quality chicken mesh galvanized hexagonal wire netting with favorable price.
Material: Galvanzied wire, stainless steel wire, Galvanzied+PVC coated wire, Low carbon steel wire
Galvanzied Wire:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Stainless steel wire:Stainless steel 304,316 etc.
Specification:
Diameter:BWG16 to BWG27
Opening:3/8'' to 4''
Width"0.5m-2.0m
Roll length:15m,25m,30m,50m etc,as customers' requirement.
Weaving: normal twist, reverse twist,normal and reverse twist
chicken mesh galvanized hexagonal wire netting
Weaving type:
Electro Galvanzied before weaving Hexagonal Wire Netting
Electro Galvanzied after weaving Hexagonal Wire Netting
Hot dipped Galvanzied before weaving Hexagonal Wire Netting
Hot dipped Galvanzied after weaving Hexagonal Wire Netting
PVC coated before or after weaving Hexagonal Wire Netting
chicken mesh galvanized hexagonal wire netting
Usage:
1. Industrial ,argicultrual constructions
2. Fence for animals cage
3. Fishing,garden,playground
Payment:T/T(30%T/T paid in advance and 70% pad against of BL copy within 5days)
Other payment term could be negotiatory.
Production time:20days for FCL container after receipted of advance payment.
Certifates:
Passed ISO9001:2000 certificate, China notional test, Faith Enterprises of government.

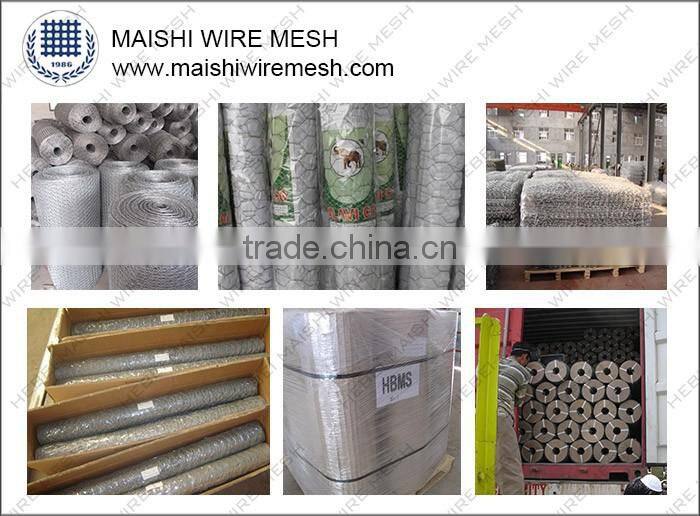

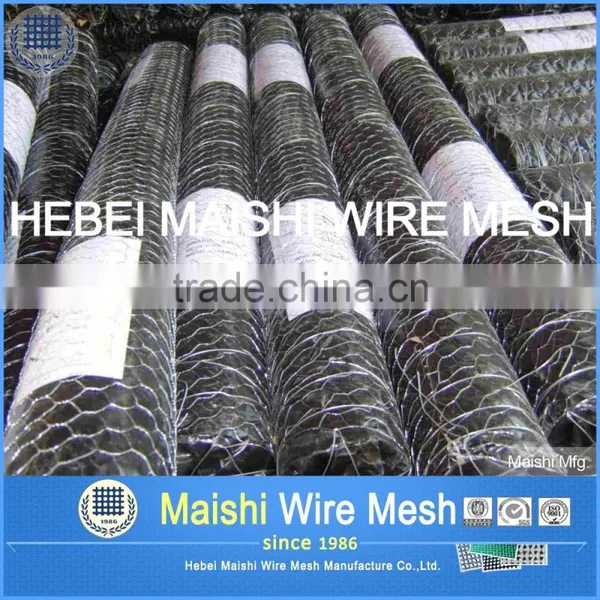

Package:
Maishi Standard chicken mesh galvanized hexagonal wire netting Specification:
Maishi Galvanized Hexagonal wire netting | |||||
mesh |
Min. Gal.v. G/SQ.M |
Width |
Wire Gauge (Diameter) BWG |
||
Inch |
mm |
Tolerance(mm) |
|||
3/8" |
10mm |
±1.0 |
0.7mm - 145 |
2' - 1M |
27, 26, 25, 24, 23 |
1/2" |
13mm |
±1.5 |
0.7mm - 95 |
2' - 2M |
25, 24, 23, 22, 21 |
5/8" |
16mm |
±2.0 |
0.7mm - 70 |
2' - 2M |
27, 26, 25, 24, 23, 22 |
3/4" |
20mm |
±3.0 |
0.7mm - 55 |
2' - 2M |
25, 24, 23, 22, 21, 20, 19 |
1" |
25mm |
±3.0 |
0.9mm - 55 |
1' - 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4" |
31mm |
±4.0 |
0.9mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
1-1/2" |
40mm |
±5.0 |
1.0mm - 45 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
2" |
50mm |
±6.0 |
1.2mm - 40 |
1' - 2M |
23, 22, 21, 20, 19, 18 |
2-1/2" |
65mm |
±7.0 |
1.0mm - 30 |
1' - 2M |
21, 20, 19, 18 |
3" |
75mm |
±8.0 |
1.4mm - 30 |
2' - 2M |
20, 19, 18, 17 |
4" |
100mm |
±8.0 |
1.6mm - 30 |
2' - 2M |
19, 18, 17, 16 |
Technical Note: | |||||
We warmly welcome all friend from all over the world to be our business partners on the basis of equality and mutual benefit and to create a good future.
