wholesale chain link fence with high quality
1) Clearly Target
Please advise me the specification, I will offer factory price!
2)Unclearly Target
Please advise me your application, I can offer you some advise with my speciality!
Detailed Description of chain link fence
1. Brief introduction :
Hebei Maishi Wire Mesh Group supply super quality chicken mesh galvanized hexagonal wire netting with favorable price.
Material: Galvanzied wire, stainless steel wire, Galvanzied+PVC coated wire, Low carbon steel wire
Galvanzied Wire:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Stainless steel wire:Stainless steel 304,316 etc.
Hot dipped galvanized chain link fence
Mesh:1"(25mm) - 3"(76mm)
Wire Dia: 1.6-4.2mm
Width: 1.5m, 1.8m, 2.14m etc
Galvanized chain link fence and PVC coated chain link fence
Mesh:1"(25mm) - 3"(76mm)
Wire Dia: 1.6-4.2mm
Width: 1.5m, 1.8m, 2.14m etc
[ Inner Wire Material ]
1. Black wire: just black wire, without any surface finish.
2. Electro galvanzied, hot-dipped galvanzied
Two standard zinc coating for hot-dipped galvanzied:
1) normal zinc coating(50-60g/m2)
2) heavy zinc coating(260g/m2)
Tips: Hot-dipped galvanized has better corrosion resistance than electro galvanized, because the thickness of zinc coating is thicker.
[ Outter Material ]
PVC: Poly(vinyl chloride), commonly abbreviated PVC, is the third-most widely produced polymer, after polyethylene and polypropylene. It can protect the inner material from corrosion effectively.
2. Specification
Mesh | Hot Dipped | PVC Coated | ||
Wire Dia. (mm) | Weight kg/m² | Wire Dia. before/after | Weight kg/m² | |
1" (25mm) | 2.8 | 3.87 | 2.6/3.2 | 3.7 |
2.4 | 2.9 | 2.0/2.6 | 2.3 | |
2.1 | 2.3 | 1.4/2.0 | 1.2 | |
1.6 | 1.34 | 1.0/1.6 | 0.7 | |
1.5" (40mm) | 3.4 | 3.7 | 3.4/4.0 | 3.9 |
3.0 | 3 | 2.6/3.2 | 2.4 | |
2.8 | 2.4 | 2.0/2.6 | 1.4 | |
2.1 | 1.4 | 1.4/2.0 | 0.8 | |
2" (50mm) | 4.2 | 4.5 | 3.4/4.0 | 3.2 |
3.4 | 2.9 | 2.6/3.2 | 1.9 | |
2.8 | 1.9 | 2.0/2.6 | 1.2 | |
2.1 | 1.2 | 1.4/2.0 | 0.6 | |
2.25" (56mm) | 4.2 | 3.9 | 3.4/4.0 | 2.8 |
3.4 | 2.6 | 2.6/3.2 | 1.7 | |
2.8 | 1.7 | 2.0/2.6 | 1.0 | |
2.1 | 1.0 | 1.4/2.0 | 0.55 | |
2.4" (60mm) | 4.2 | 3.7 | 3.4/4.0 | 2.6 |
3.4 | 2.5 | 2.6/3.2 | 1.6 | |
2.8 | 1.63 | 2.0/2.6 | 1.0 | |
2.1 | 1.00 | 1.4/2.0 | 0.48 | |
2.5" (64mm) | 4.2 | 3.5 | 3.4/4.0 | 2.5 |
3.4 | 2.3 | 2.6/3.2 | 1.5 | |
2.8 | 1.6 | 2.0/2.6 | 0.9 | |
2.1 | 0.9 | / | / | |
3" (76mm) | 4.2 | 3.00 | 4.4/5.0 | 3.4 |
3.4 | 2.00 | 3.4/4.0 | 2.1 | |
2.8 | 1.3 | 2.6/3.2 | 1.3 | |
2.1 | 0.8 | / | / | |
[ Edge ]
Selvage KxK: Knuckle x Knuckle
Selvage BxB(TxT): Barb x Barb(Twist x Twist)
Selvage KxB(KxT): Knuckle x Barb(Knuckle x Twist)
[ Production ]

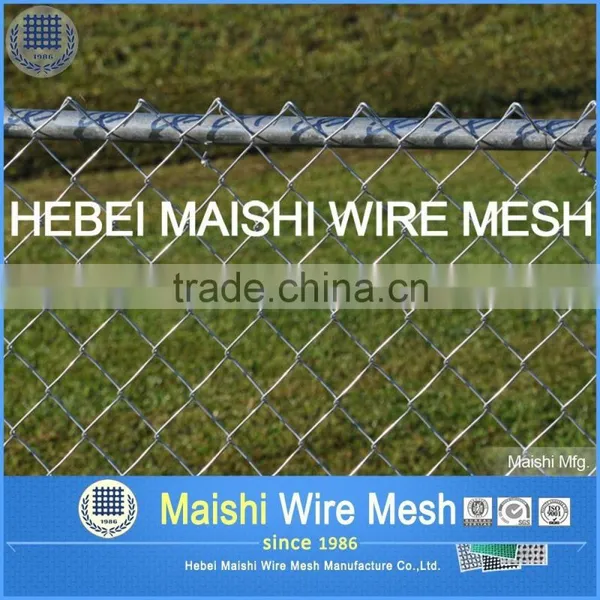

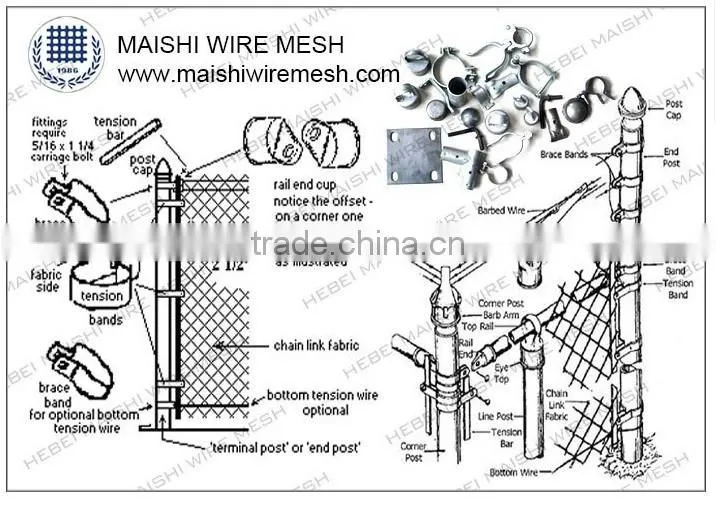

A chain-link fence (also referred to as wire netting, wire-mesh fence, chain-wire fence, cyclone fence, hurricane fence, or diamond-mesh fence) is a type of woven fence usually made from galvanized or LDPE-coated steel wire. The wires run vertically and are bent into a zig-zag pattern so that each "zig" hooks with the wire immediately on one side and each "zag" with the wire immediately on the other. This forms the characteristic diamond pattern seen in this type of fence.

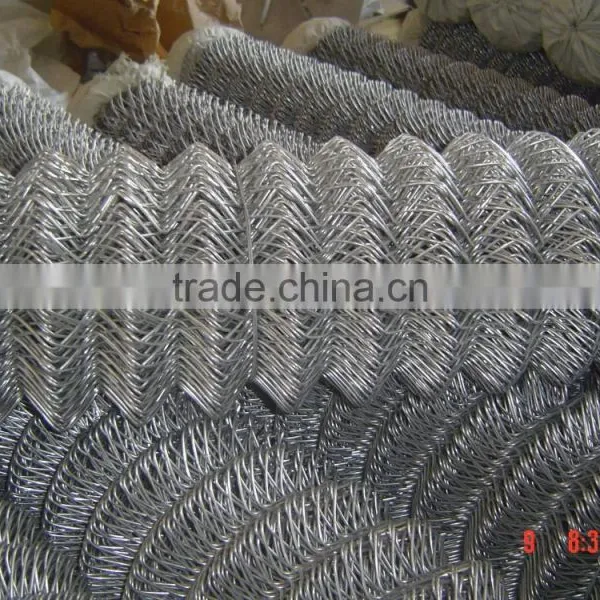

Chain Link Fencing Mesh
MOQ:50rolls
Payment term:30%T/T in advance and balance against of B/L copy within 5days.

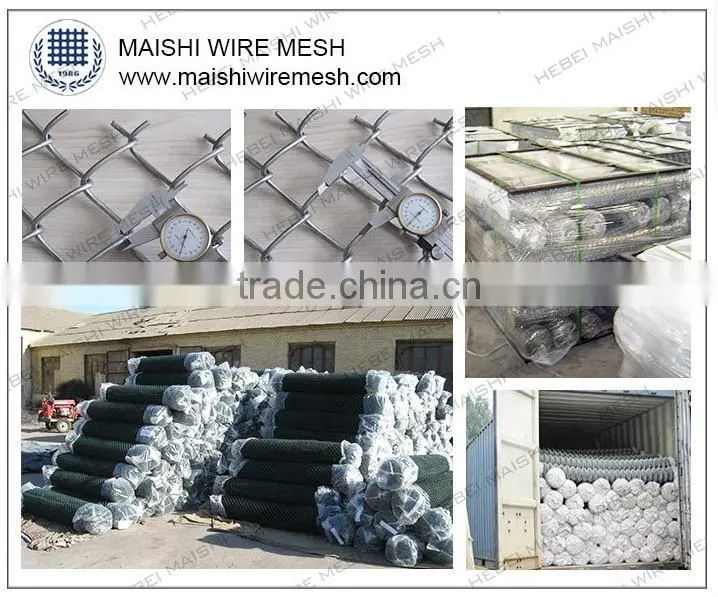

Packing:pvc woven cloth on both ennds, custome packing available at request
Detailed Description of our comapny
1) Export
We have more than 29 years of export experience, we have exported to more than 90 countries and 95% repeat orders.
2)Technology
The machinery and apparatus used in production process fully based on the high computer technology, so it isaccepted as the only company capable of having TSE (Chinese Standard Institution ) certificate.
3)Our service
1.Customized service is also available for us. We can customize products according to your requirements.
2.including design and drawing.
3. Choose the cheapest and safest shipping company.
4. Track the order until you get the goods.
5.Please feel free to contact us.
Q:Can we get samples before buying?
A:Yes, we're pleased to offer you samples for your testing freely2m each sizes. Maishi trust our quality can be satisfied.
Q:I am a small wholesaler, do you accept small order?
A: Small order is no problem, we'd like to grow up with you together.
Q: How can you guarantee for quality and delivery time?
A: For delivery time, we usually have stocks from 500-10000m for common size. So, we can ship the goods in time to our customers.
We can guarantee our customers if the mesh has problems, they can return back to us; We'll ship replacement mesh free cost with next orders.
